Multi-Remote Control System: Schematic

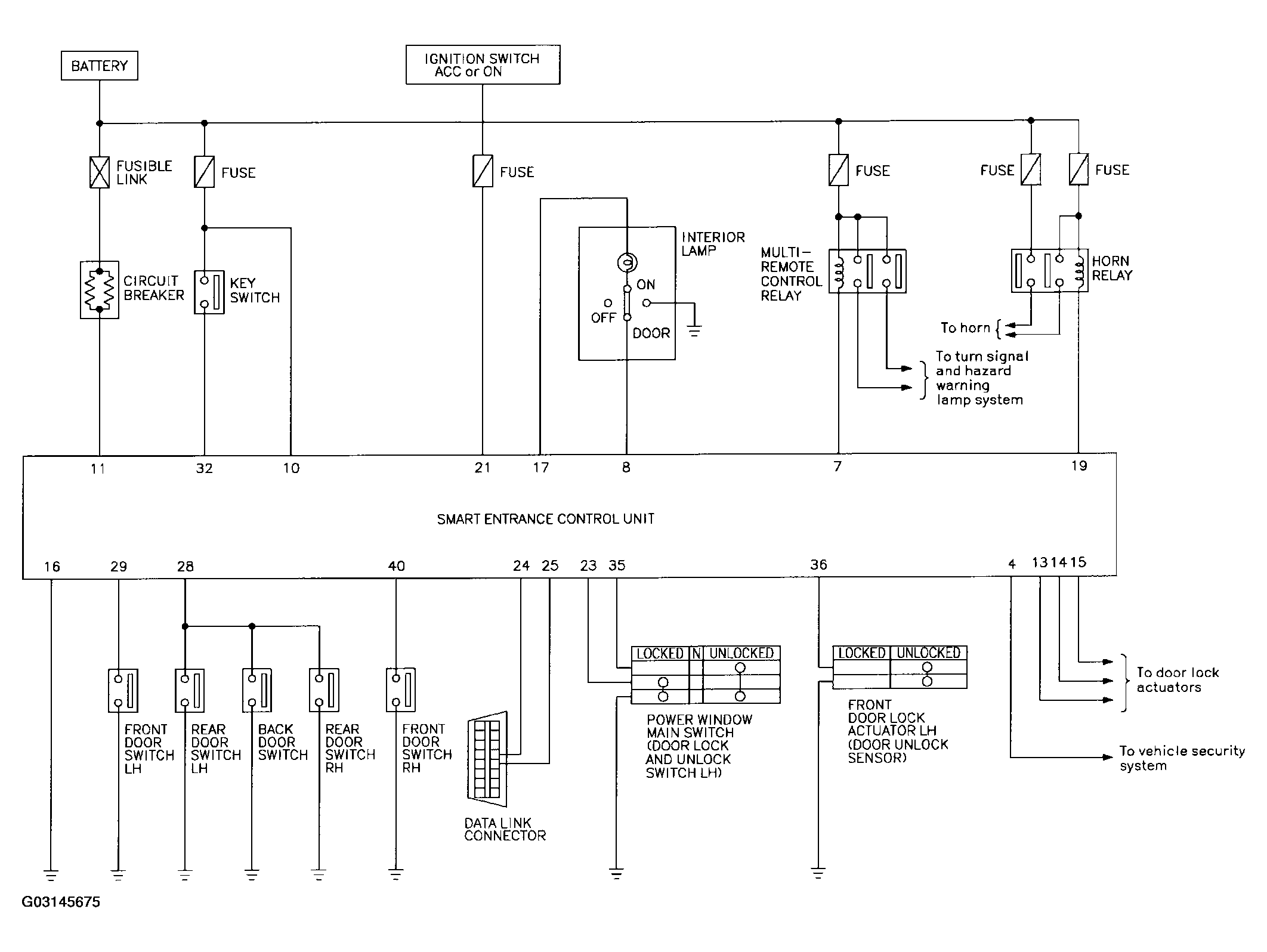

Fig 1: Multi-Remote Control System Schematic Diagram

G03145675
