Coil Spring and Strut Assembly: Assembly

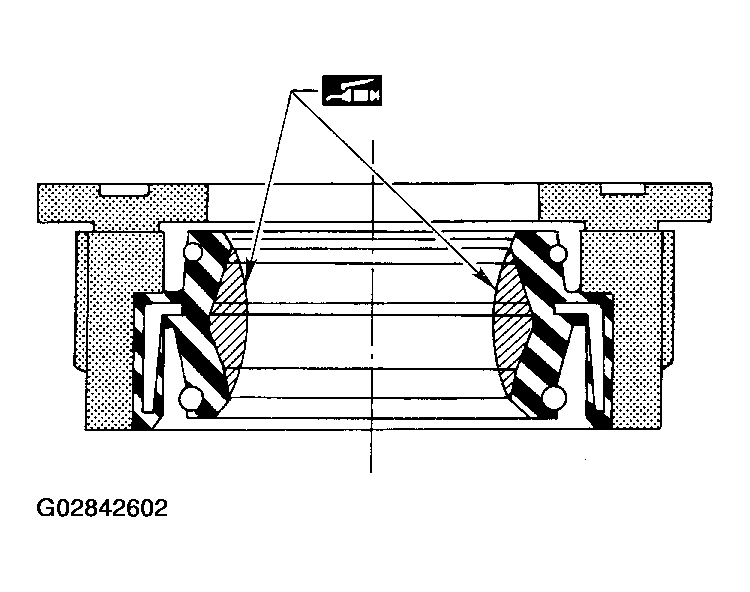

• Lubricate sealing lip of gland packing.
  Fig 1: Lubricating Sealing Lip

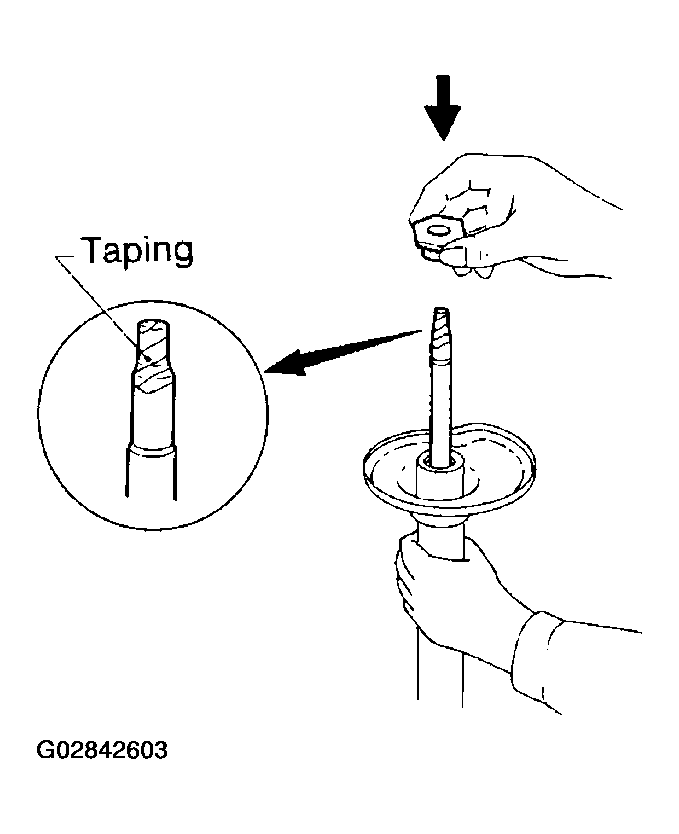

• Install gland packing.

  Cover piston rod with tape so as not to damage oil sealing lip.

  Fig 2: Installing Gland Packing

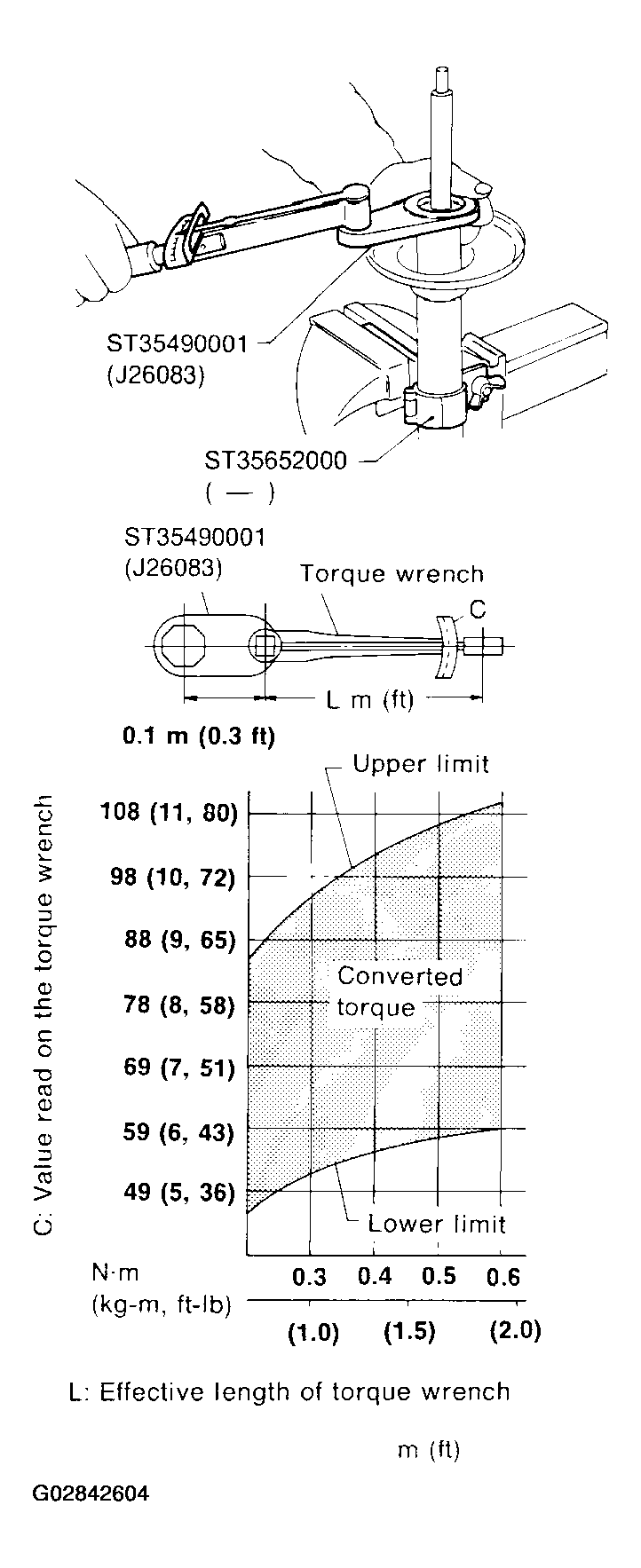

• Tighten gland packing to the specified torque (refer to chart at left) with Tool.
  Fig 3: Tightening Gland Packing

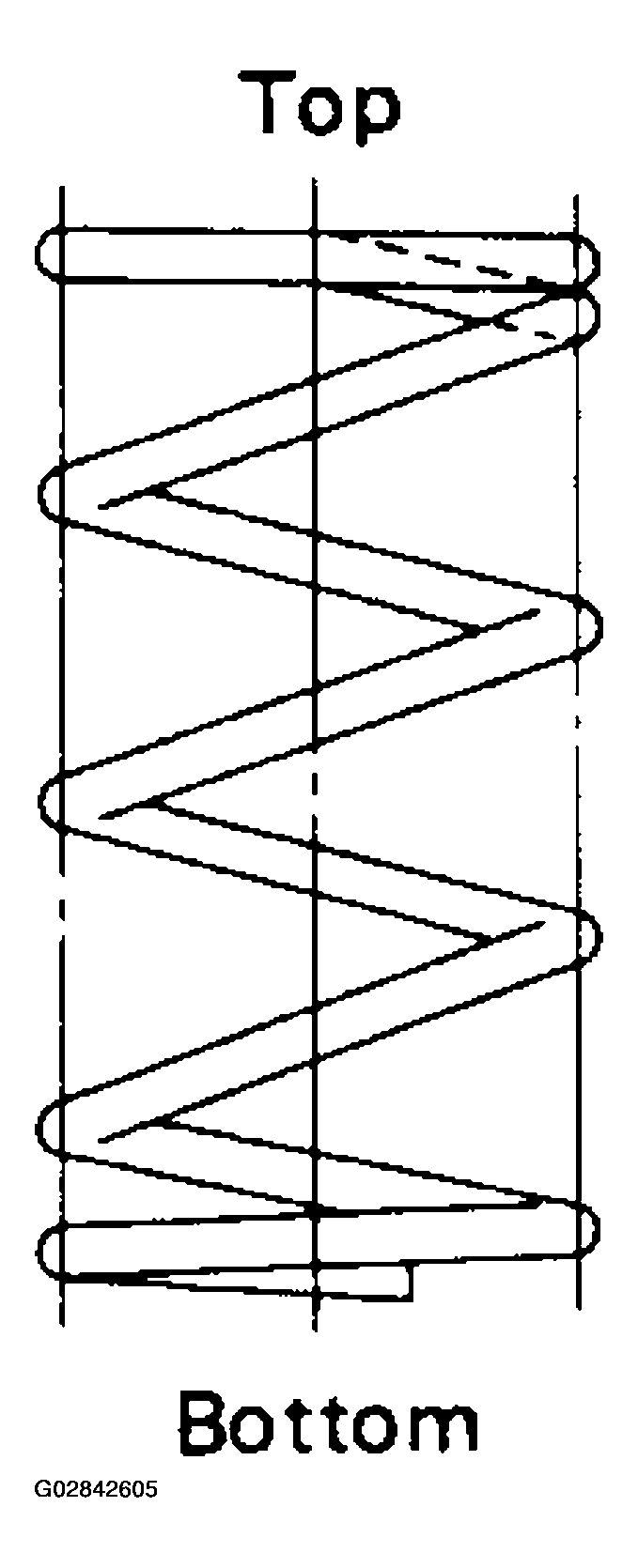

• When installing coil spring, be careful not to reverse top and bottom direction. (Top end is flat.)
  Fig 4: Installing Coil Spring

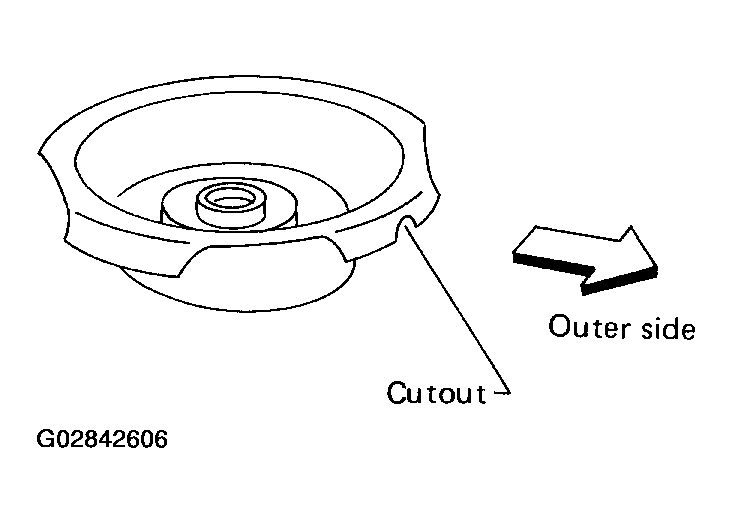

• Install upper spring seat with its cutout facing the outer side of vehicle.
  Fig 5: Installing Upper Spring Seat

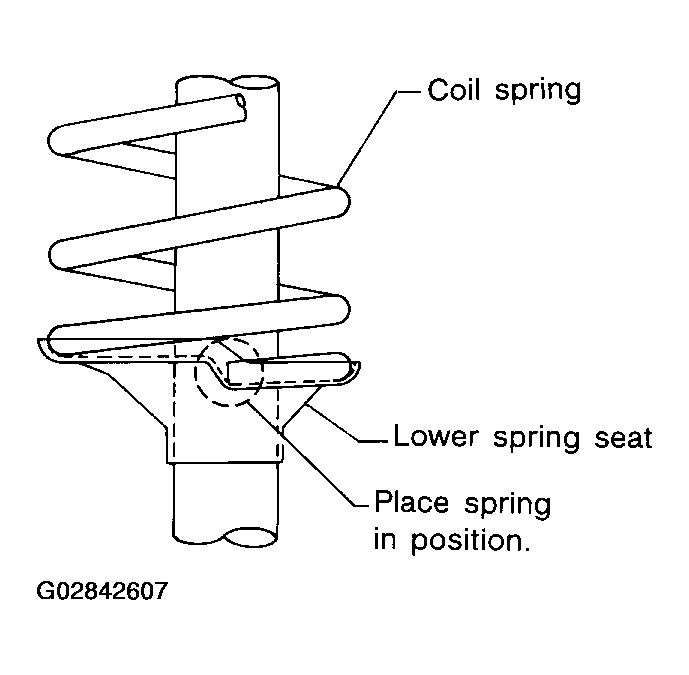

After placing spring in position on lower spring seat, release spring compressor gradually.

Fig 6: Releasing Spring
