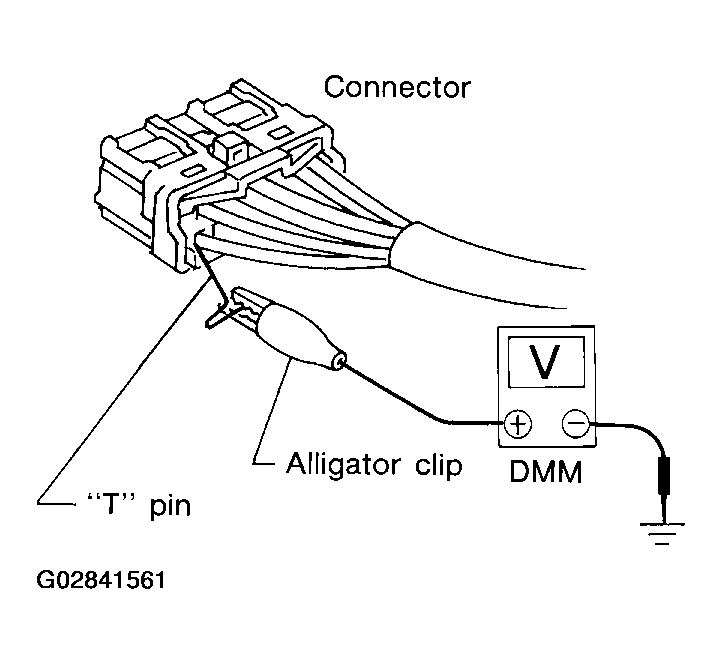

Probing From Harness Side
Standard type (not waterproof type) connector should be probed from harness side with "T" pin.
- If the connector has a rear cover such as a ECM connector, remove the rear cover before probing the terminal.
- Do not probe waterproof connector from harness side. Damage to the seal between wire and connector may result.
