Diagnosis - Re4R03
>>
Component Locations
Component Locations
Fig 1: Locating Revolution Sensor & Turbine Revolution Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Locating Transmission Undercar Harness Connections
Courtesy of NISSAN MOTOR CO., U.S.A

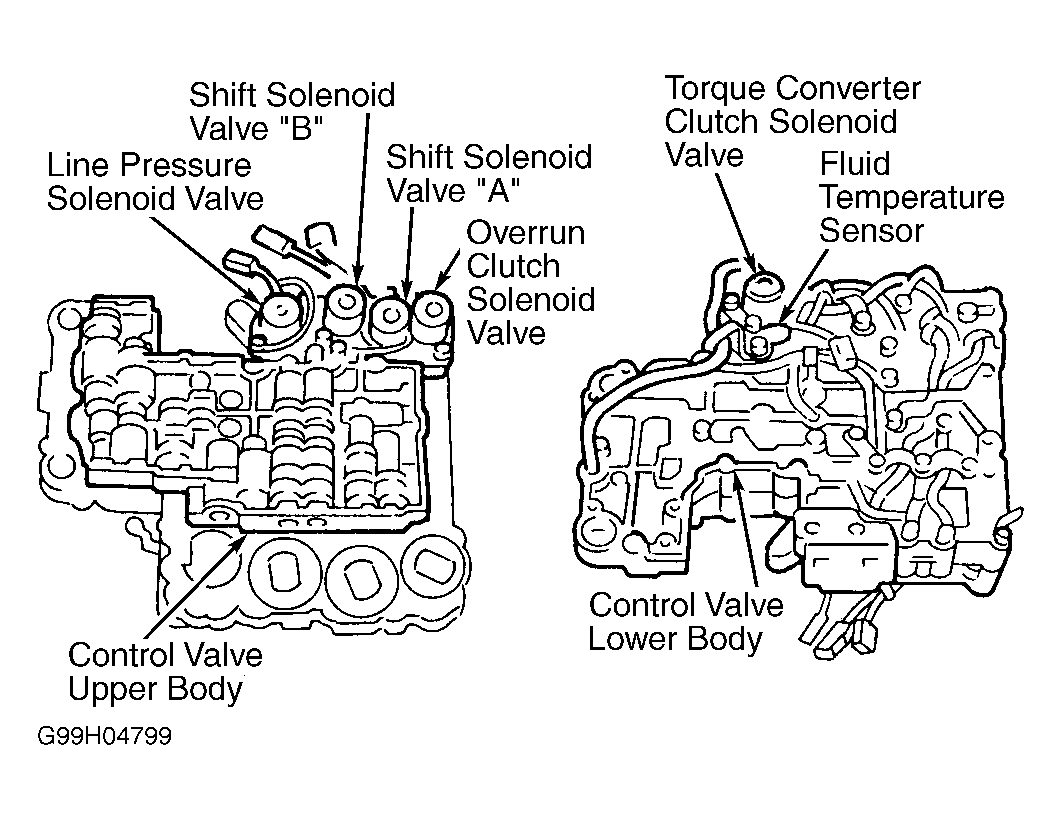

Fig 3: Identifying Transmission Internal Harness Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Locating Transmission Control Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
