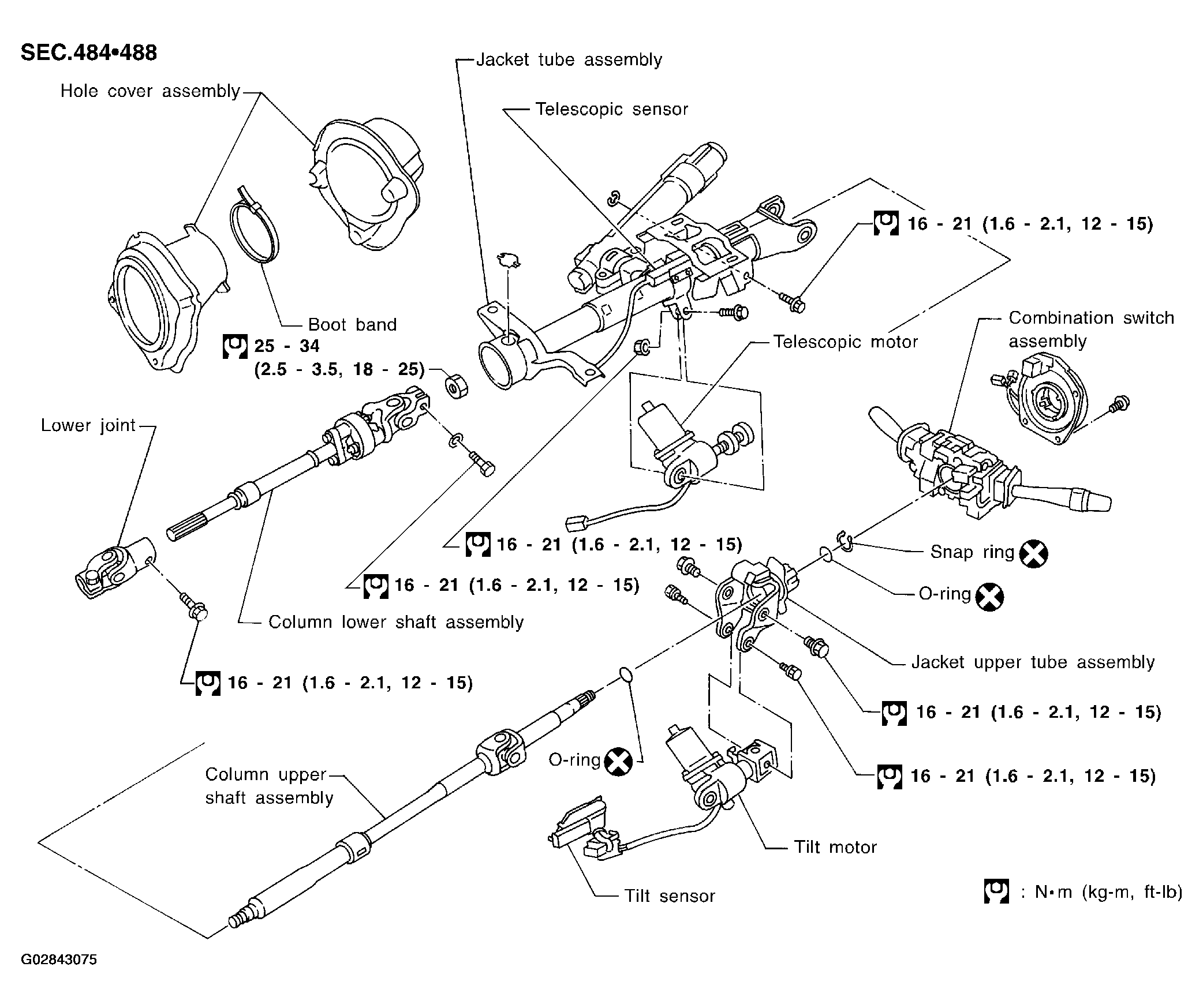

Disassembly and Assembly
- When disassembling and assembling, unlock steering lock with key.
- Install O-rings (1) before inserting shaft into jacket tube. Ensure that rounded surface of snap ring faces toward bearing when snap ring is installed.
- Install snap ring on upper shaft.
- Steering lock

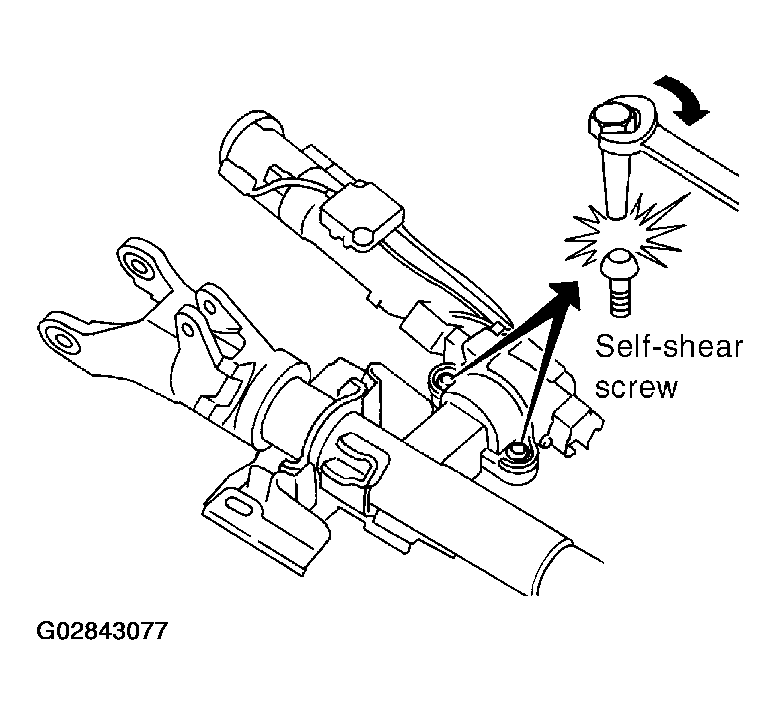

- Break self-shear type screws with a drill or other appropriate tool.
- Install new self-shear type screws and then cut off self-shear type screw heads.
- After installing steering column, check tilt mechanism operation.
