Power Steering Gear And Linkage: Assembly

  1. Using a heat gun, heat new teflon rack seal ring to approximately 40°C (104°F). Then place it onto rack.
    Fig 1: Heating Teflon Rack Seal Ring
    G02843094
    • Using Tool, compress rack seal ring securely on rack.

    Always insert the tool from the rack gear side.

    Fig 2: Compressing Rack Seal Ring
    G02843095
  2. Insert rack oil seal.
    • Place plastic film into rack oil seal to prevent damage by rack teeth.
    • Always remove plastic film after rack oil seal is positioned properly.
    • Make sure lips of rack oil seal face each other.
      Fig 3: Inserting Rack Oil Seal
      G02843096
  3. Install center bushing and rack oil seal with rack assembly.
    Fig 4: Installing Center Bushing And Rack Oil Seal
    G02843097
  4. Insert rack oil seal and end cover assembly to rack then tighten end cover assembly.
    Fig 5: Inserting Rack Oil Seal And End Cover Assembly
    G02843098
  5. Fasten cylinder end cover assembly to gear housing by staking.
    Fig 6: Fastening Cylinder End Cover Assembly
    G02843099
  6. Set rack gear in neutral position.

    Rack Stroke "S": Refer to  SERVICE DATA AND SPECIFICATIONS (SDS)  .

    Fig 7: Setting Rack Gear In Neutral Position
    G02843100
  7. Coat seal lip of new pinion oil seal with multi-purpose grease. Install it into pinion housing of gear with a suitable tool.
    • Make sure lip of oil seal faces up when installed.
    • Fig 8: Installing Seal Lip Into Pinion Housing Of Gear
      G02843101
  8. Install pinion bearing adjusting shim(s).
    • Whenever pinion assembly, gear housing and rear housing are disassembled, replace shim(s) with new ones. Always use the same number of shim(s) when replacing.
    • Fig 9: Pinion Bearing Adjusting Shim(s)
      G02843102
  9. Install pinion seal ring on pinion gear assembly.
    • Using a heat gun, heat pinion seal ring to approximately 40°C (104°F) before installing it onto pinion gear assembly.
    • Make sure pinion seal ring is properly settled in valve groove.
    • Fig 10: Pinion Seal Ring On Pinion Gear Assembly
      G02843103
  10. Apply a coat of multi-purpose grease to needle bearing roller and oil seal lip.
    Fig 11: Needle Bearing Roller
    G02843104
  11. Install pinion assembly to pinion housing.

    Be careful not to damage pinion oil seal.

    Fig 12: Installing Pinion Assembly To Pinion Housing
    G02843105
  12. Apply a coat of multi-purpose grease to rear oil seal lip before installing rear housing.

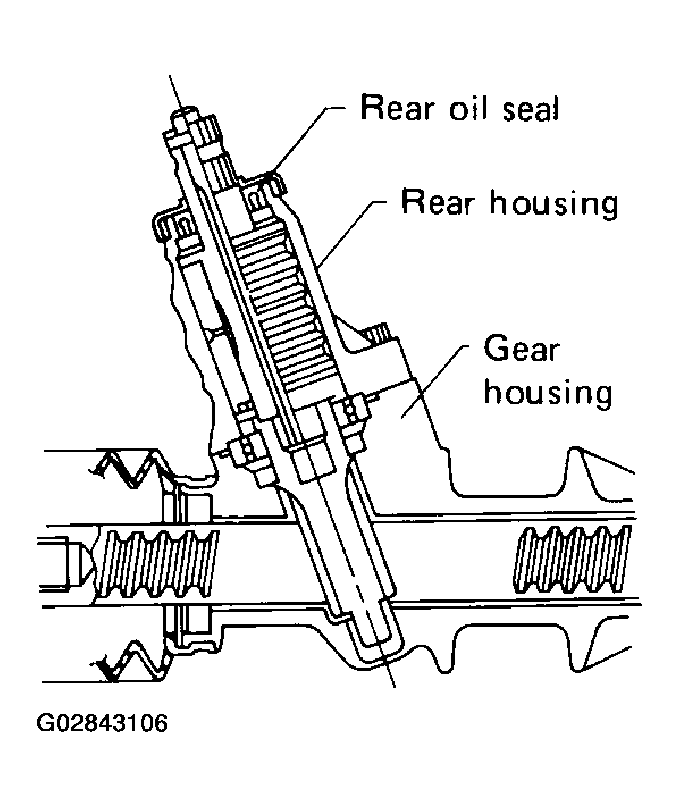

    Fig 13: Rear Housing
    G02843106
  13. Ensure that the rack is centered. Install rear cover cap so that protrusion of rear housing cover is positioned as shown in figure.

    Be careful not to damage worm ring and oil seal.

    Fig 14: Positioning Rack
    G02843107
  14. Install solenoid valve.
    Fig 15: Solenoid Valve
    G02843108
  15. Install diaphragm spring at retainer.
    • Always install retainer, spring washer and diaphragm spring in that order.
    • Make sure convex end (painted white) of diaphragm spring faces outward when installing.
  16. Install retainer spring and adjusting screw temporarily.
    Fig 16: Diaphragm Spring At Retainer
    G02843109
    CAUTION: Ensure steering gear spacer is installed with rubber side facing rack.
    • Attach lock plate (2) to side rod inner socket (1).
    • Insert steering gear spacer (5) to rack (4).
    • Apply locking sealant to inner socket threads (3).

      Screw inner socket into rack (4) and tighten to specified torque.

    • Stake lock plate at two places.
      Fig 17: Staking Lock Plate At Two Places
      G02843110
  17. Install steering gear spacer (5) to lock plate (2).
    Fig 18: Steering Gear Spacer To Lock Plate
    G02843111
  18. Tighten outer socket lock nut.

    Tie-Rod Length "L": Refer to  SERVICE DATA AND SPECIFICATIONS (SDS)  .

    Fig 19: Measuring Tie-Rod Length
    G02843112
  19. Measure rack stroke.

    Rack Stroke "S": Refer to  SERVICE DATA AND SPECIFICATIONS (SDS)  .

    Fig 20: Measuring Rack Stroke
    G02843113
  20. Before installing boot, coat the contact surfaces between boot and tie-rod with grease.
    Fig 21: Coating Contact Surfaces Between Boot And Tie-Rod With Grease
    G02843114
  21. Install boot clamps.
    • To install, wrap boot clamp around boot groove twice. To tighten clamp, place a screwdriver through both rings. Twist rings 4 to 4-1/2 turns while pulling with a force of approx. 98 N (10 kg, 22 lb).
    • Fig 22: Tightening Clamp
      G02843115
    • Install boot clamp so that it is to the rear of the vehicle when gear housing is attached to the body. (This will prevent interference with other parts.)
    • Fig 23: Installing Boot Clamp
      G02843116
    • Twist boot clamp in the direction shown in Fig 24.
    • Fig 24: Twisting Boot Clamp
      G02843117
    • After twisting boot clamp, bend twisted and diagonally so it does not contact boot.
    • Fig 25: Bending Twisted
      G02843118
