Removal And Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

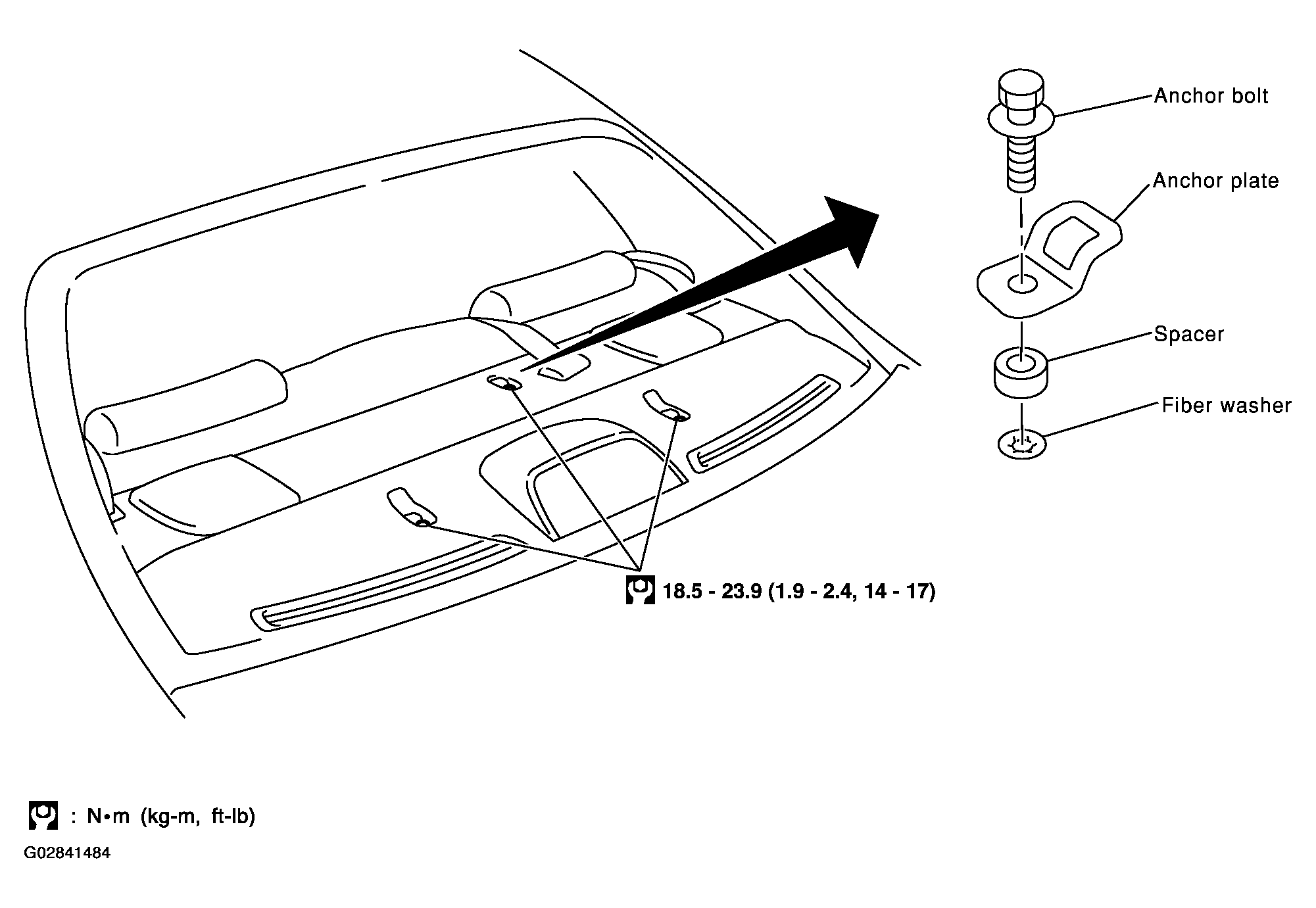

Fig 1: Identifying Anchor Bolts Components
G02841484
  1. Remove tether anchor plate cover.
  2. Remove tether anchor plate.
    NOTE:
    • To install, reverse the removal procedure sequence.
