Wiring Diagram - Charging System

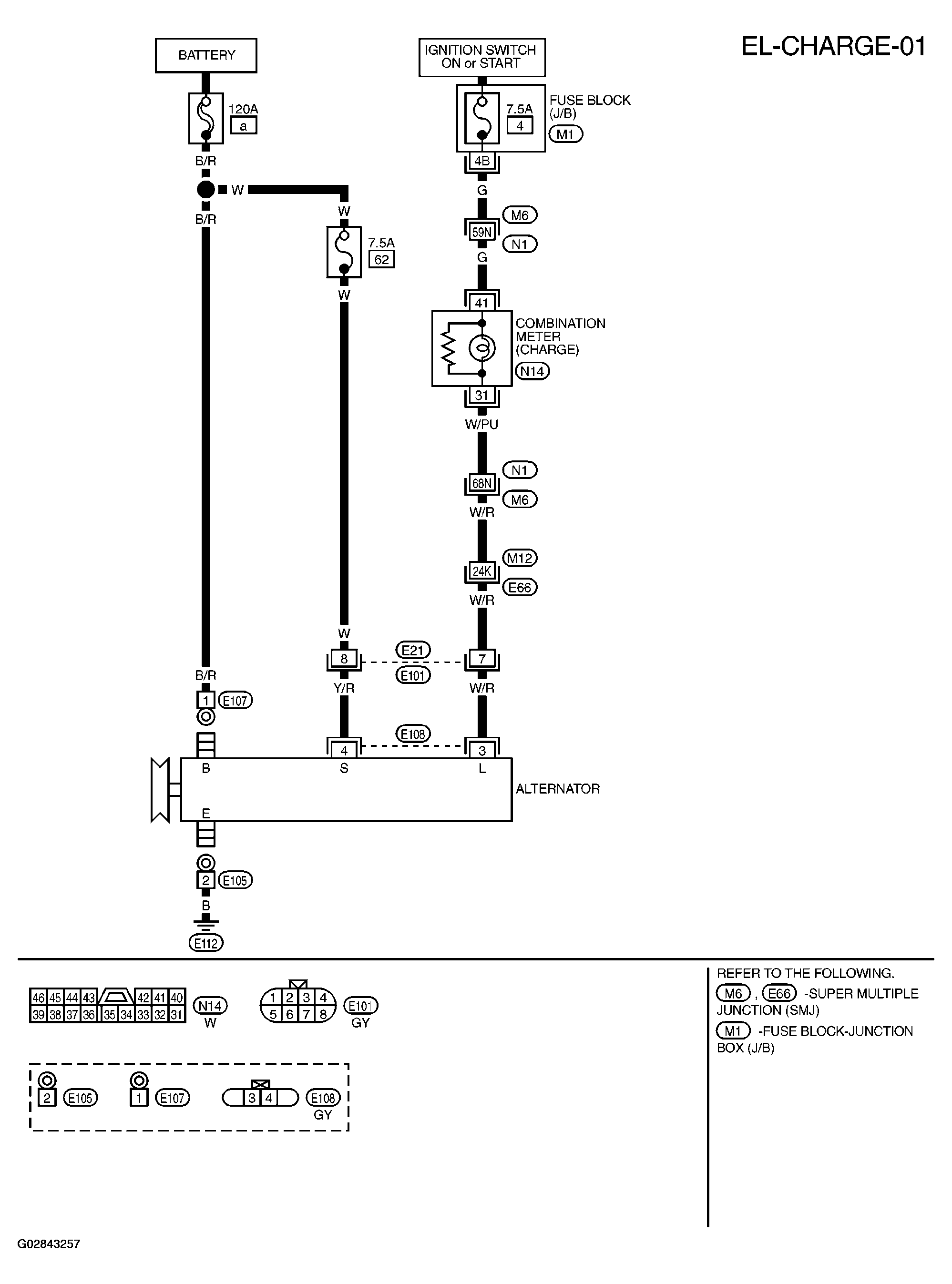

Fig 1: Wiring Diagram - Charging System

G02843257

NOTE: For complete wiring diagram information, see STARTING/CHARGING .
