Rear Wheel Alignment: Toe-In
Measure toe-in using following procedure. If out of specification, inspect and replace any damaged or worn rear suspension parts.
WARNING:
- Always perform following procedure on a flat surface.
- Make sure that no person is in front of the vehicle before pushing it.
- Bounce rear of vehicle up and down to stabilize the posture.
- Push the vehicle straight ahead about 5 m (16 ft).

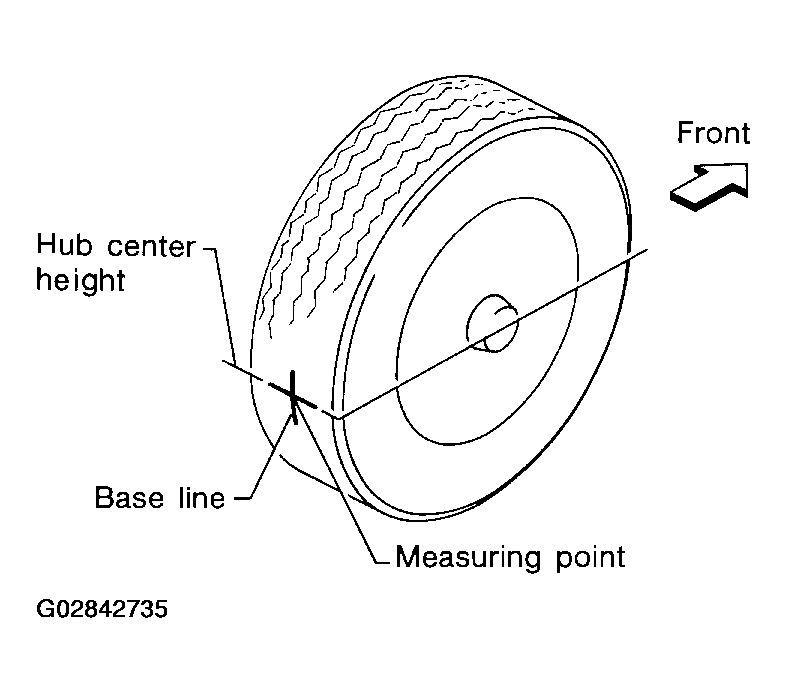

- Put a mark on base line of the tread (rear side) of both tires at the same height of hub center. This mark is a measuring point.

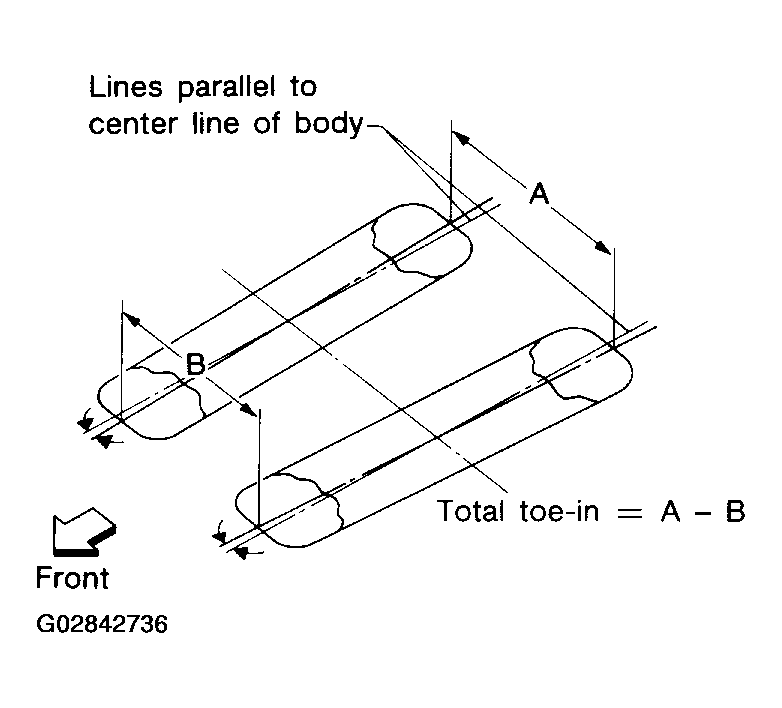

- Measure distance "A" (rear side).
- Push the vehicle slowly ahead to rotate the wheels 180 degrees (1/2 turn).
If the wheels have rotated more than 180 degrees (1/2 turn), try the above procedure again from the beginning. Never push vehicle backward.
- Measure distance "B" (front side).
Total toe-in:
Refer to SDS .

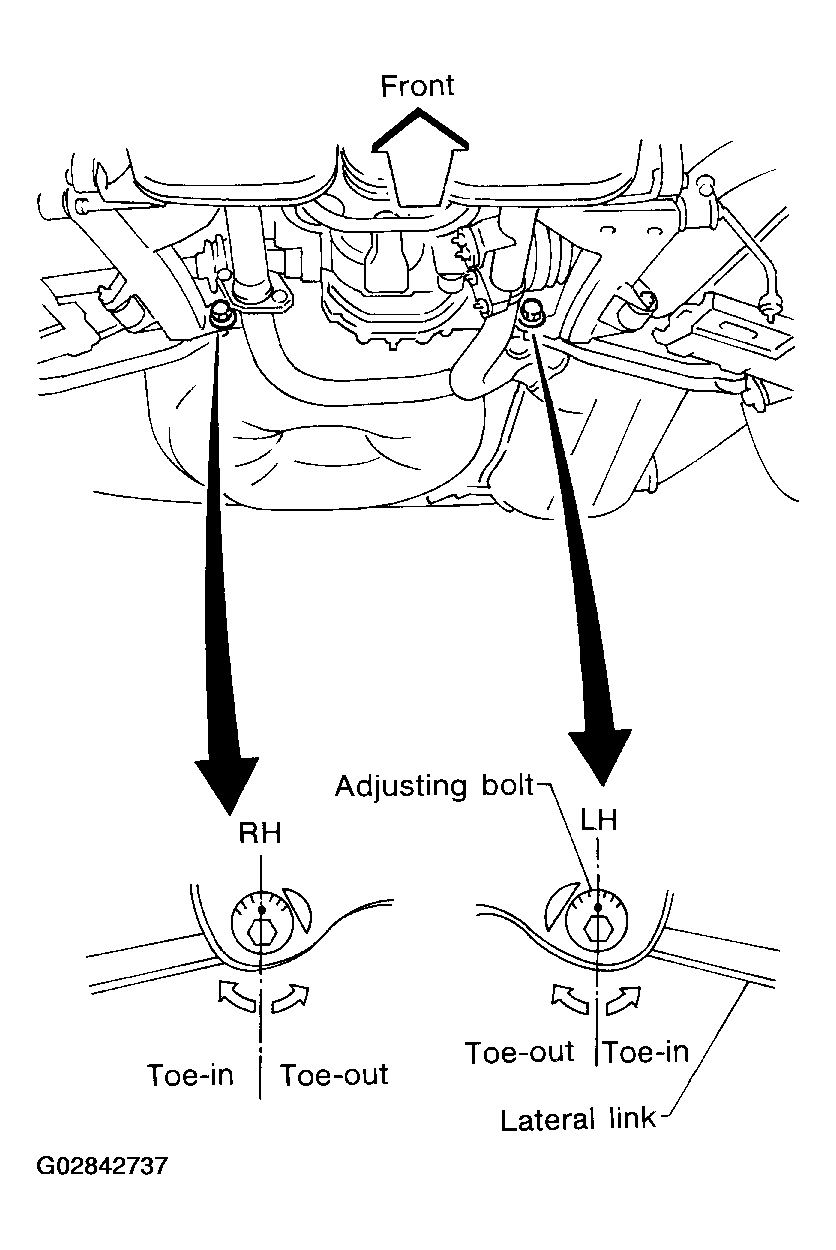

- Adjust toe-in by turning adjusting bolts.
Toe changes about 1.5 mm (0.059 in) [One side] with each graduation of the adjusting bolt.
- Tighten to the specified torque.
69-88 N.m
(7.0 - 9.0 kg-m, 51 - 65 ft.lb)
