Trouble Diagnoses: Wiring Diagram: Notes

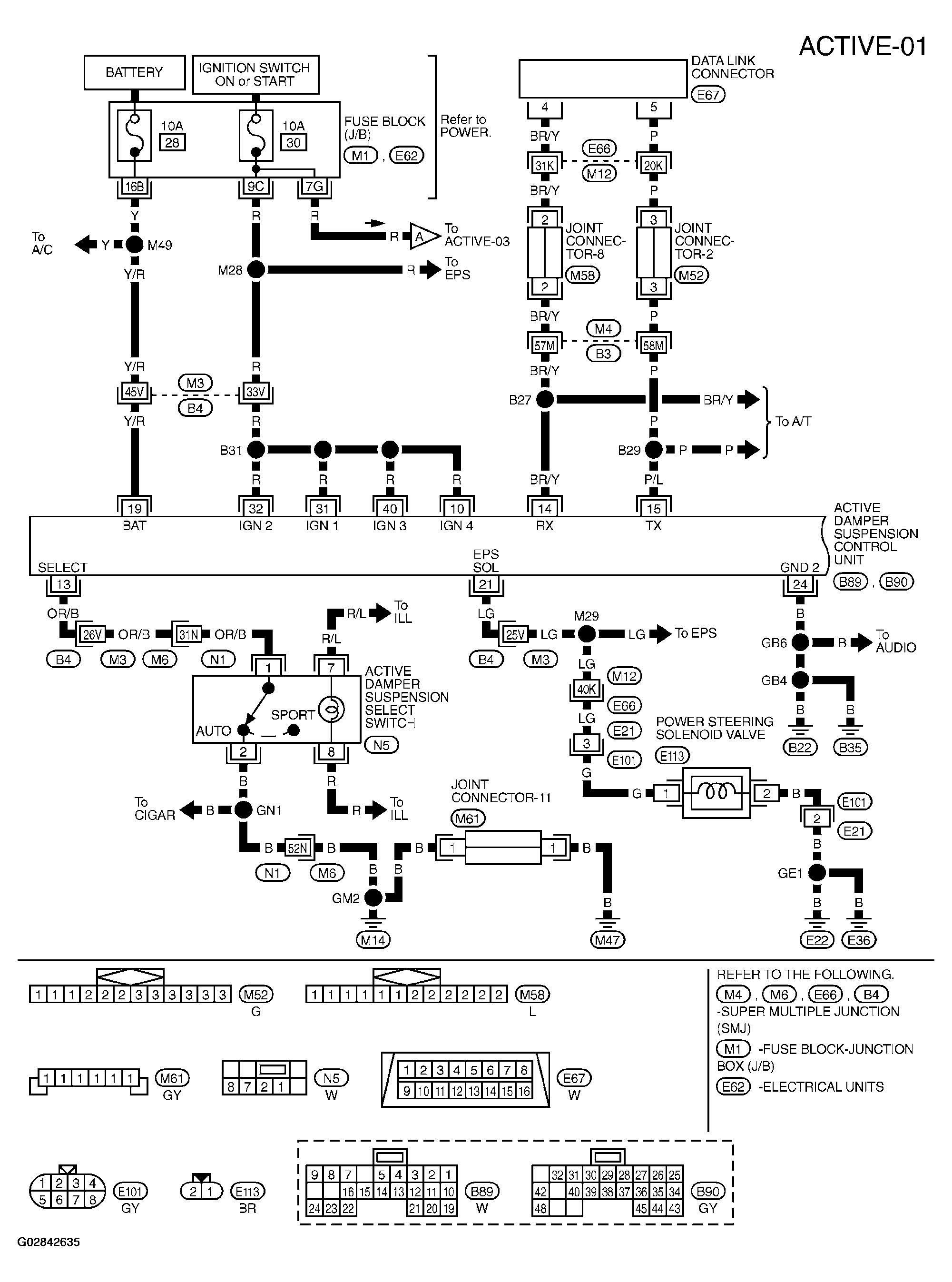

Fig 1: Wiring Diagram - ACTIVE-01

G02842635

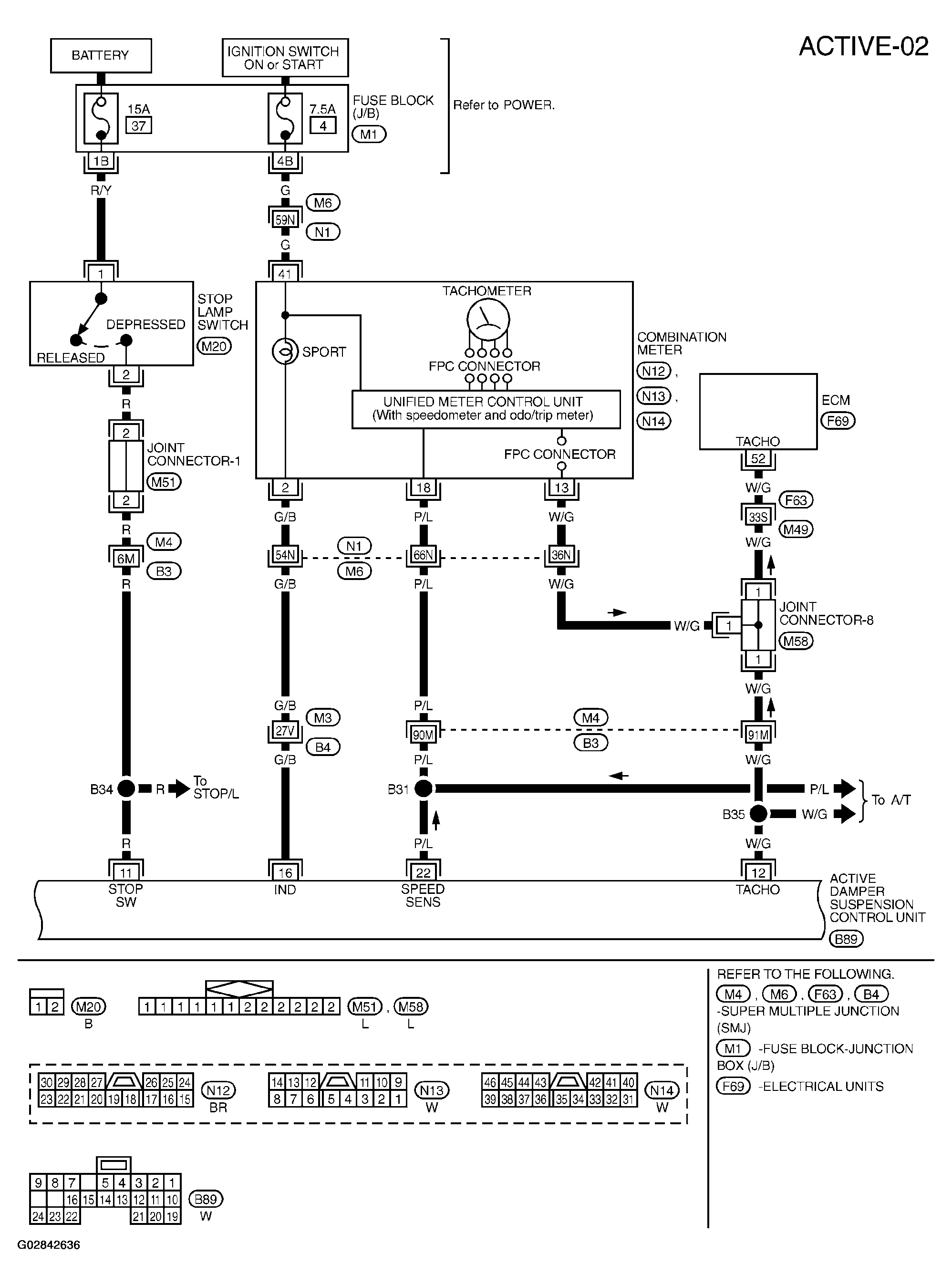

Fig 2: Wiring Diagram - ACTIVE-02

G02842636

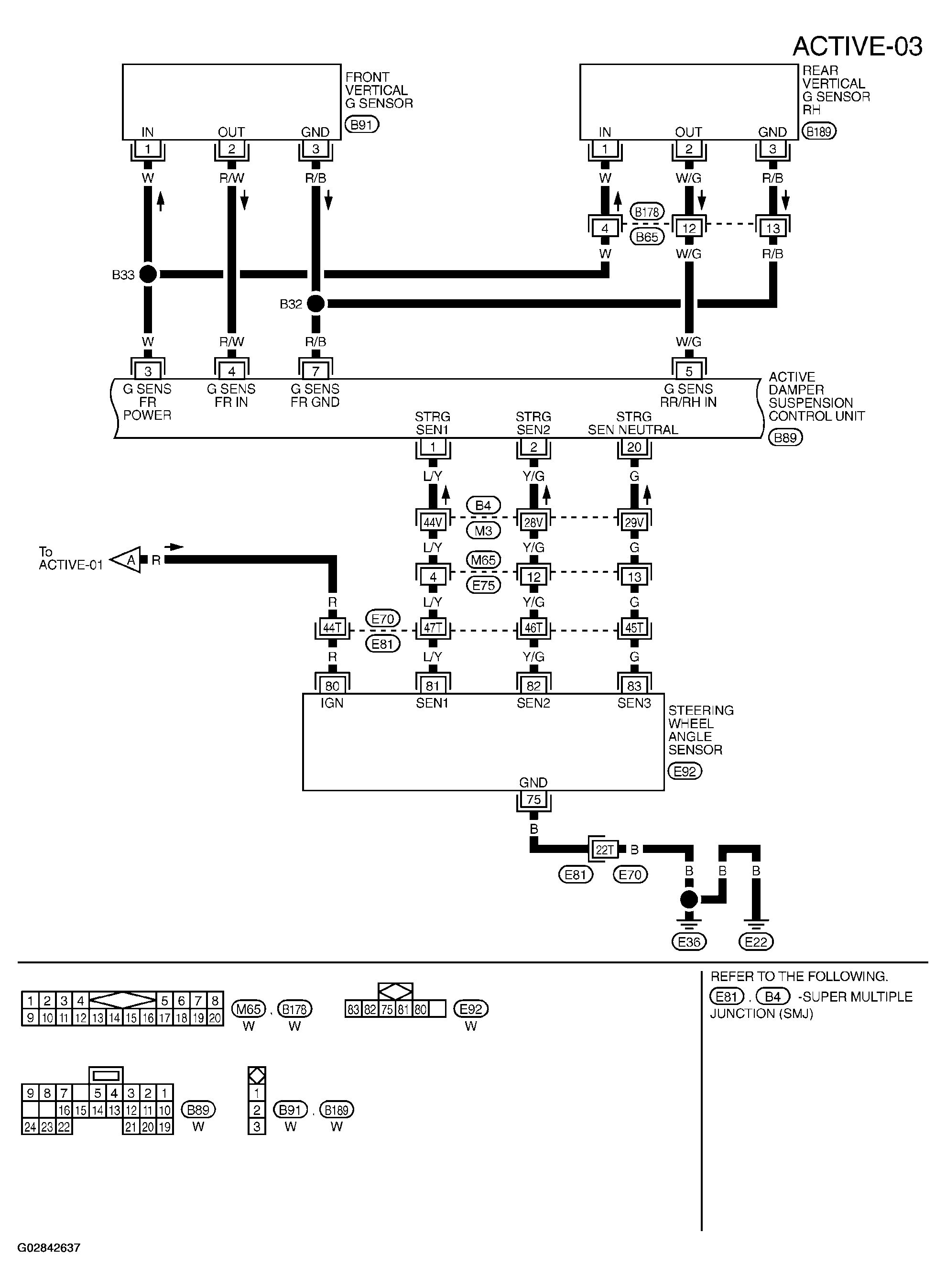

Fig 3: Wiring Diagram - ACTIVE-03

G02842637

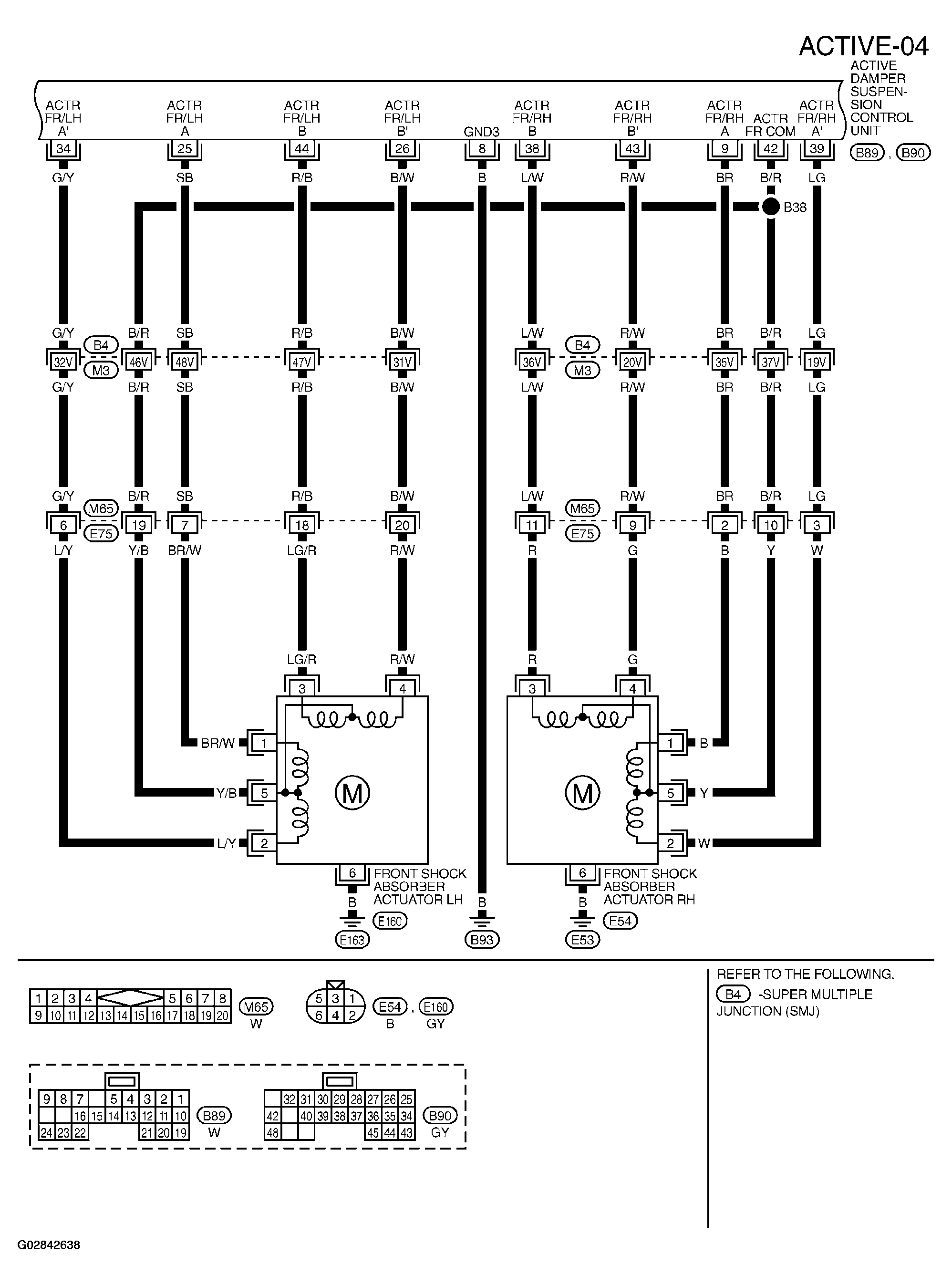

Fig 4: Wiring Diagram - ACTIVE-04

G02842638
