Basic Inspection 2

Check fluid level in reservoir tank.

Use HOT range at fluid temperatures of 50 to 80°C (122 to 176°F) or COLD range at fluid temperatures of 0 to 30°C (32 to 86°F).

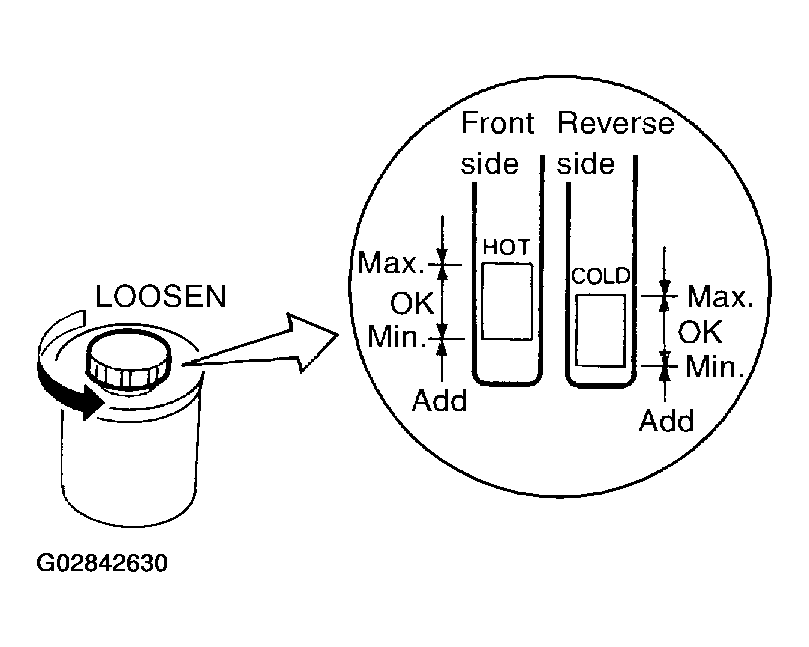

Fig 1: Checking Fluid Level In Reservoir Tank

Check lines for improper attachment, leaks, cracks, damage, loose connections, chafing and deterioration.

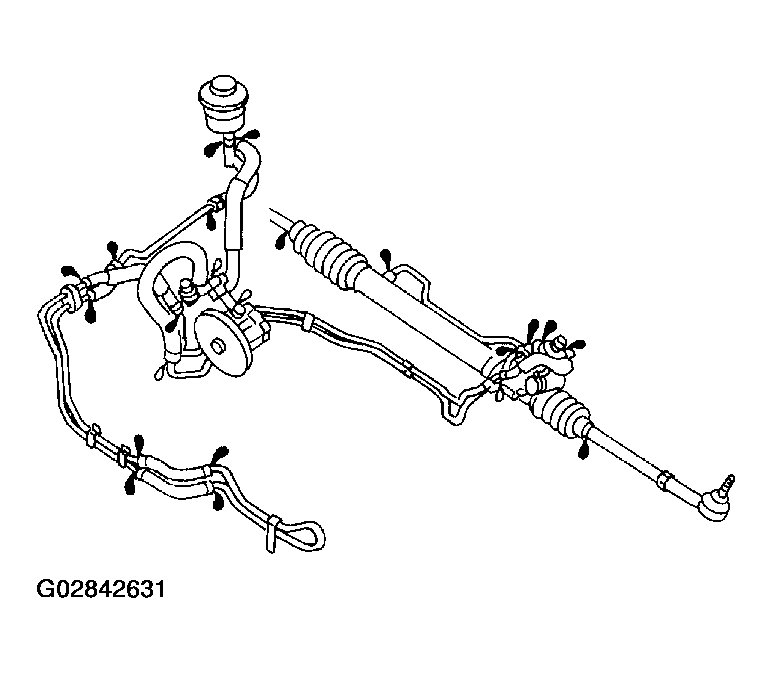

Fig 2: Locating System Leak Areas
