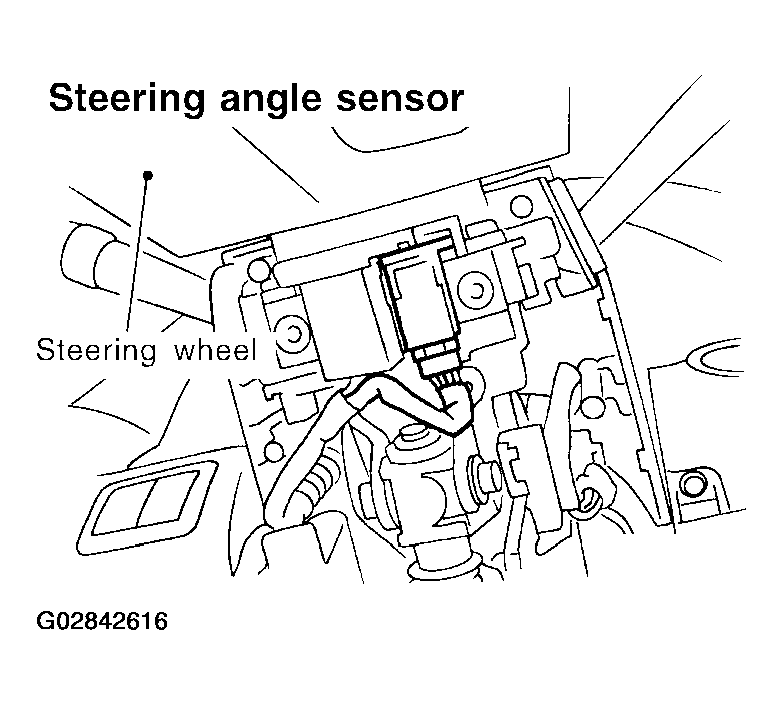

Steering Angle Sensor
Three optical, non-contact type sensors are used to send signals of the steering direction, neutral position, and lock angle to the control unit.

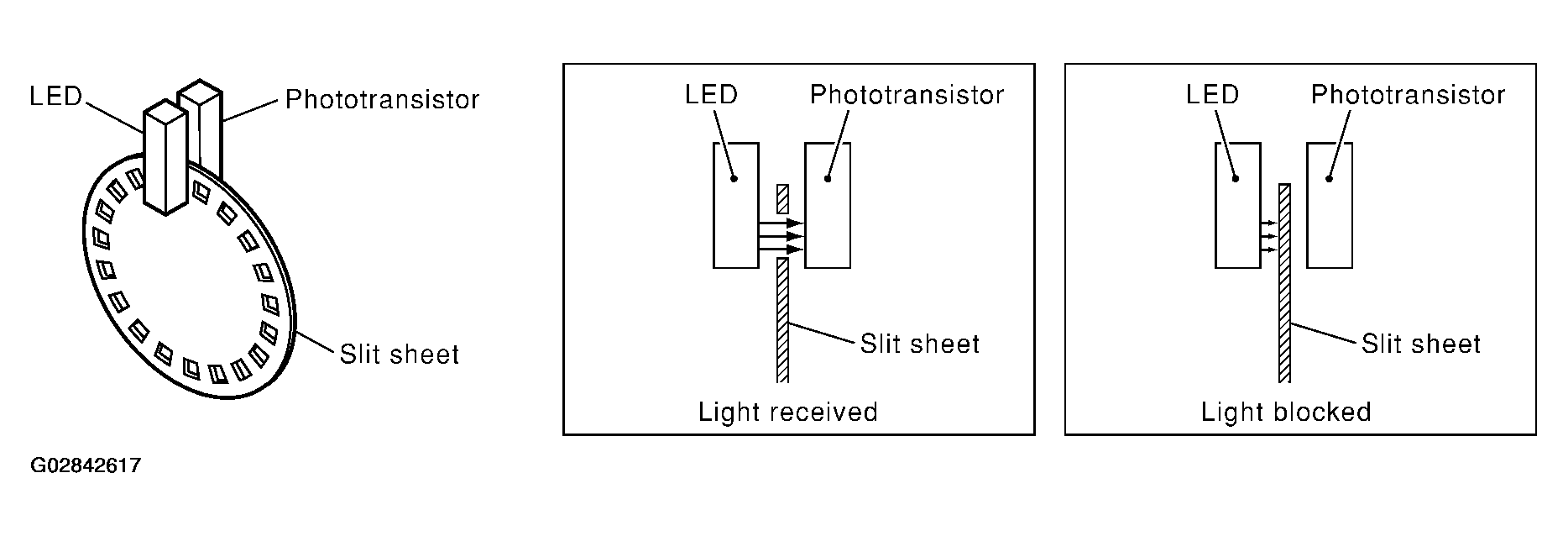

Steering angle sensors consist of LEDs, phototransistors which transform light to electric signals, and slit sheets which rotate with the steering wheel. The sensors receive light through slit sheets which rotate and shade light, turning ON/OFF the phototransistors.
