Front Wheel Bearing

Check that wheel bearings operate smoothly, as well as axial end play and grease leakage.

Axial end play limit: 0.05 mm (0.0020 in) or less

• If out of specification or wheel bearing does not turn smoothly, replace wheel bearing assembly.

  Refer to FRONT AXLE .

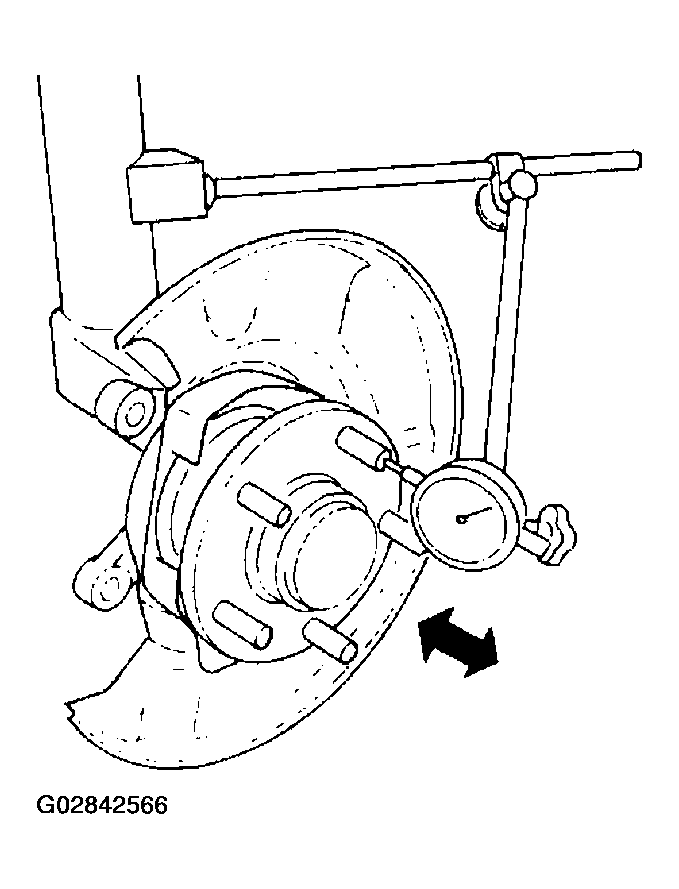

  Fig 1: Checking Axial End Play
