Removal And Installation

Remove brake caliper assembly and rotor.
Brake hose need not be disconnected from brake caliper. Be careful not to depress brake pedal, or piston will pop out. Do not pull or twist brake hose.

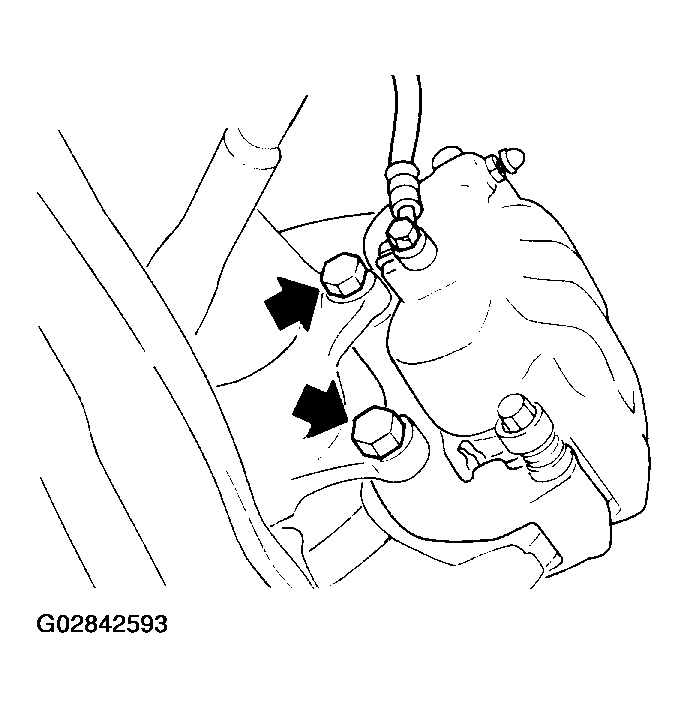

Fig 1: Removing Brake Caliper Assembly
Remove tie-rod ball joint and lower ball joint with Tool.

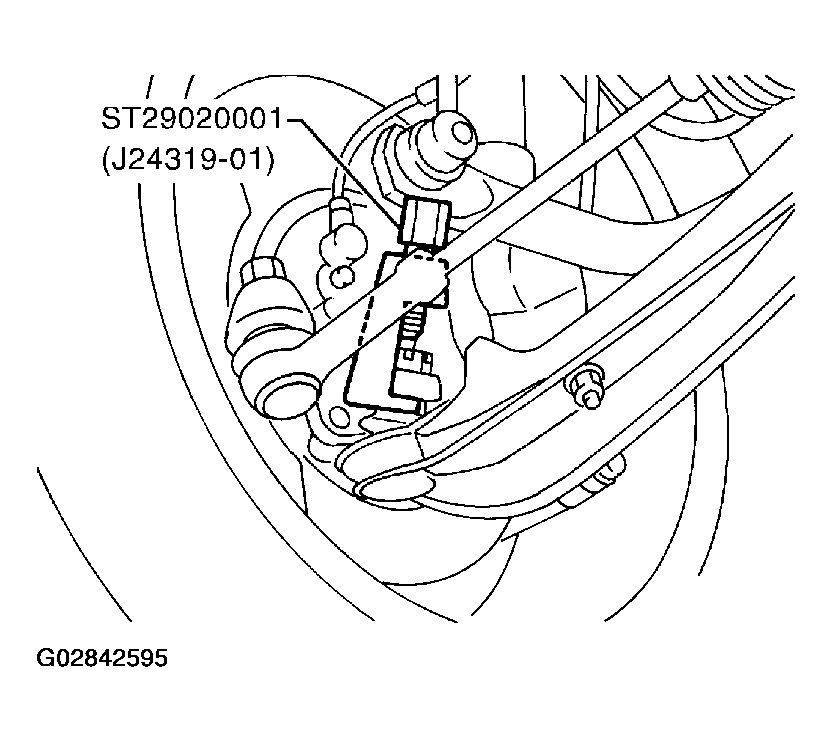

Fig 2: Removing Tie-Rod Ball Joint

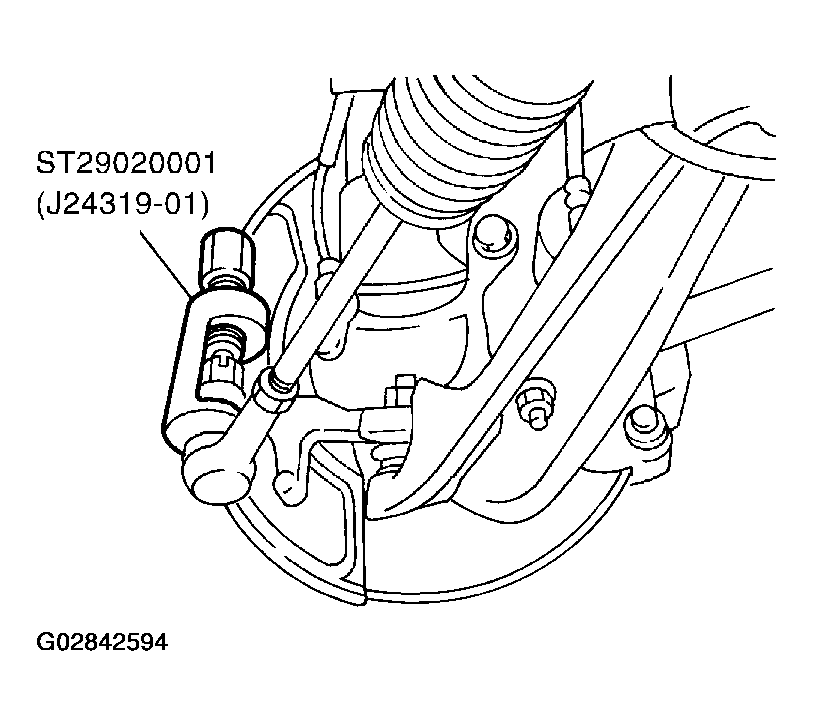

Fig 3: Removing Lower Ball Joint
Remove stabilizer connecting rod upper nut, separate strut assembly and stabilizer connecting rod.
Remove strut assembly upper nuts.

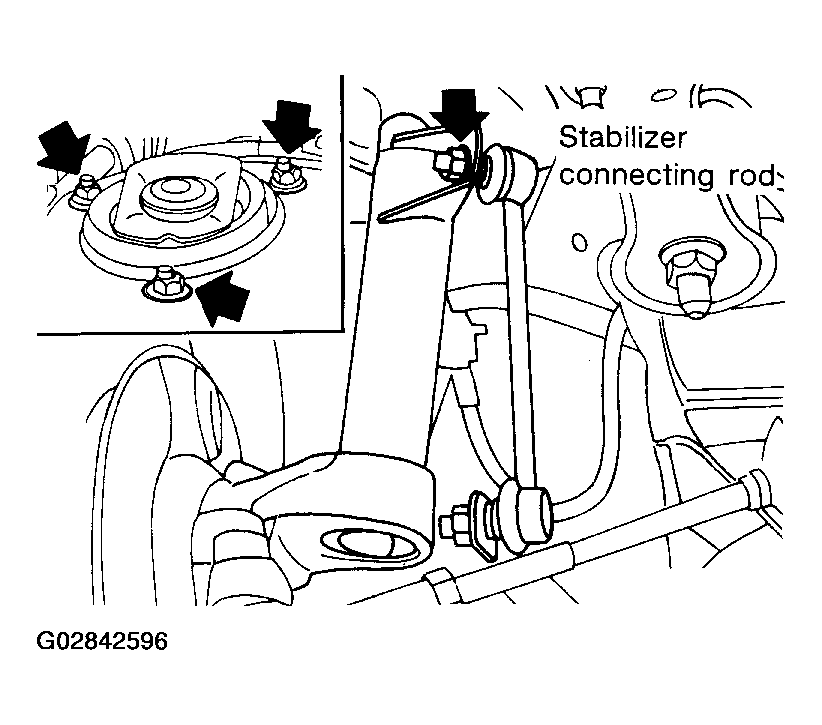

Fig 4: Removing Strut Assembly Upper Nuts
To install, reverse above removal procedures. Installation position of upper end of strut is shown at left.

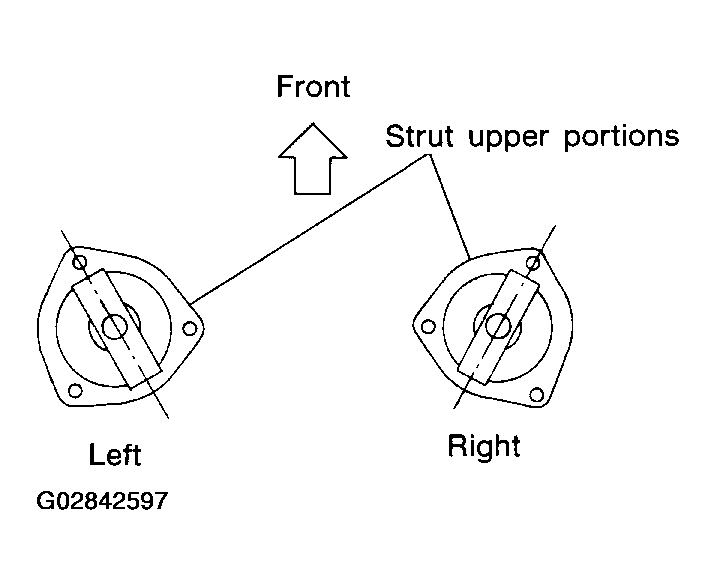

Fig 5: Installing Position Of Upper End Of Strut
