Self-Diagnosis Procedure

Fig 1: Self-Diagnosis Procedure Flow Chart

G02842858

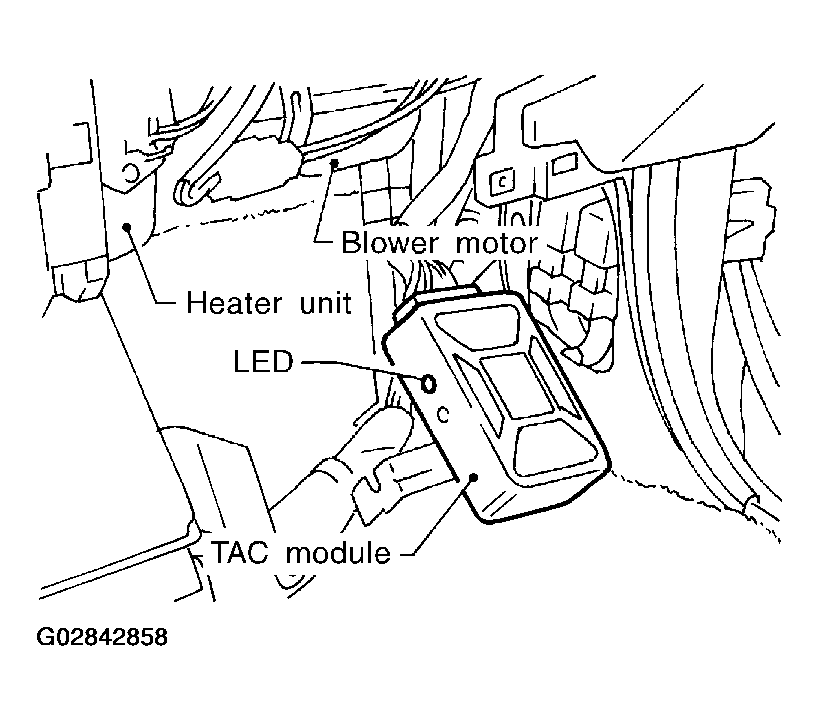

Fig 2: Connecting TAC Module

G02842859

NOTE: Use memory erasure procedures outlined on next page.
