Self-Diagnosis Procedure

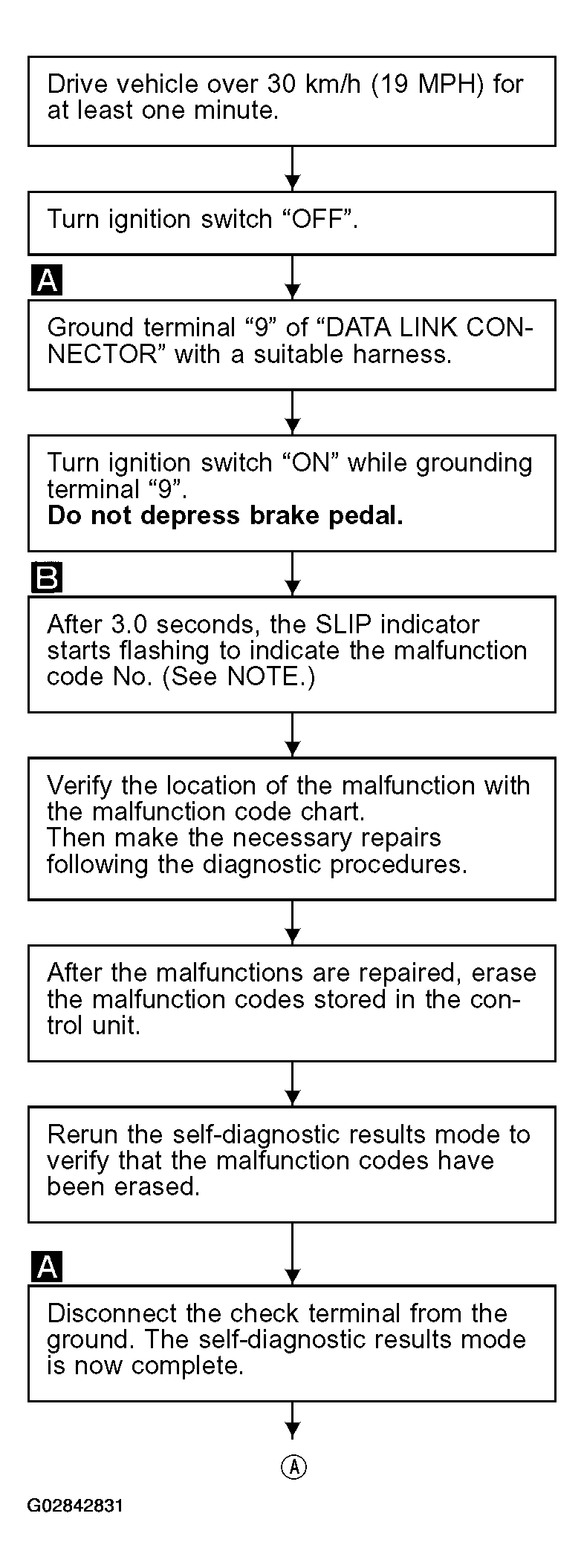

Fig 1: ABS/TCS Control Unit Self-Diagnosis (1 Of 2)

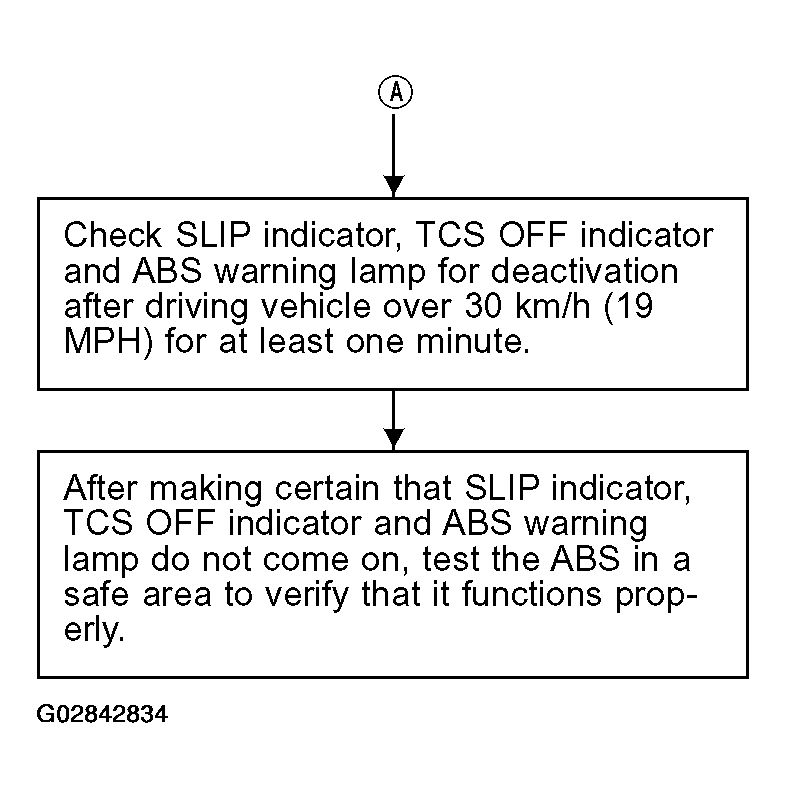

Fig 2: ABS/TCS Control Unit Self-Diagnosis (2 Of 2)

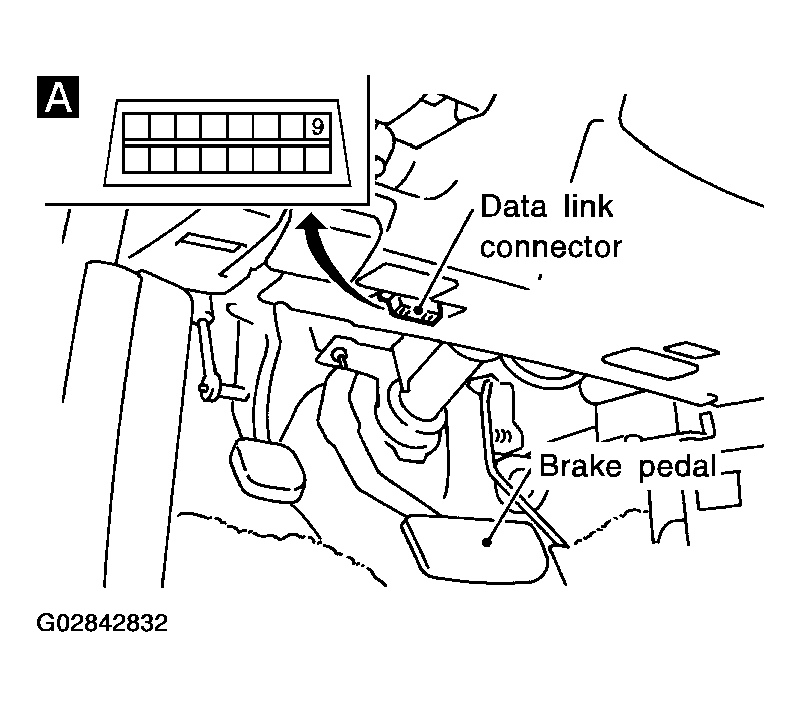

Fig 3: Locating Data Link Connector

Fig 4: Identifying ABS Warning Lamp And TCS Off Indicator

NOTE: The indication terminates after five minutes. However, when the ignition switch is turned from OFF to ON, the indication starts flashing again. The TCS OFF indicator and ABS warning lamp remain lighted.
