Electrical Component Inspection
>>
Inspection Of TAC Module
>>
TAC module inspection table for digital multimeter
TAC module inspection table for digital multimeter

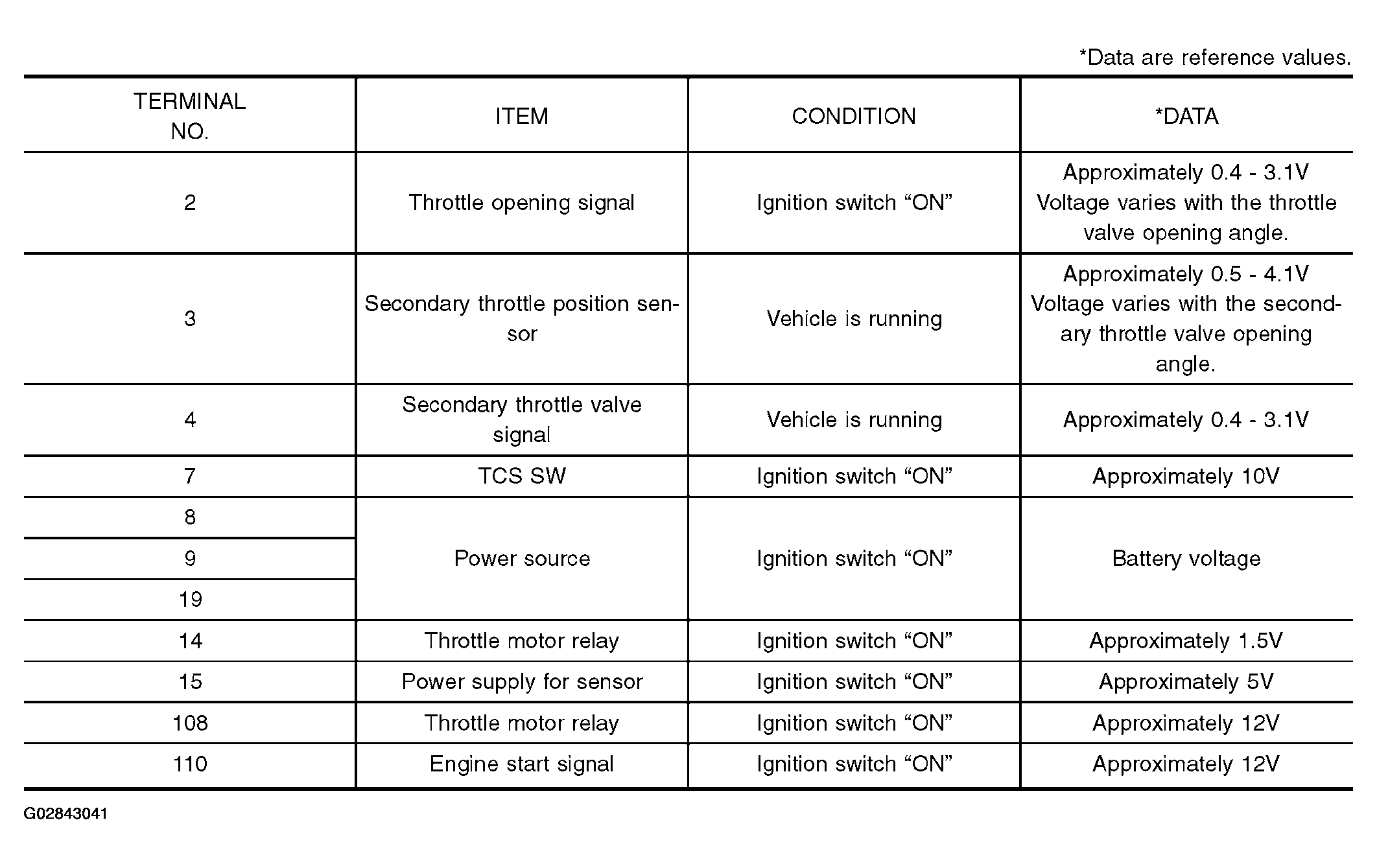

Fig 1: TAC Module Inspection Chart (Digital Multimeter)
