ABS/TCS control unit inspection table

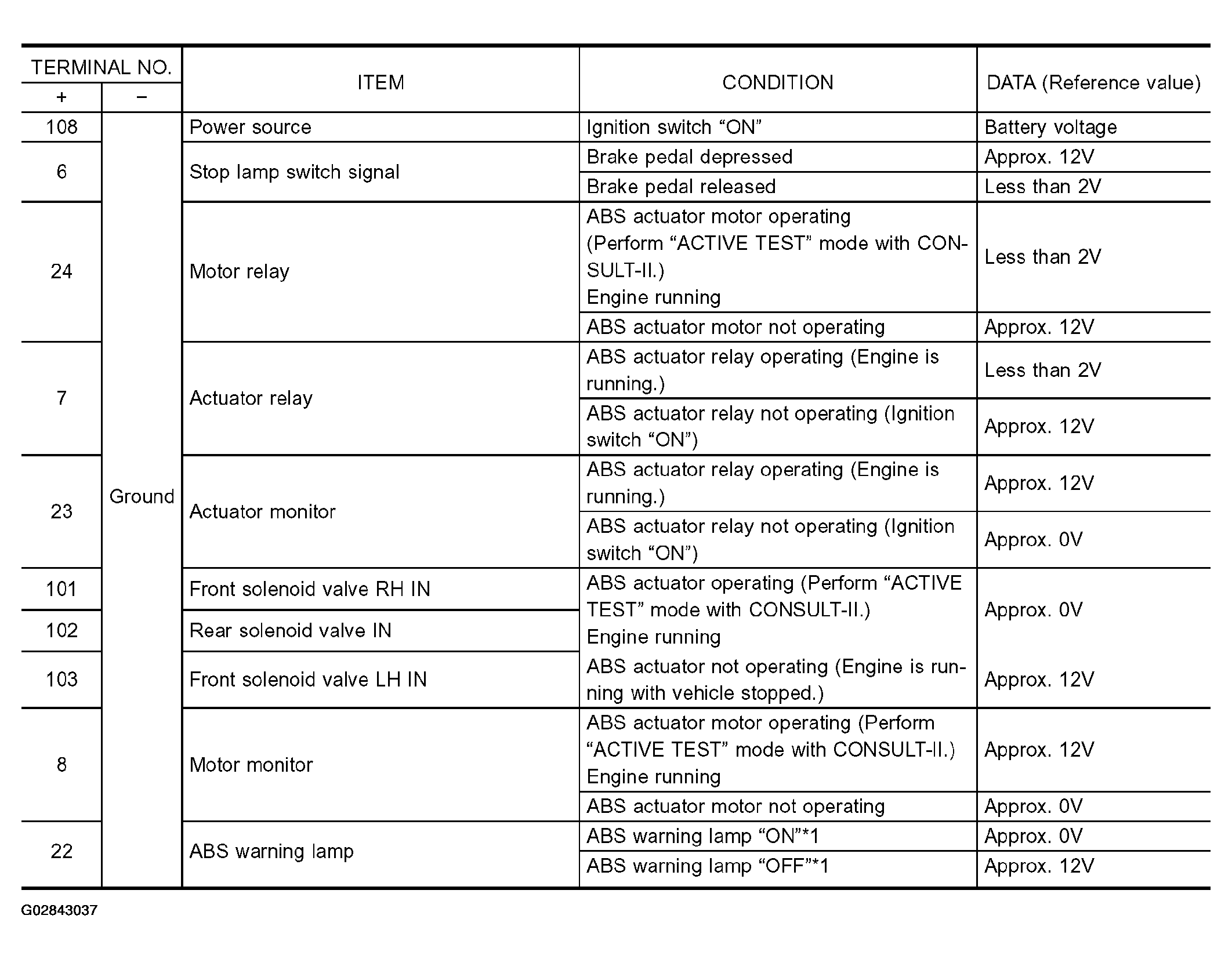

Fig 1: ABS/TCS Control Unit Terminal Specifications (1 Of 2)

G02843037

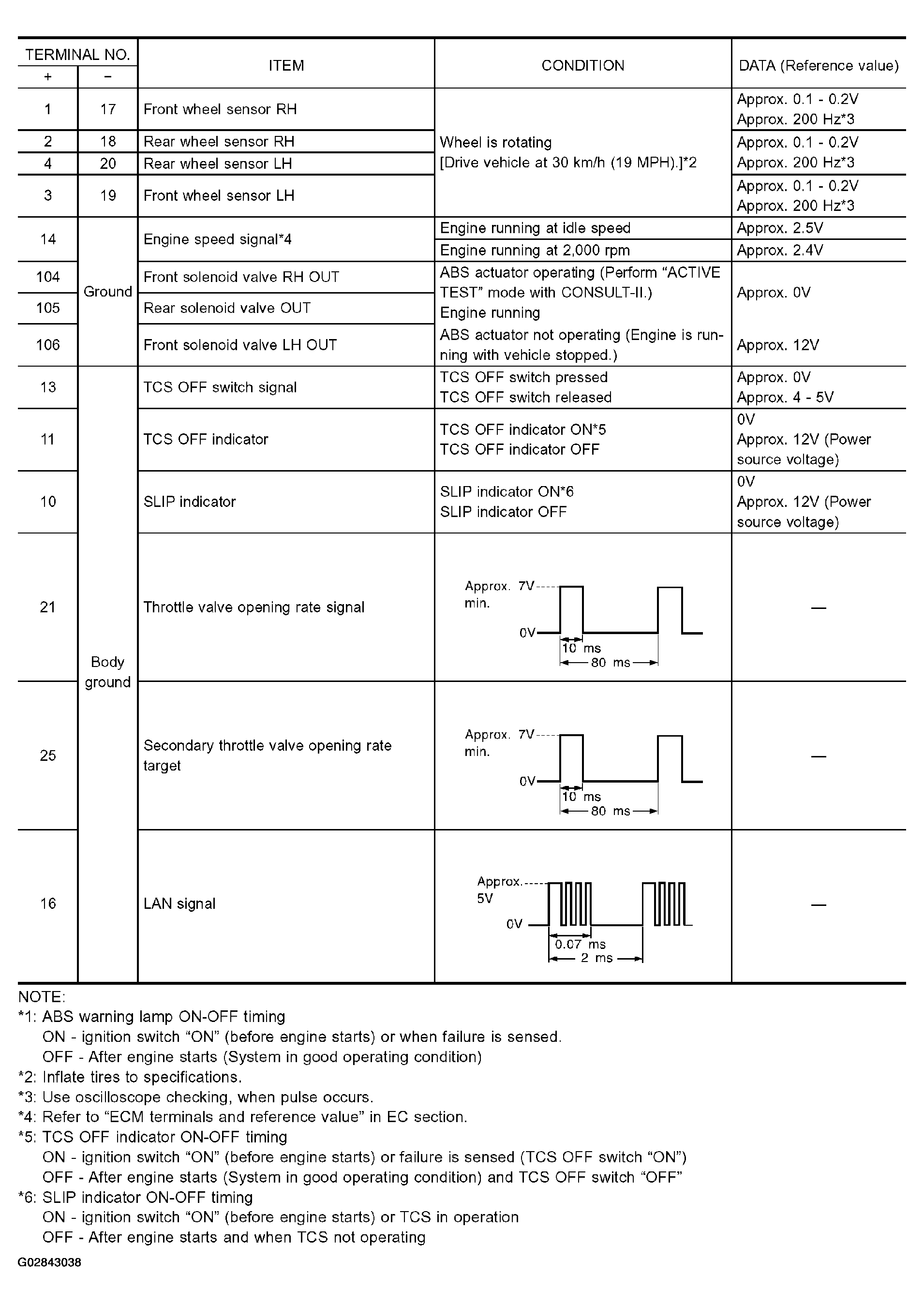

Fig 2: ABS/TCS Control Unit Terminal Specifications (2 Of 2)

G02843038
