Diagnostic Procedure 12 (Control Unit)

Code No. 71 of ABS/TCS control unit

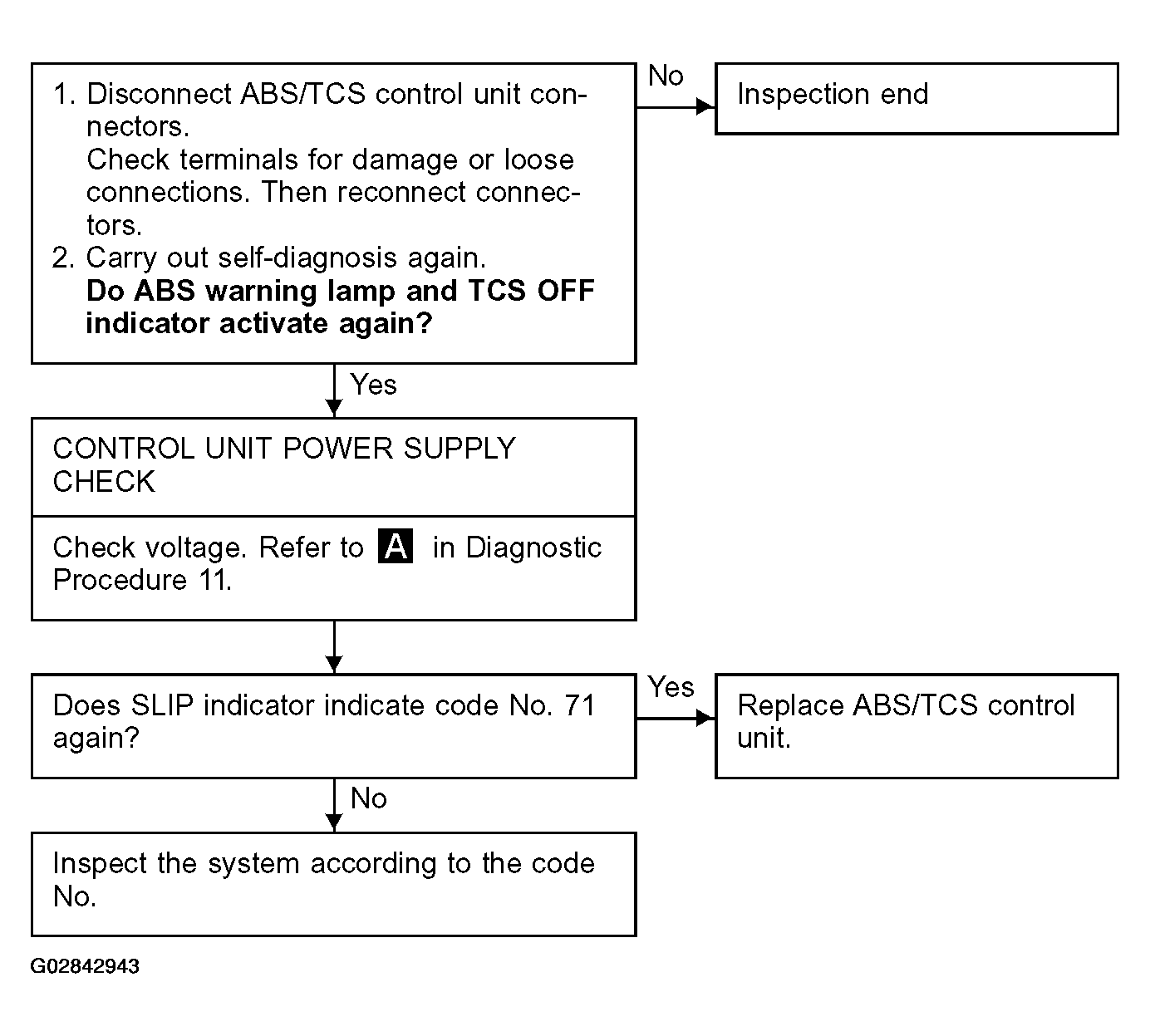

Fig 1: Diagnostic Procedure Flow Chart (Control Unit)

G02842943

Fig 2: Identifying ABS/TCS Control Unit Connector Terminals

G02842944
