Diagnostic Procedure 1 (Engine System)
Diagnostic Procedure 1 (Engine System)
Code No. 84 of ABS/TCS control unit

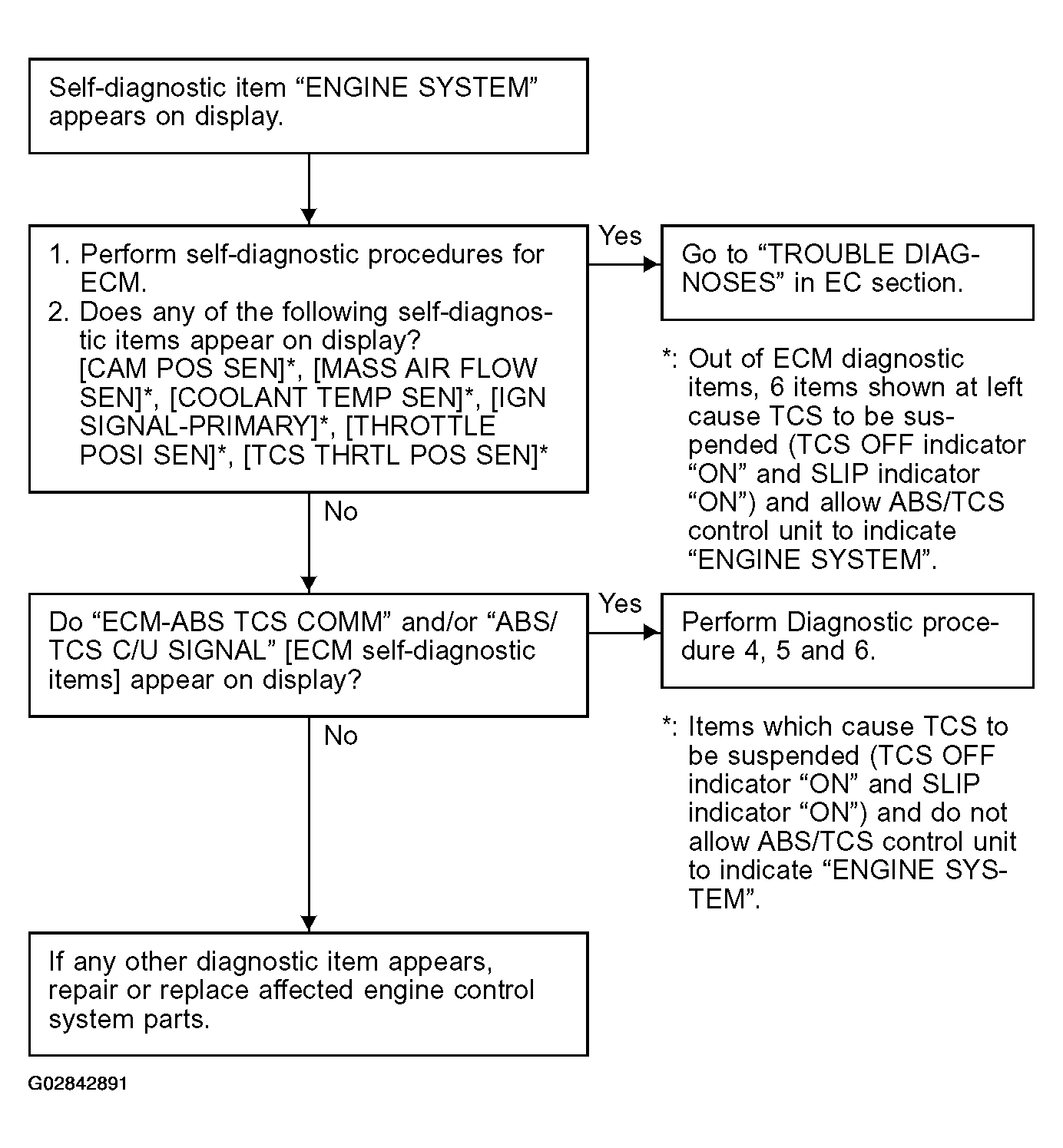

Fig 1: Diagnostic Procedure Flow Chart (Engine System)
