Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Antenna Amplifier | Part Of Ignition Lock Cylinder |
| Data Link Connector (DLC) | Left Side Of Instrument Panel, Next To Parking Brake Release Handle |
| Engine Control Module (ECM) | Behind Right-Side Kick Panel |
| Fuse No. 28 (10-Amp) | In Instrument Panel Fuse Box |
| Fuse No. 32 (7.5-Amp) | In Instrument Panel Fuse Box |
| Fuse No. 57 (7.5-Amp) | In Power Distribution Box |

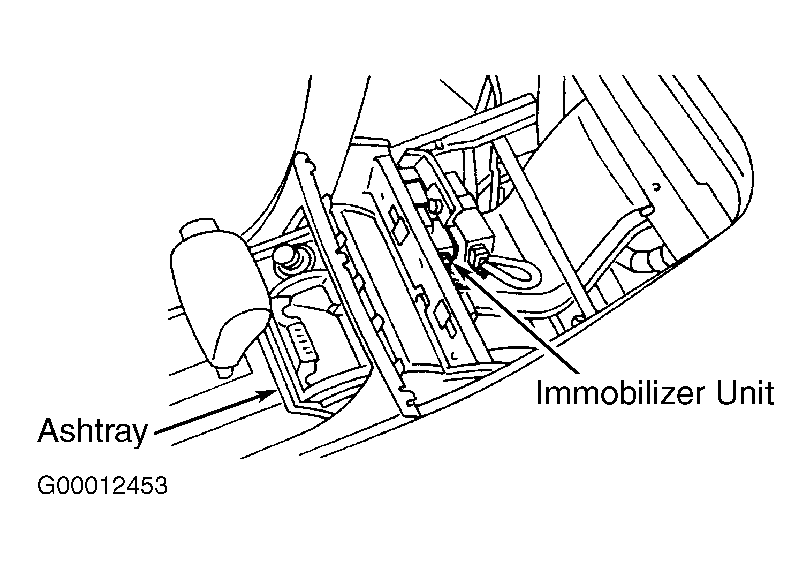

| Immobilizer Unit (IMMU) | Behind Ashtray |
| Instrument Panel Fuse Box | Under Left Side Of Instrument Panel, Above Left-Side Kick Panel |
| Power Distribution Box | At Right Side Of Engine Compartment |
