Home >> Infiniti >> 2001 >> Q45 Base >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> A/T Indicator >> Schematic

A/T Indicator: Schematic

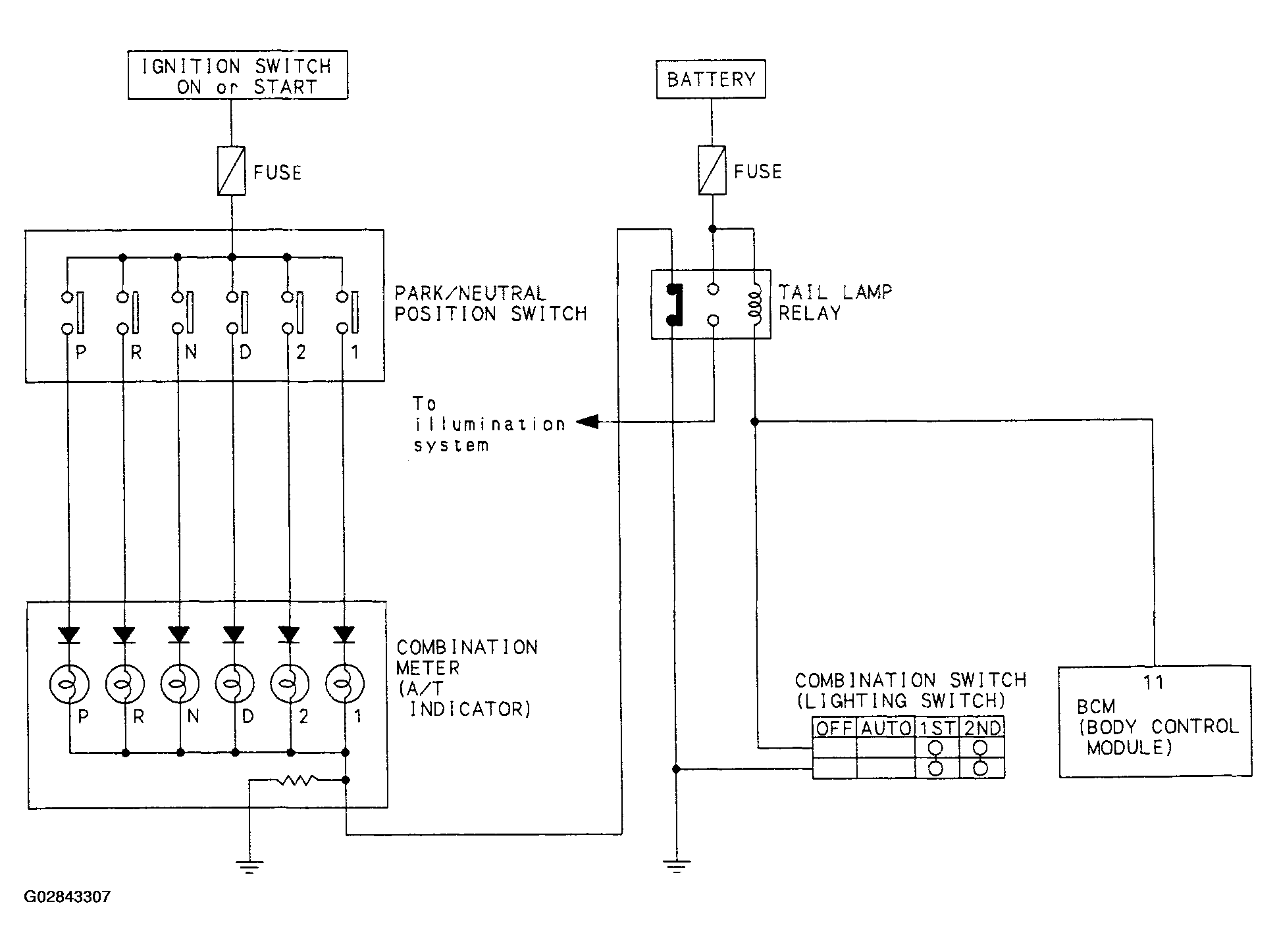

Fig 1: A/T Indicator Schematic Diagram

G02843307
