How To Perform

Switch the navigation system mode to self-diagnosis by pushing both "MAP" and "D/N" switches at the same time for more than 5 seconds.

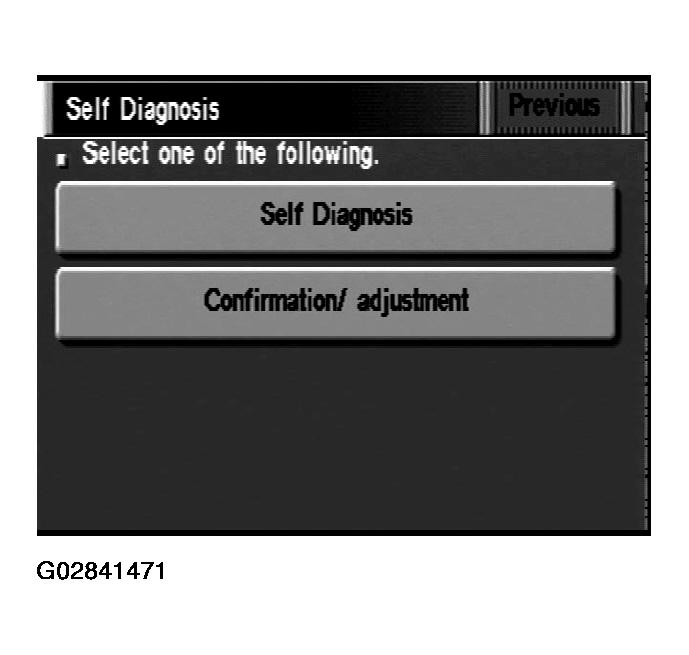

Fig 1: Pushing Both "MAP" And "D/N"
Touch "Confirmation/ adjustment".

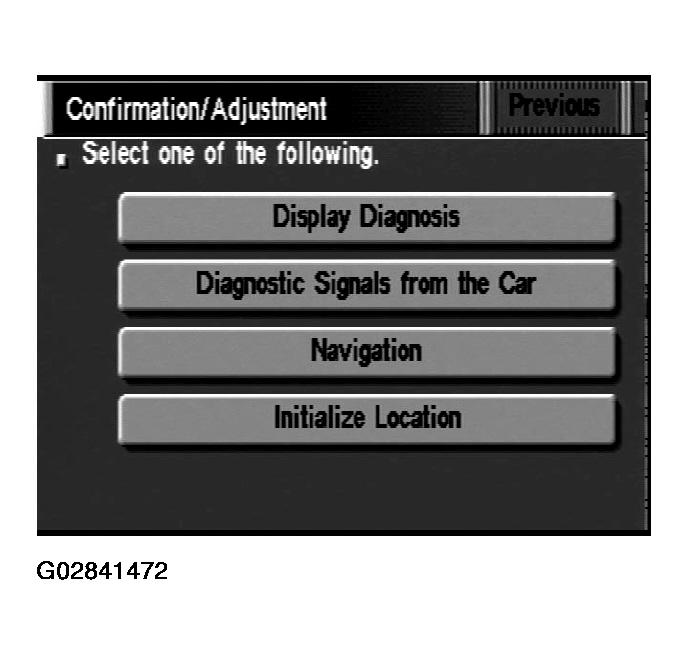

Fig 2: Confirmation/Adjustment Display
Touch "Initialize Location". Then the previous screen is displayed.

Fig 3: Initialize Location Display
Push "Previous" switch.

Fig 4: Previous Display
Push the "MAP" switch.
Touch "Setting".

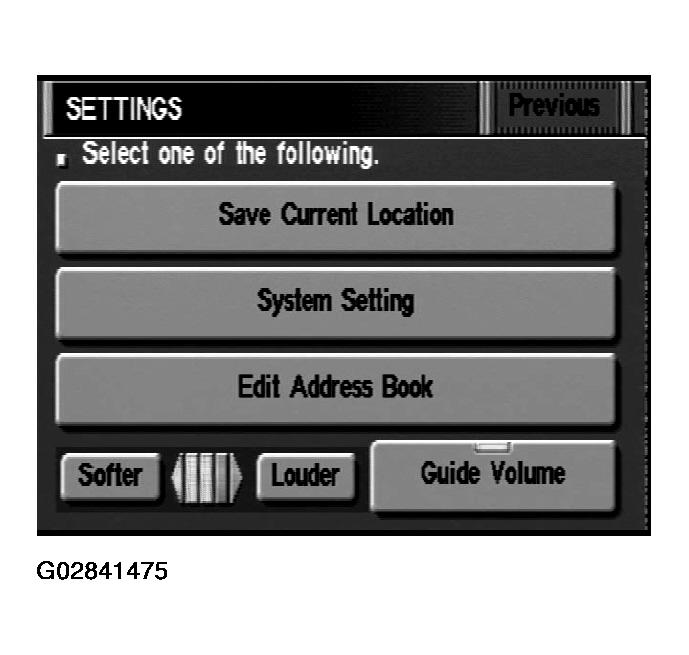

Fig 5: Setting Display
Touch "System Setting".

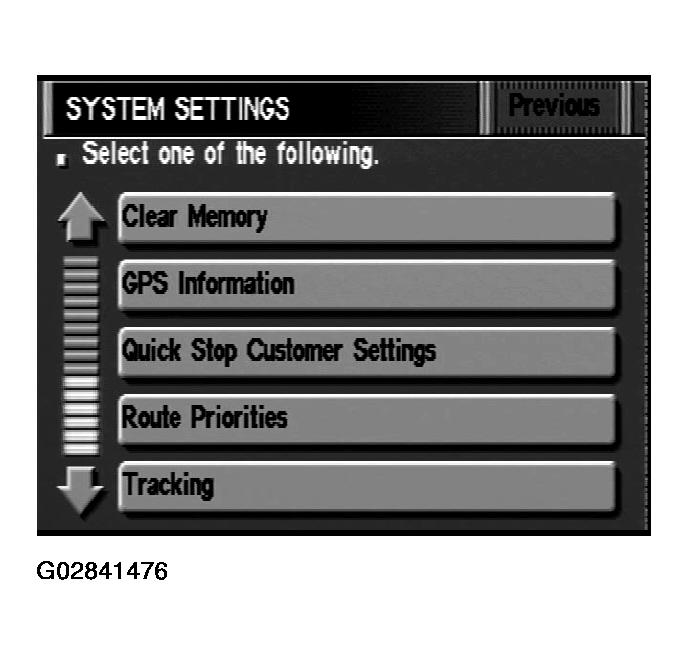

Fig 6: System Setting Display
Touch "GPS Information".

Fig 7: GPS Information Display
More than one GPS satellite icon turns green. (It may take 1 to 15 minutes.)
NOTE: Drive the vehicle for a while* in order to change the receiving condition of the radio wave from the GPS satellite if the GPS icon does not turn green.

* The driving distance which is necessary depends on the receiving condition of the radio wave from the GPS satellite.

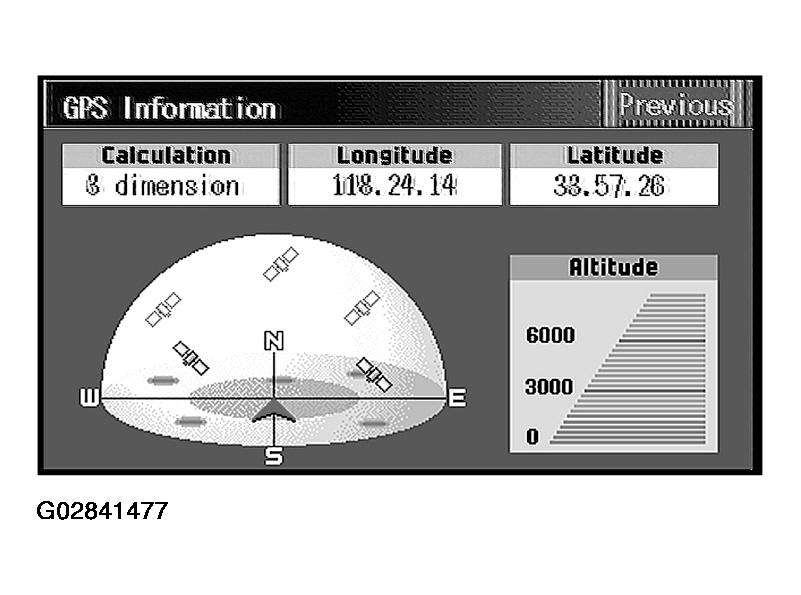

Fig 8: GPS Display
Push "MAP" switch and check the following.
- Confirm that the GPS icon on the map turns green.
- Then the position marker should show the current location.
- Position marker rotates corresponding to the movement of the vehicle.
Initialization is completed.

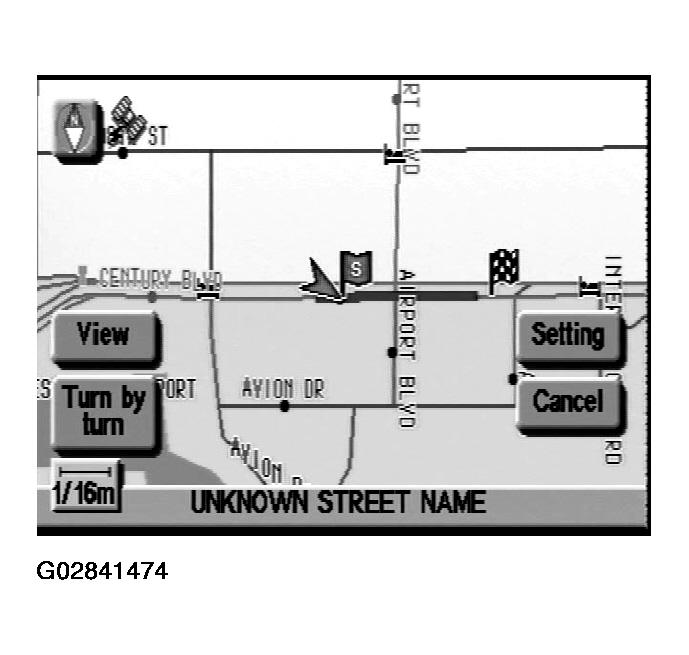

Fig 9: MAP Display
