Consult-II Inspection Procedure For Abs/TCS Control Unit
>>
Active Test Procedure
Active Test Procedure
When conducting Active test, vehicle must be stationary.
When ABS warning lamp stays on, never conduct Active test.

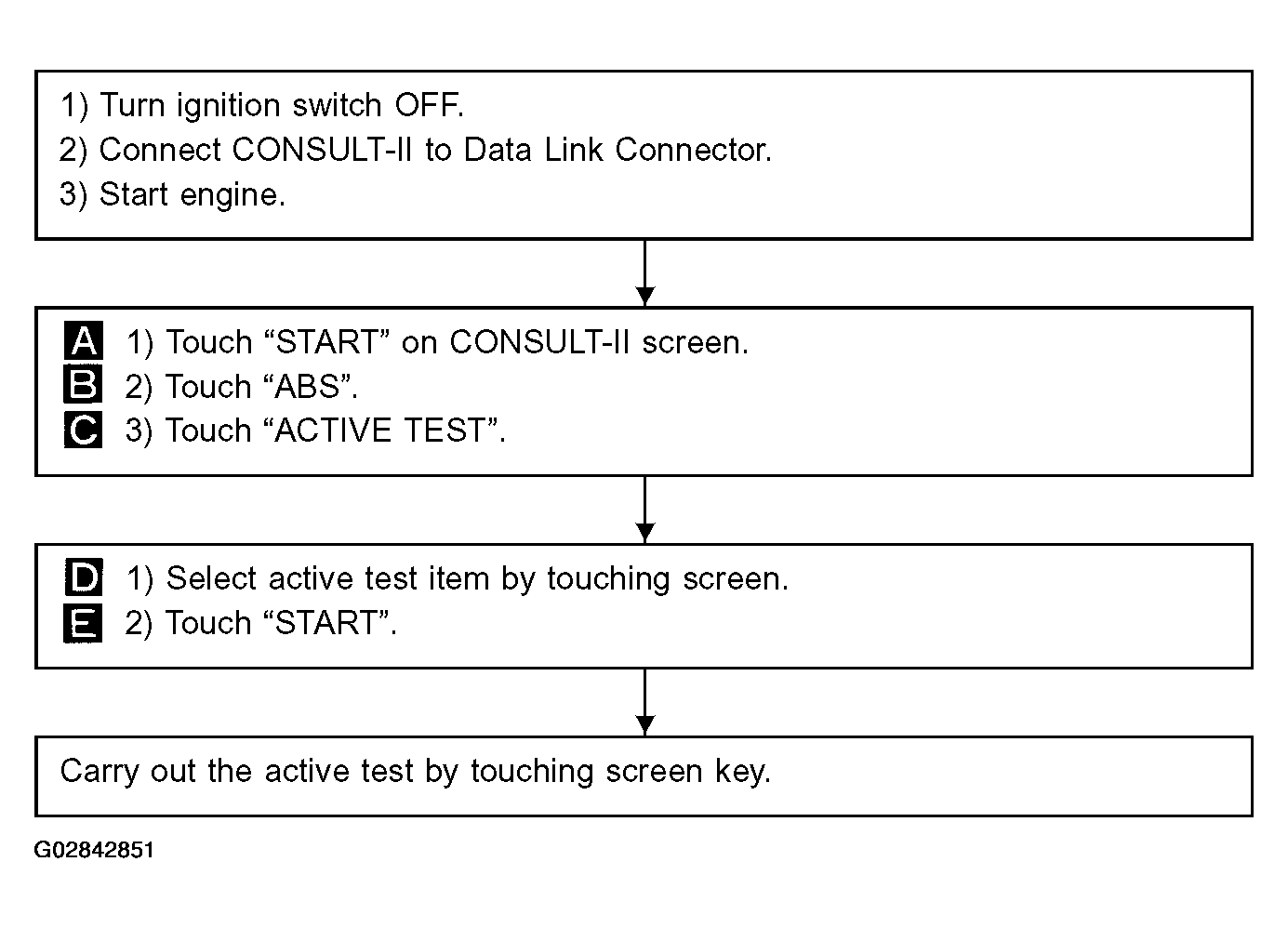

Fig 1: Active Test Procedure Flow Chart
Fig 2: CONSULT-II Display - Touch START
Fig 3: CONSULT-II Display - Touch ABS
Fig 4: CONSULT-II Display - Touch ACTIVE TEST
Fig 5: CONSULT-II Display - Touch SELECT TEST ITEM
Fig 6: CONSULT-II Display - Touch START
