System Tests: Notes

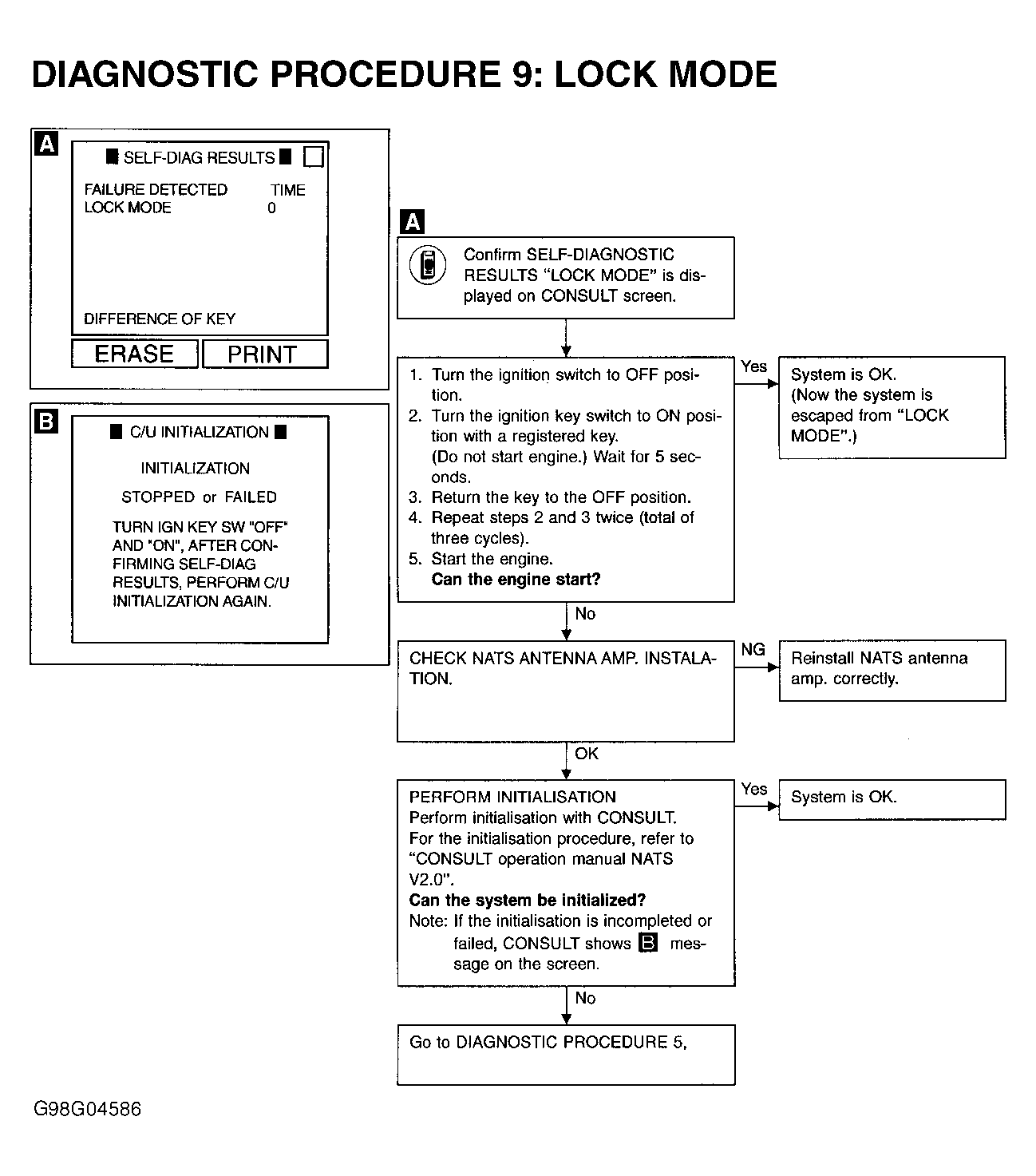

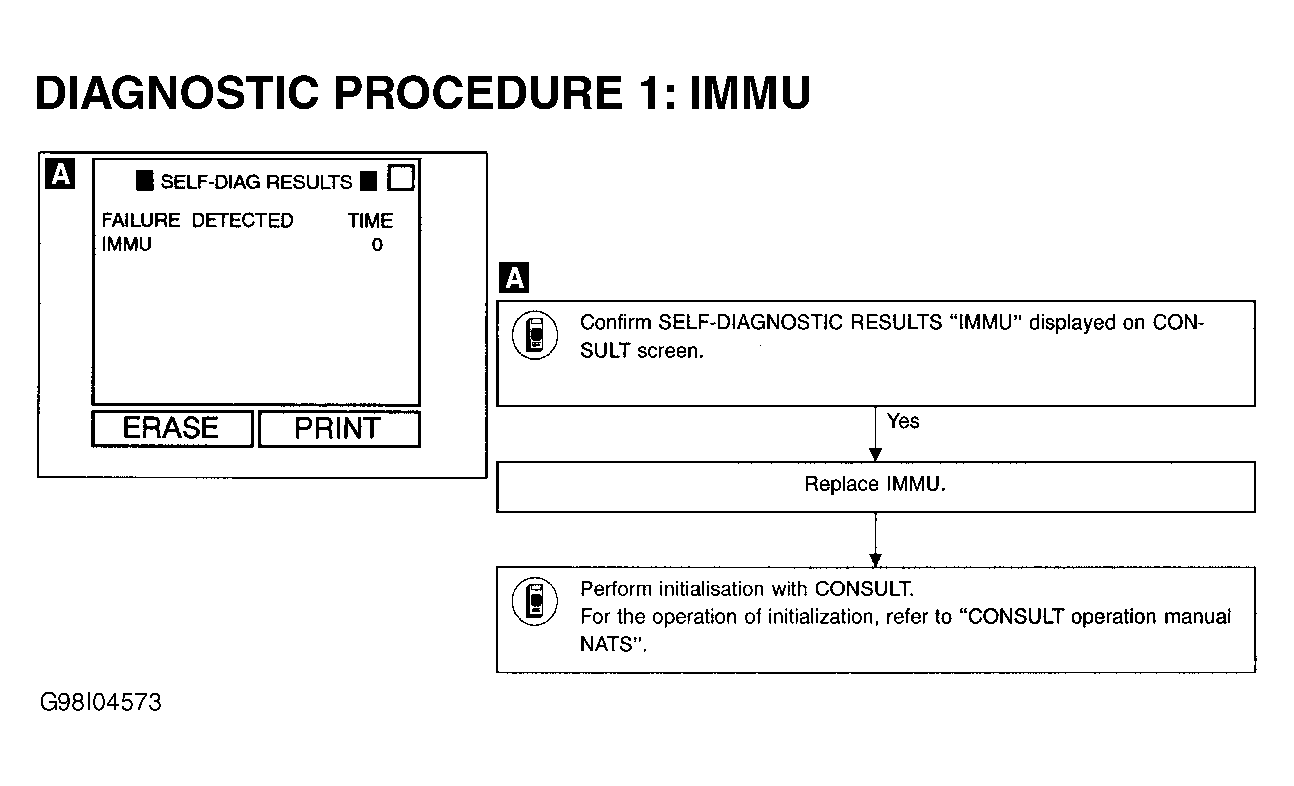

NOTE: For diagnostic procedures, see Figure -Figure . For ECM harness connector terminal identification, see Fig 1 .
Fig 1: Identifying ECM Harness Connector Terminals
G98H11707Courtesy of NISSAN MOTOR CO., U.S.A.
