"Tracking" Mode

  1. Start the engine.
  2. Push the "MAP" switch.
  3. Touch "Setting".
  4. Touch "System Setting".

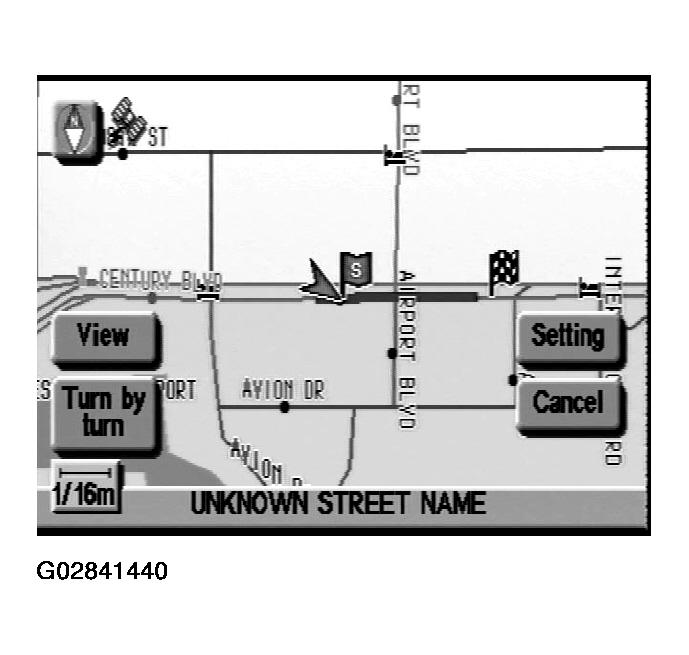

  5. Fig 1: Setting Display
    G02841440
  6. Touch "Tracking".

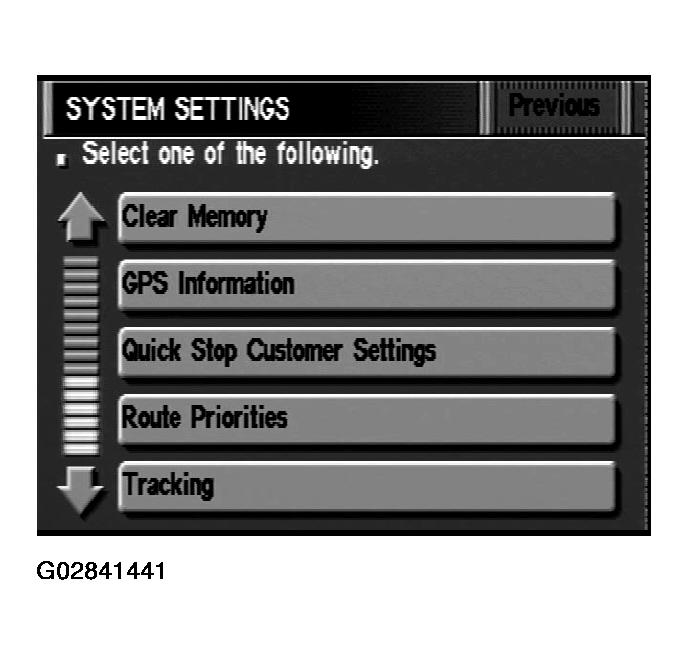

  7. Fig 2: Tracking Display
    G02841441
  8. Touch the "On" or "Off" icon.
    • If you don't need a trail on the map, select "Off".
    • If you need a trail on the map, select "On".
  9. Push the "MAP" switch to return the display to the current location map.
NOTE: When a trail display is turned OFF, trail data is erased from the memory.

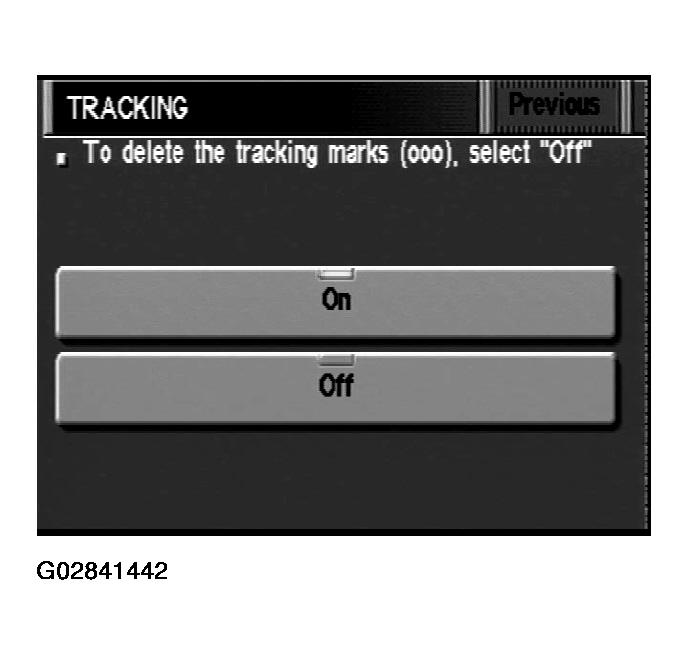

Fig 3: MAP Display
G02841442
