Door Switch Check

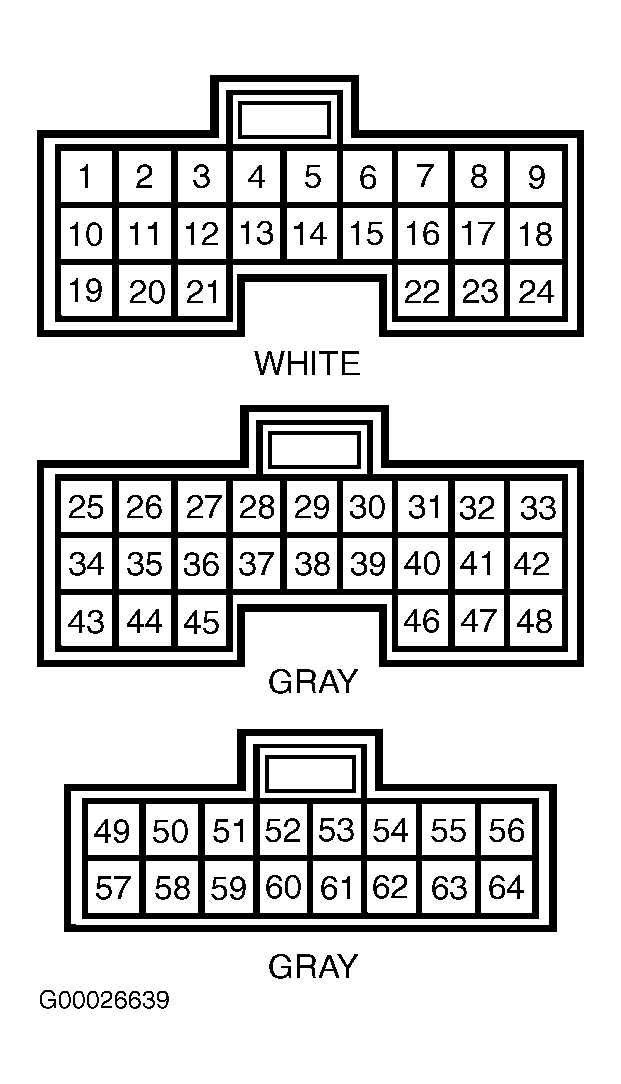

- Measure voltage by backprobing between appropriate SECU terminals and ground. See DOOR SWITCH INPUT SIGNAL CHECK
table. If voltages are not as specified, go to next step. If voltages are as specified, door switch is okay.
- Perform appropriate door switch test. See SWITCHES
under COMPONENT TESTS. If switch is okay, inspect door switch ground circuit and/or Red/White, Red/Blue or Sky Blue wire between SECU and door switch for open or short.
DOOR SWITCH INPUT SIGNAL CHECK
| Switch (Terminal No.)
/Condition |
Voltage |
| Left Front Door (1) |
| Open |
0 Volts |
| Closed |
About 5 Volts |
| Right Front Door (2) |
| Open |
0 Volts |
| Closed |
About 5 Volts |
| Both Rear Doors (3) |
| Open |
0 Volts |
| Closed |
About 5 Volts |
Courtesy of NISSAN MOTOR CO., U.S.A.
