Component Locations

COMPONENT LOCATIONS

Component

Location

Door Lock Actuator

Inside Appropriate Door

Door Lock Switch

On Appropriate Armrest

Smart Entrance Control Unit (SECU)

⁽¹⁾

Vehicle Security Horn Relays

⁽²⁾ Located In Underhood Relay Block

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

Fig 1: Locating Smart Entrance Control Unit (SECU)

Courtesy of NISSAN MOTOR CO., U.S.A.

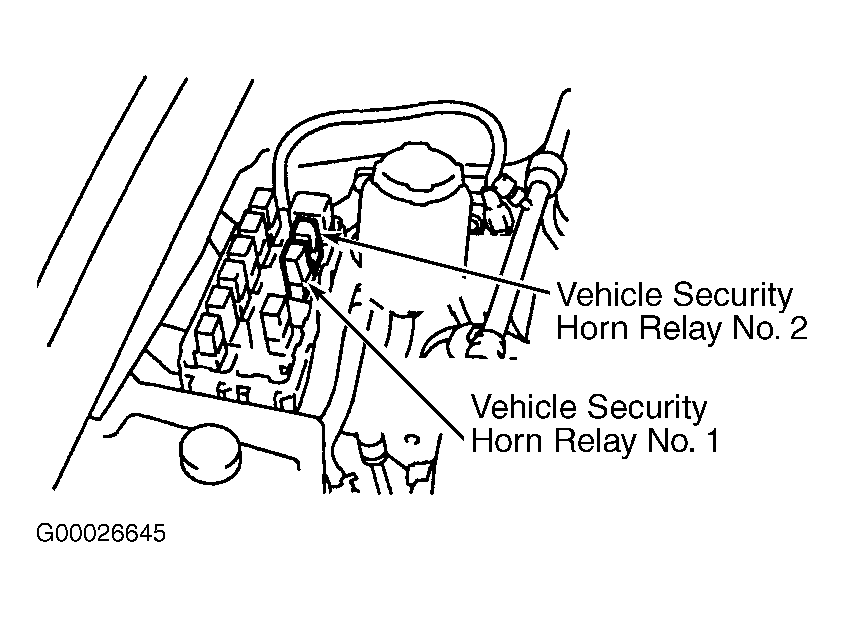

Fig 2: Locating Vehicle Security Horn Relays

Courtesy of NISSAN MOTOR CO., U.S.A
