LEMON Manuals: Even more car manuals for everyone
Home >> Infiniti >> 2001 >> I30 Base, RE4F04W >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> Preparation >> Special Service Tools

Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

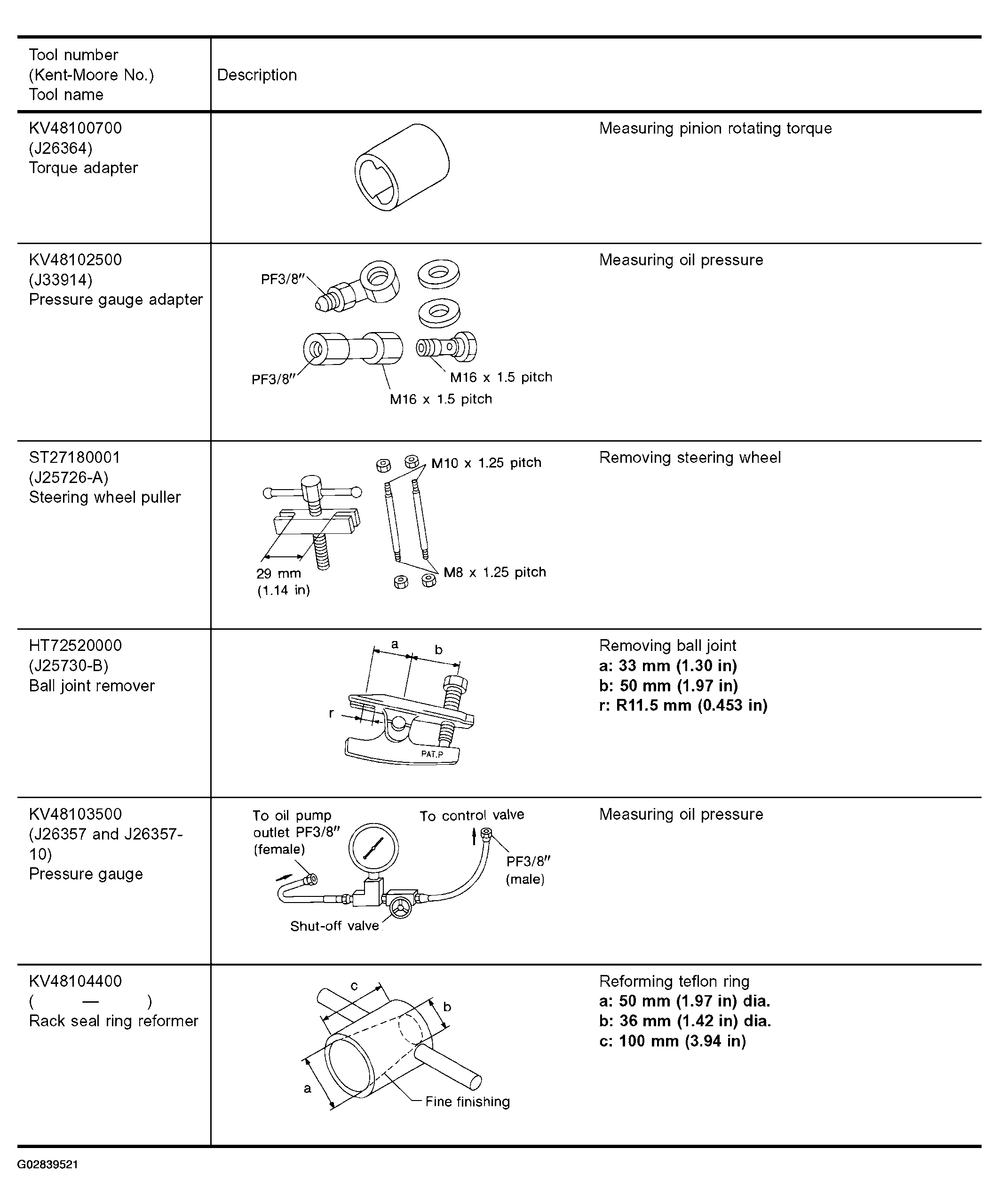

Fig 1: Identifying Special Service Tools (1 Of 2)
G02839521

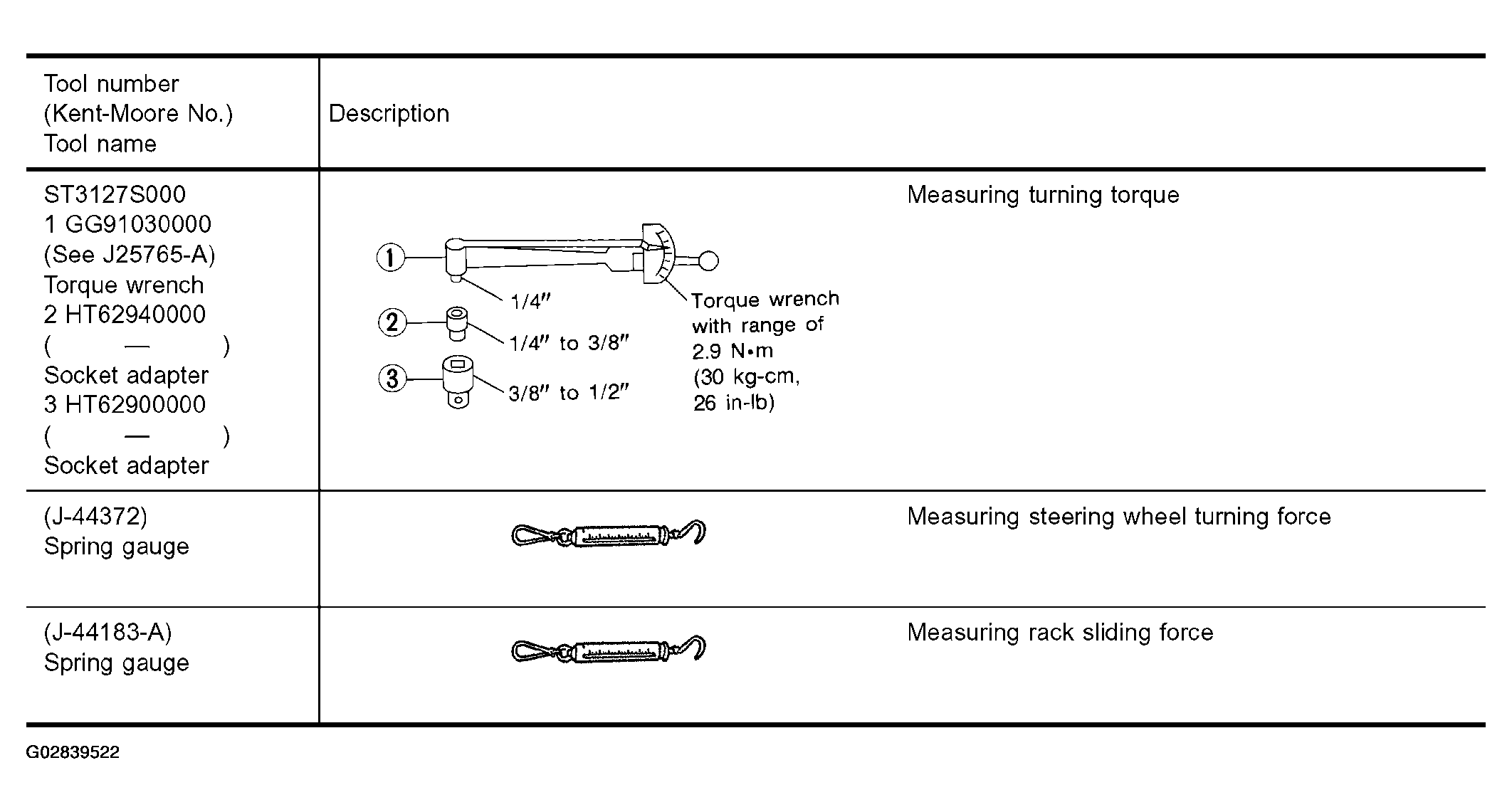

Fig 2: Identifying Special Service Tools (2 Of 2)
G02839522
