Refueling EVAP Vapor Cut Valve Test (Altima)

NOTE: Refueling EVAP vapor cut valve is not replaceable. If defective, fuel tank must be replaced.
  1. Remove fuel tank. Remove fuel level sensor unit retainer. Drain fuel from tank using a hand pump. Check valve head for cracks. To check if refueling EVAP vapor cut valve is stuck closed, blow air into vapor cut valve. See Fig 1. If air flows freely into fuel tank, go to next step. If air does not flow freely into fuel tank, replace fuel tank.
  2. To check if refueling EVAP vapor cut valve is stuck open, connect a vacuum pump to valve. Remove fuel gauge/fuel level sensor unit. Invert fuel tank. Apply 3.94 in. Hg of vacuum to valve. If vacuum does not hold, replace fuel tank. If vacuum holds, refueling EVAP vapor cut valve is okay.

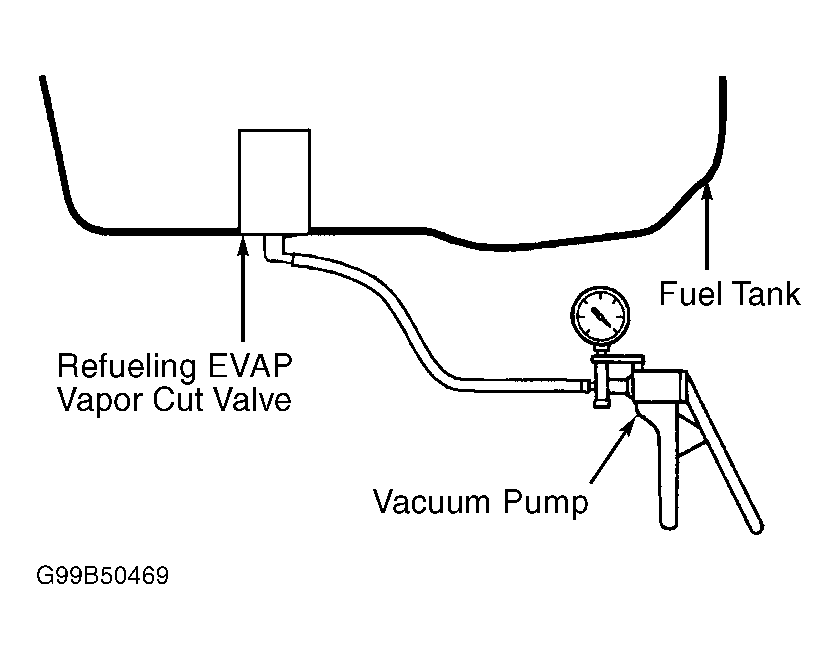

    Fig 1: Testing Refueling EVAP Vapor Cut Valve (Altima)
    G99B50469Courtesy of NISSAN MOTOR CO., U.S.A.
