Fuel Tank: Installation

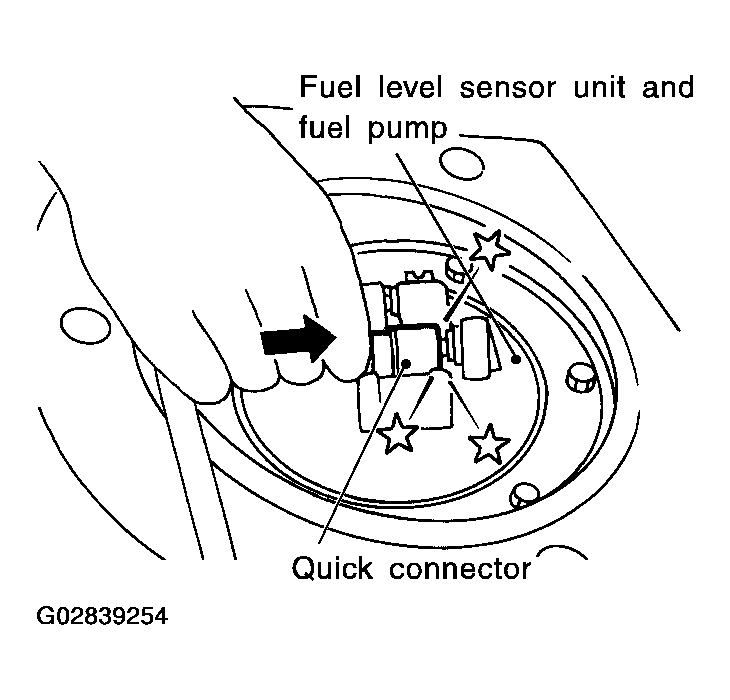

To install, reverse the removal procedure. Connect the quick connector as follows:
Align mating marks on tubes and connectors for correct installation.
Align push in tabs with retainer openings.
Be sure that the connecting portion of the tube and the quick connector is clean and smooth.
Insert tube into the center of the connector until you hear a click.
After connecting quick connector, make sure the connection is firmly made using the following method.
Pull on the fuel tube and connector to make sure they are firmly connected.
Start the engine, increase engine speed and verify that there are no leaks.
