Home >> Infiniti >> 2001 >> I30 Base, RE4F04W >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Drive Shaft >> Components

Drive Shaft: Components

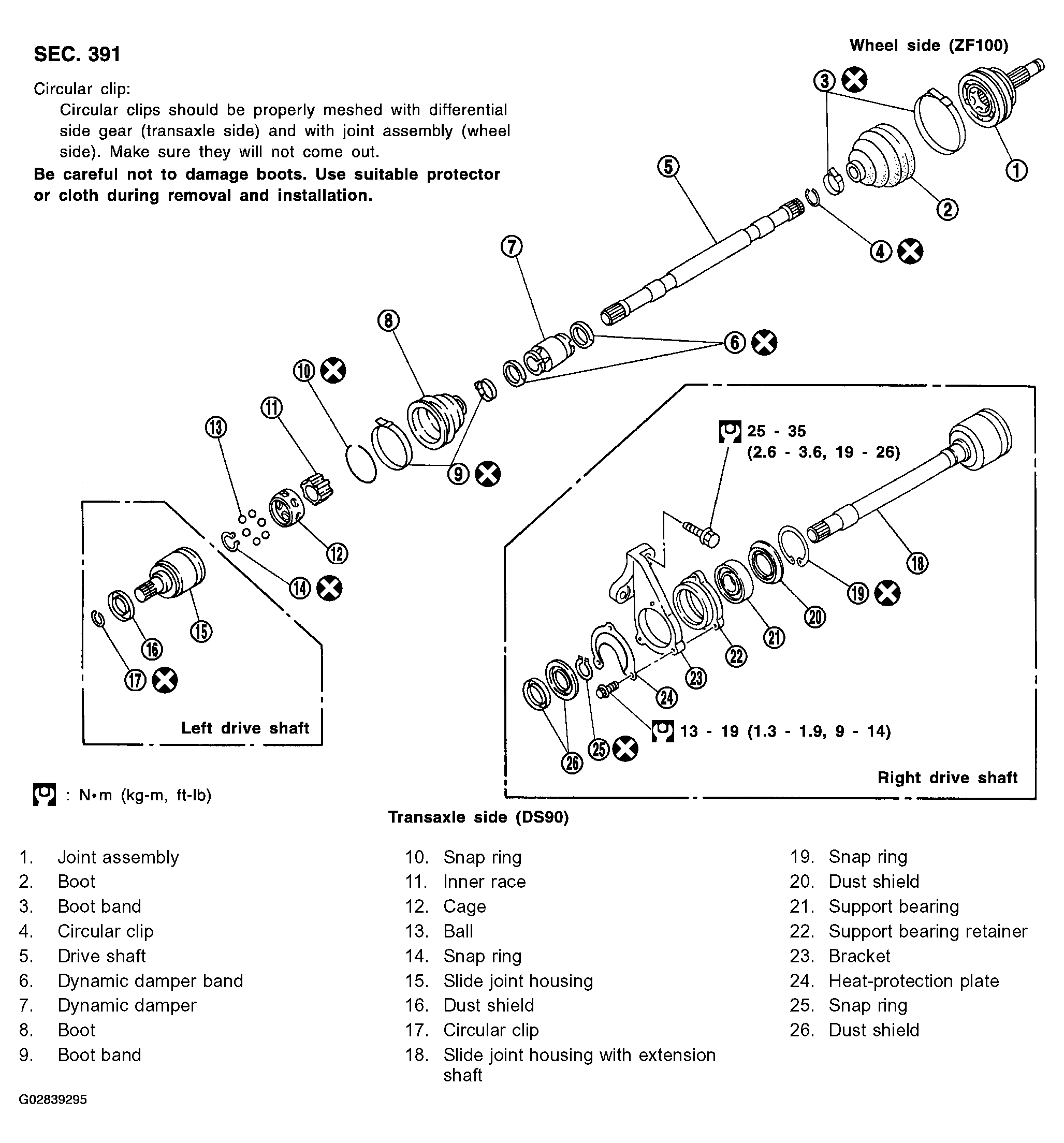

Fig 1: Exploded View Of Drive Shaft Components

G02839295
