Traction Control: Abs/TCS: Actuator: Removal
- Disconnect battery cable.
- Drain brake fluid. Refer to "Changing Brake Fluid" in DISC ).
- Remove air cleaner and duct.
- Apply different colored paint to each pipe connector and actuator to prevent incorrect connection.

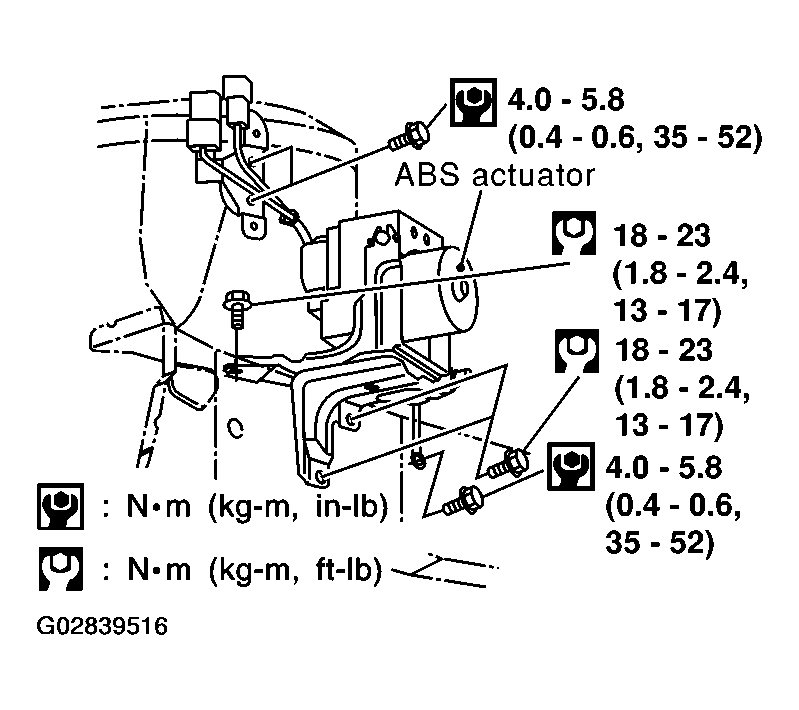

- Disconnect harness connectors, brake pipes and remove fixing nuts and actuator ground cable.
