Trouble Diagnoses

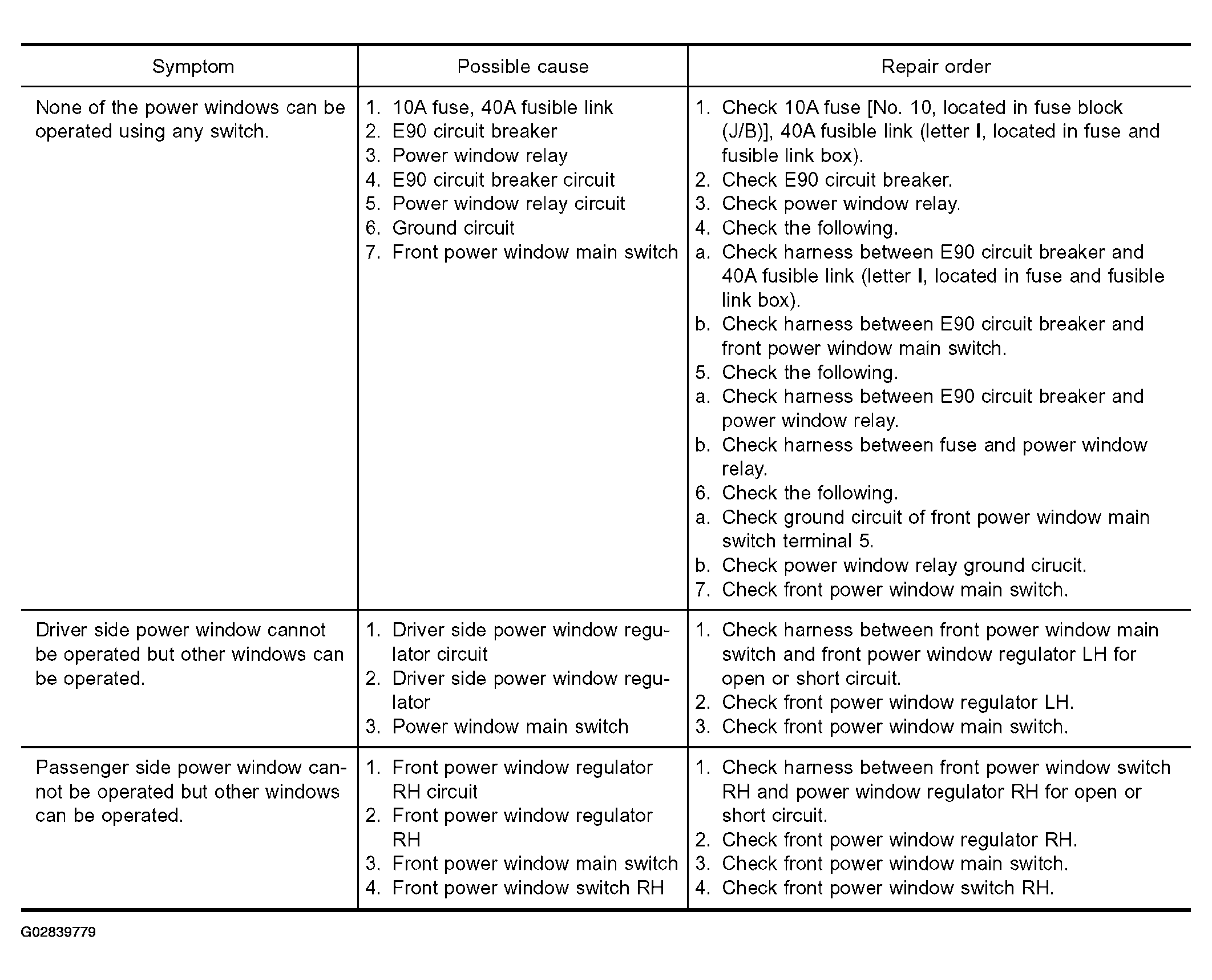

Fig 1: Power Window Trouble Diagnoses (1 Of 2)

G02839779

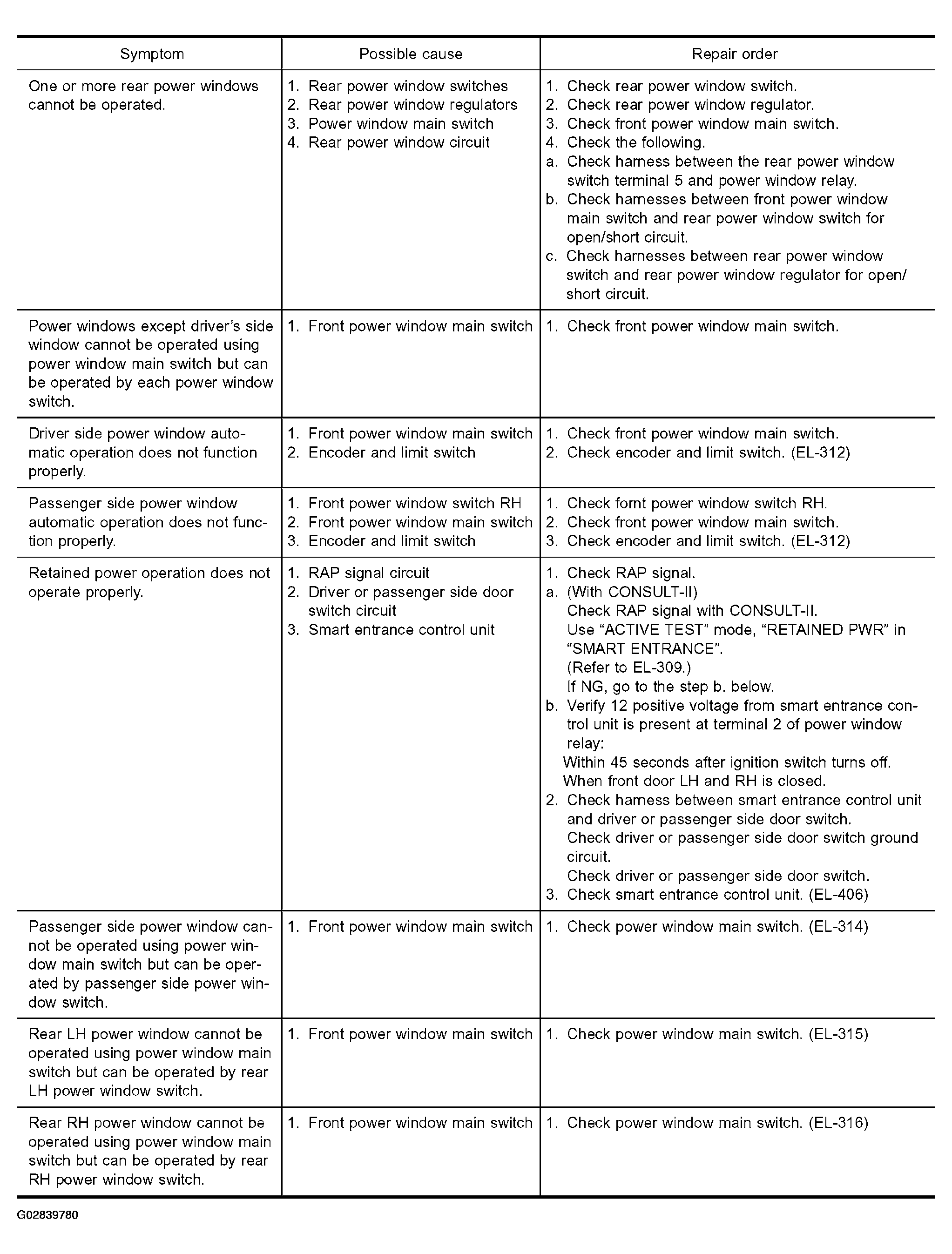

Fig 2: Power Window Trouble Diagnoses (2 Of 2)

G02839780
