"Retained PWR"

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

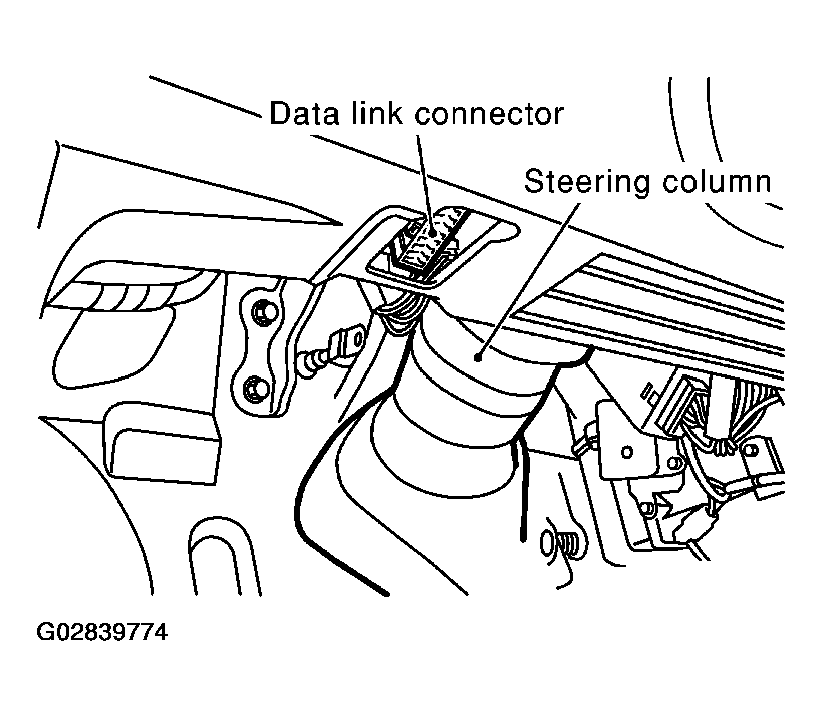

Fig 1: Connecting CONSULT-II To Data Link Connector
Turn ignition switch "ON".
Touch "START".

Fig 2: Displaying Start
Touch "SMART ENTRANCE".

Fig 3: Displaying Smart Entrance
Touch "RETAINED PWR".

Fig 4: Displaying Retained PWR
Select diagnosis mode.
"DATA MONITOR" and "ACTIVE TEST" are available.

Fig 5: Displaying Data Monitor And Active Test
