Active Test Mode

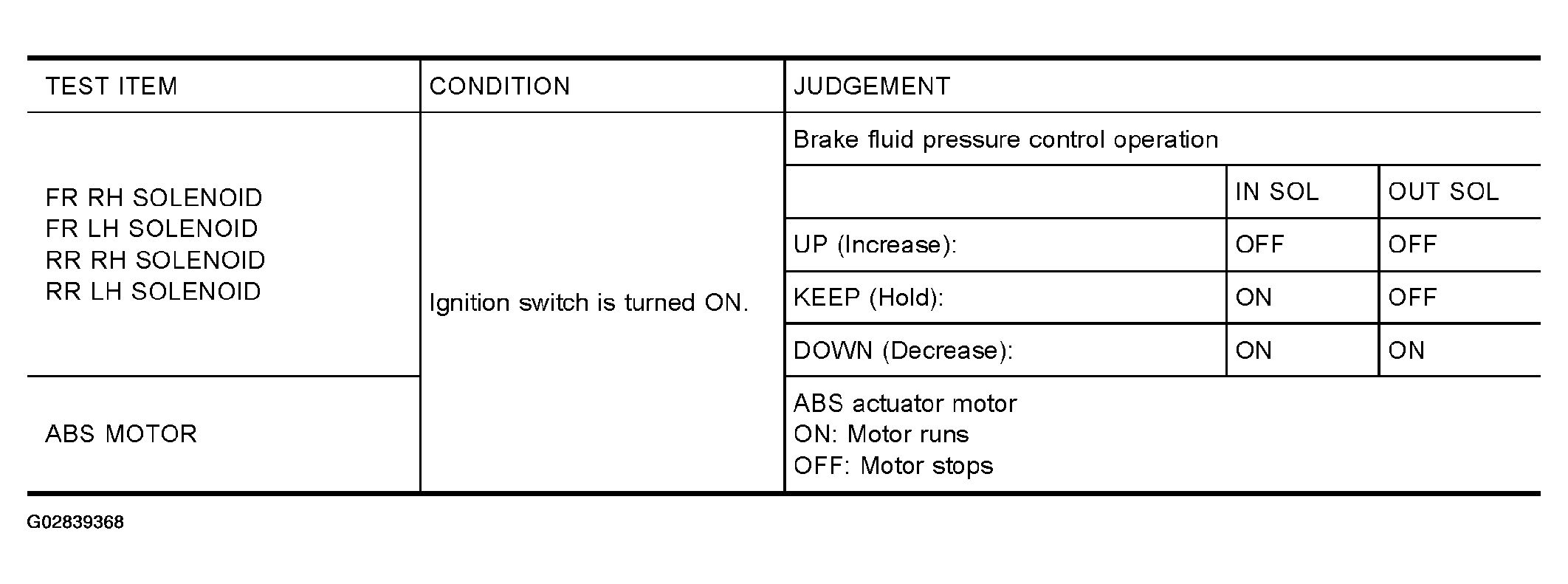

Fig 1: Active Test Chart

G02839368

NOTE: Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.)
