Pin Voltage Tests

CAUTION: To avoid damage to ECM, DO DOT use ECM ground terminals when measuring voltage.

NOTE: Unless stated otherwise in testing procedures, perform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. Voltage readings may vary slightly due to battery condition or charging rate.

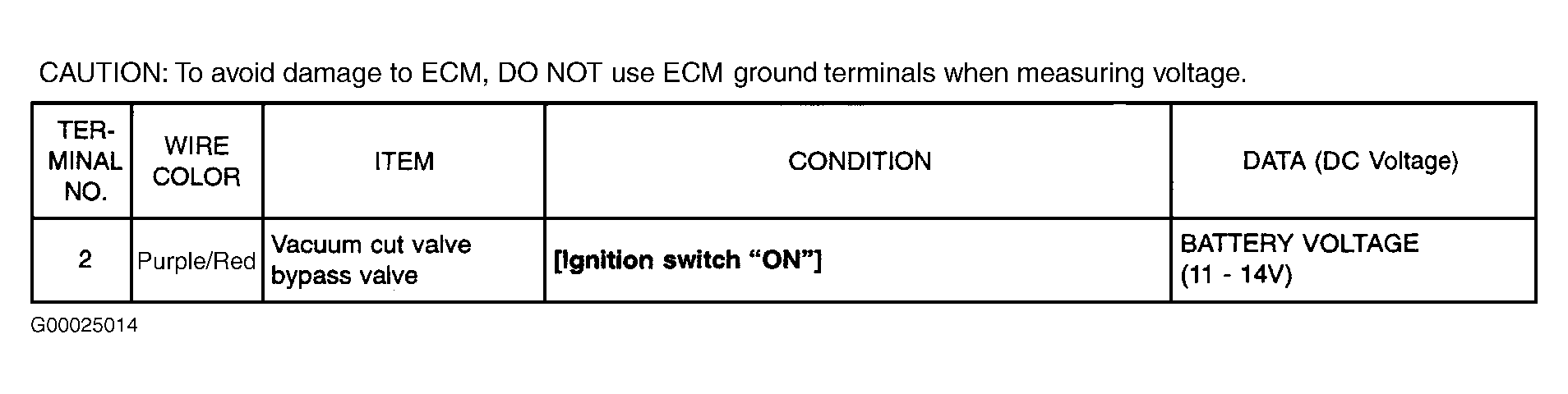

Fig 1: Pin Voltage Chart (G20 - 1 Of 8)

G00025014

Courtesy of NISSAN MOTOR CO., U.S.A.

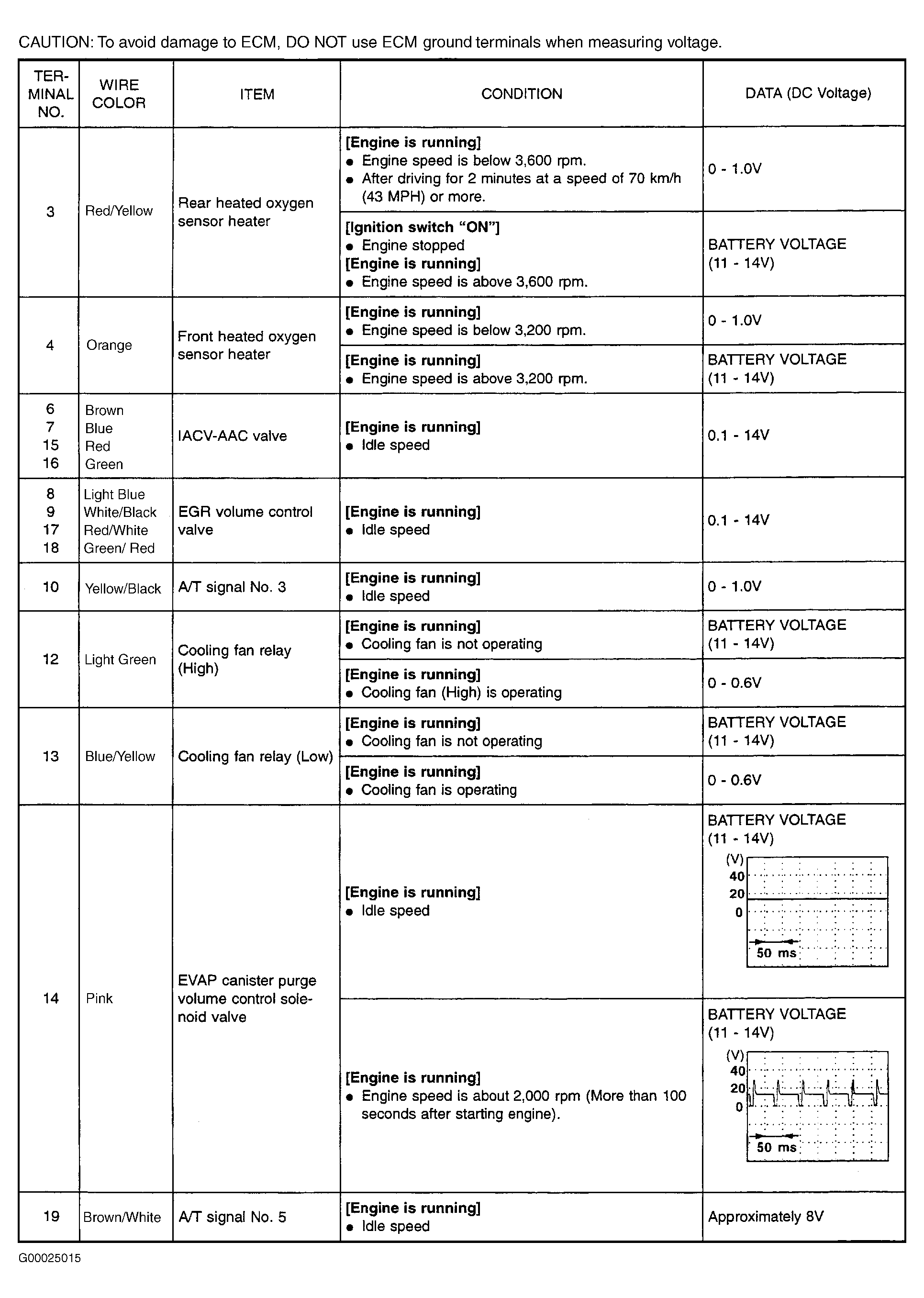

Fig 2: Pin Voltage Chart (G20 - 2 Of 8)

G00025015

Courtesy of NISSAN MOTOR CO., U.S.A.

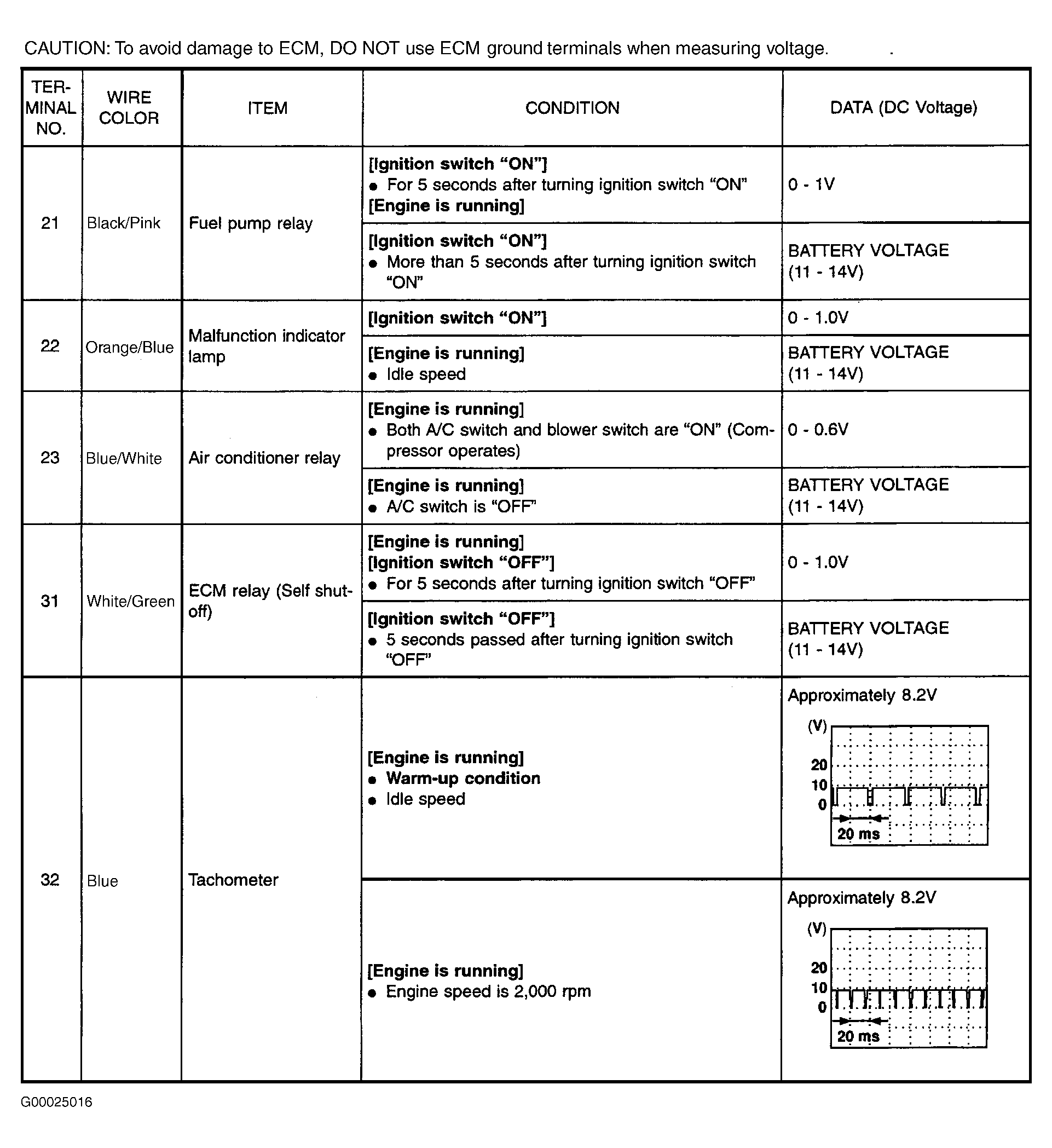

Fig 3: Pin Voltage Chart (G20 - 3 Of 8)

G00025016

Courtesy of NISSAN MOTOR CO., U.S.A.

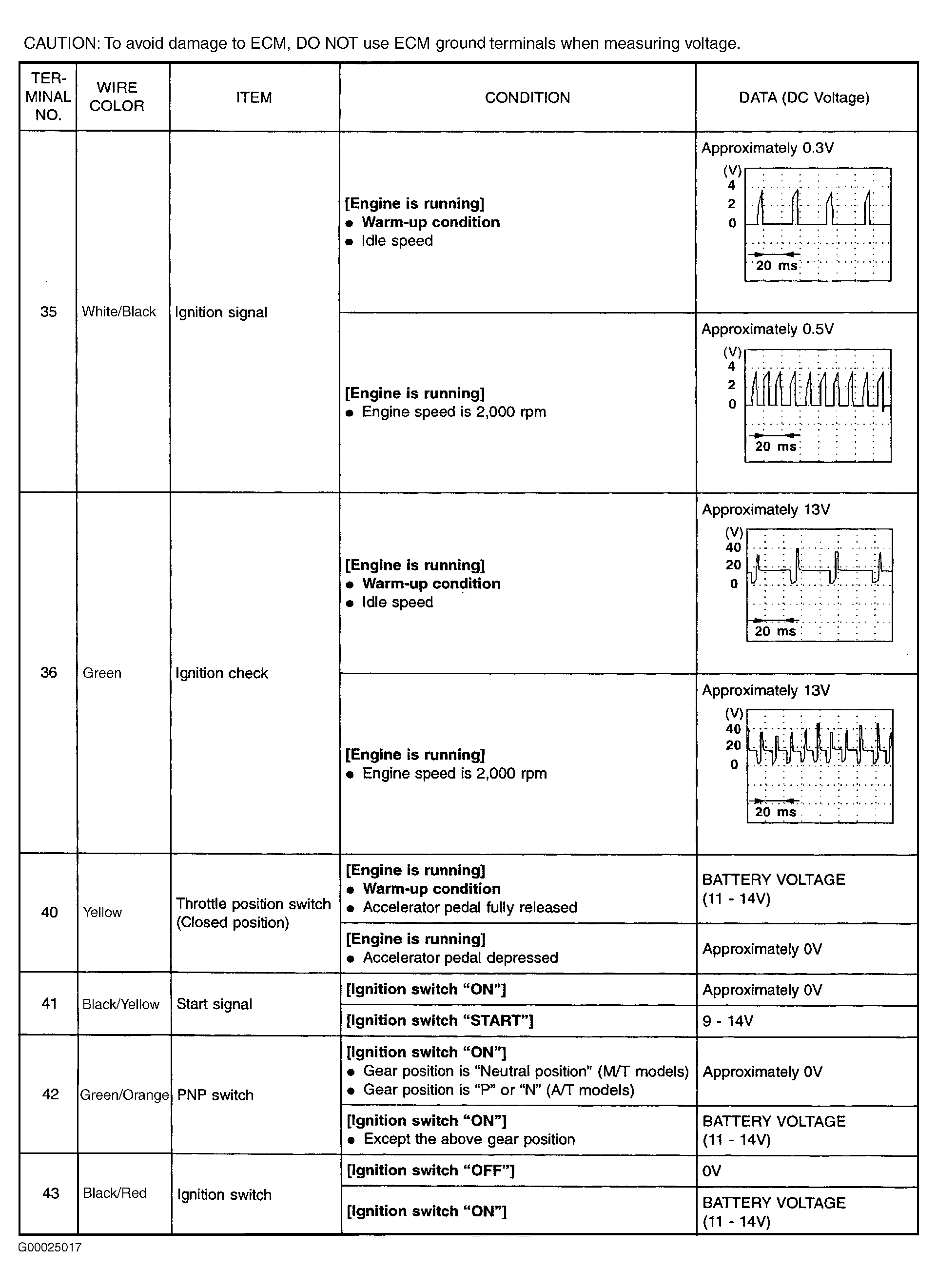

Fig 4: Pin Voltage Chart (G20 - 4 Of 8)

G00025017

Courtesy of NISSAN MOTOR CO., U.S.A.

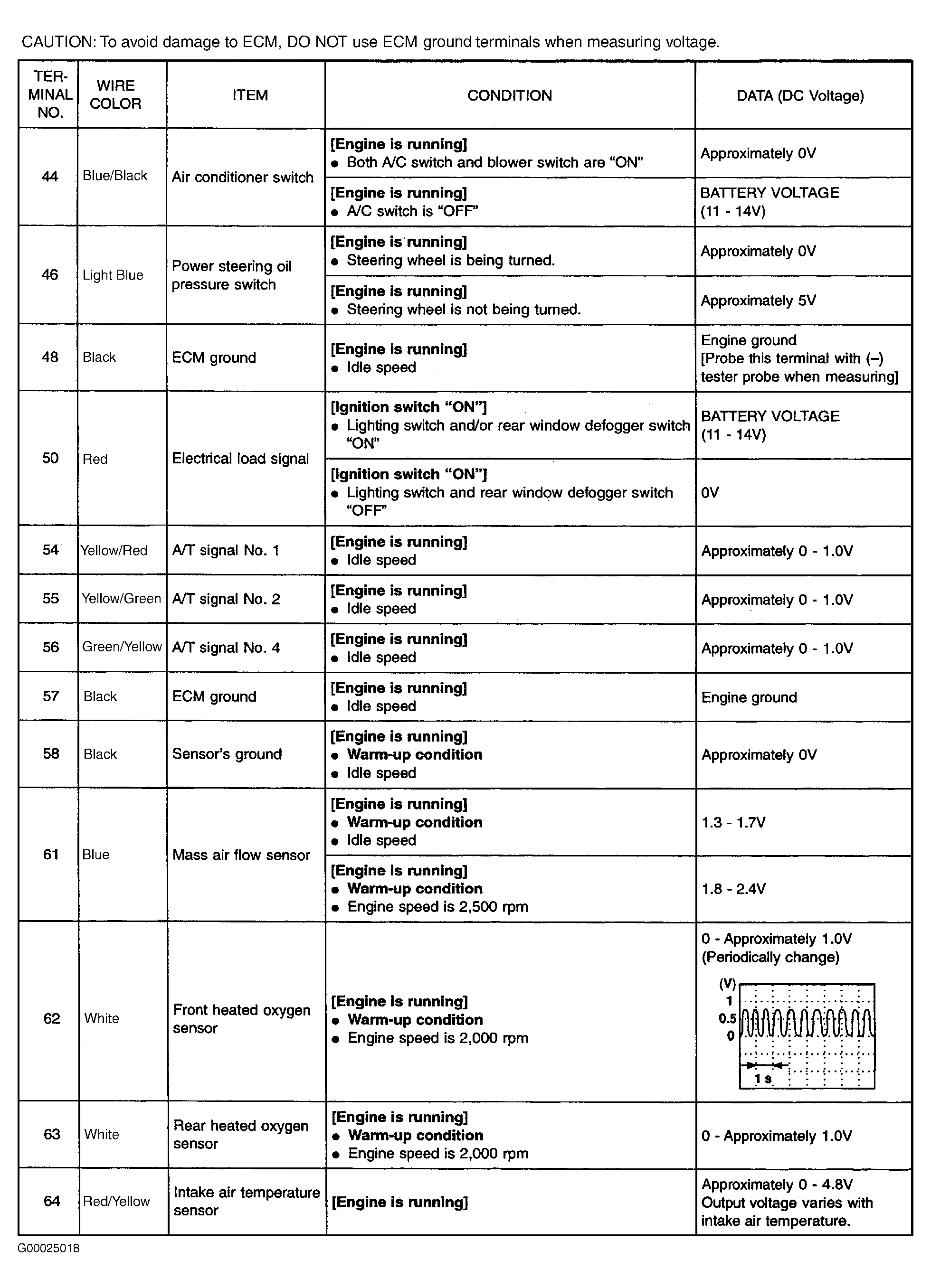

Fig 5: Pin Voltage Chart (G20 - 5 Of 8)

G00025018

Courtesy of NISSAN MOTOR CO., U.S.A.

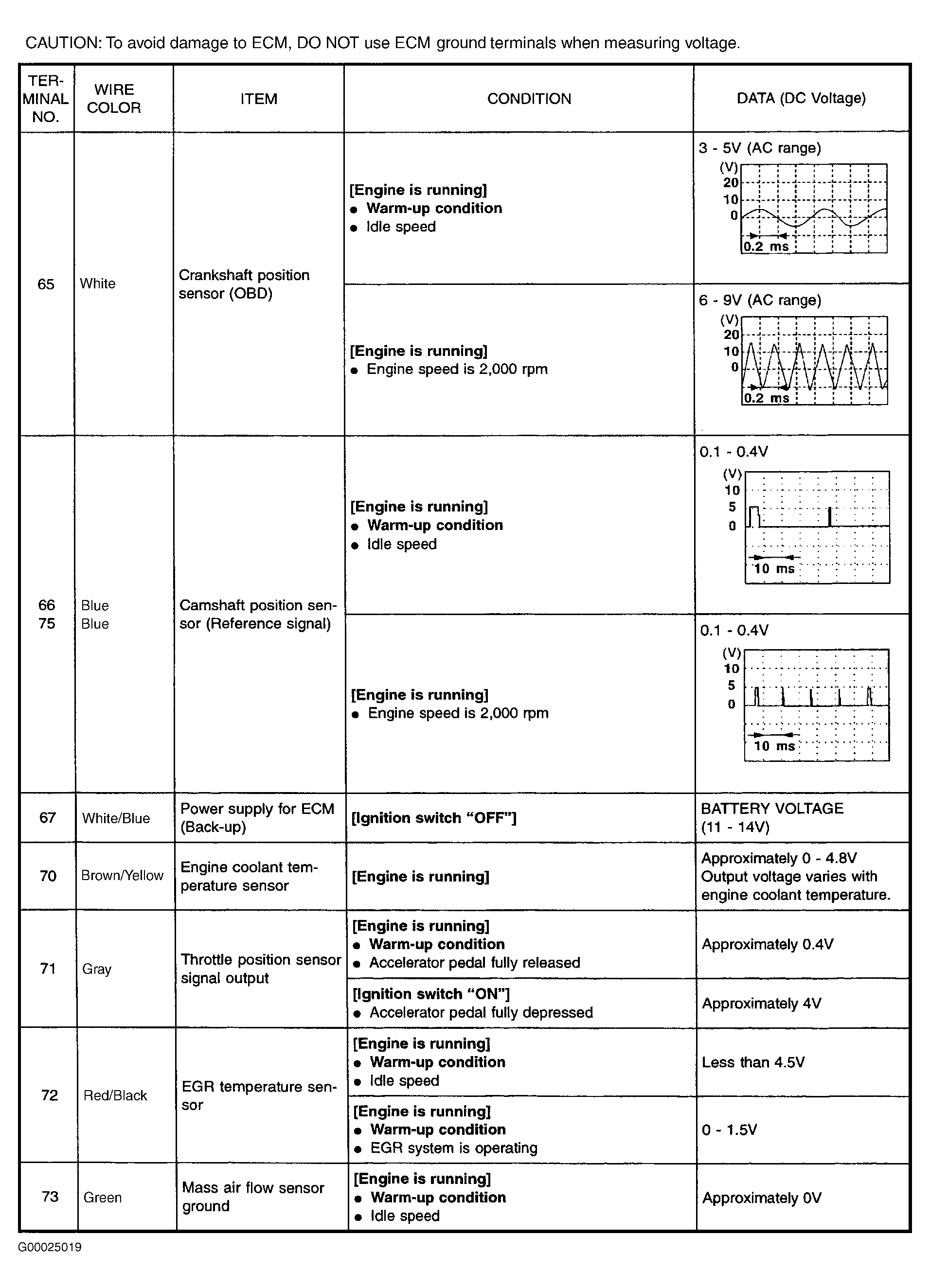

Fig 6: Pin Voltage Chart (G20 - 6 Of 8)

G00025019

Courtesy of NISSAN MOTOR CO., U.S.A.

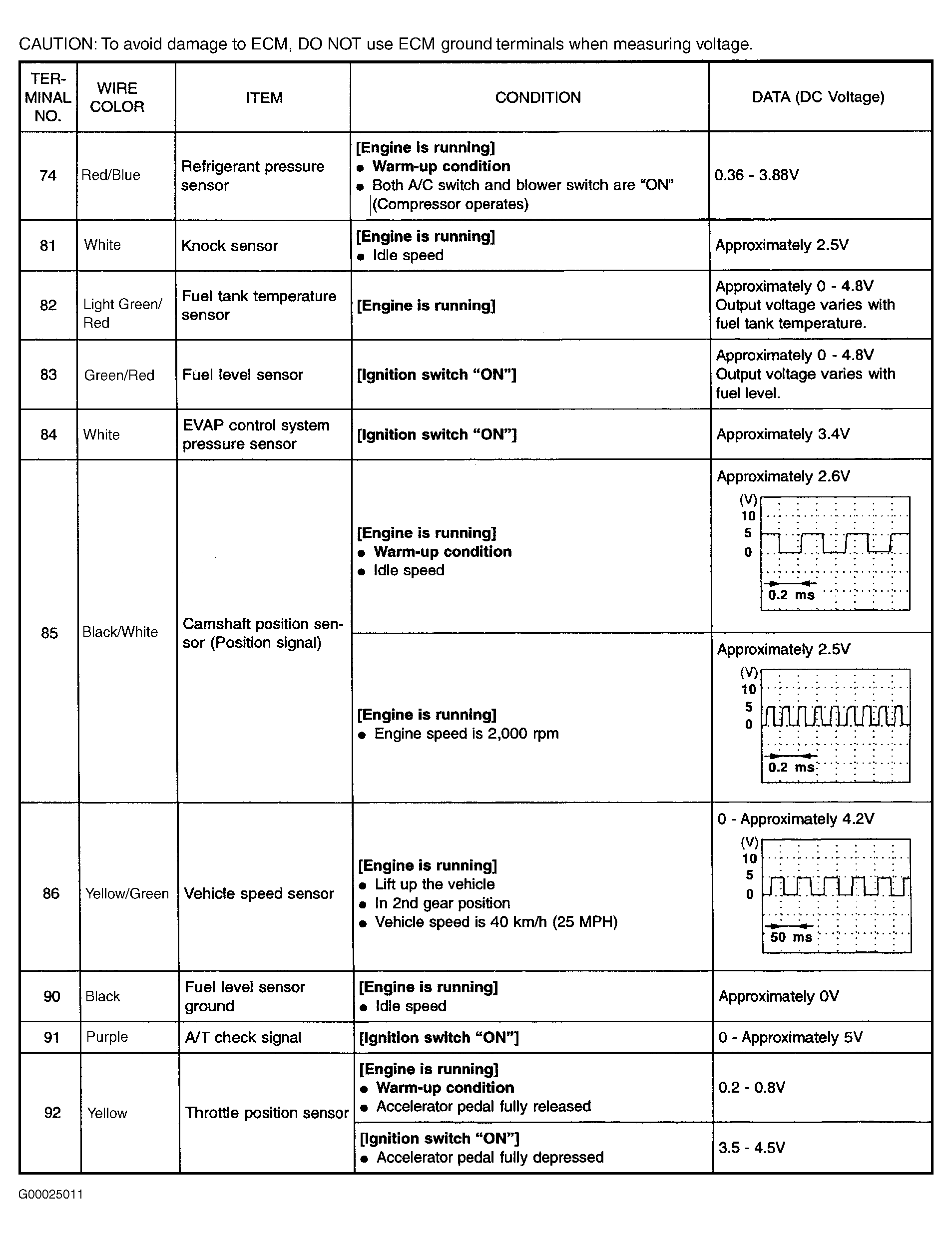

Fig 7: Pin Voltage Chart (G20 - 7 Of 8)

G00025011

Courtesy of NISSAN MOTOR CO., U.S.A.

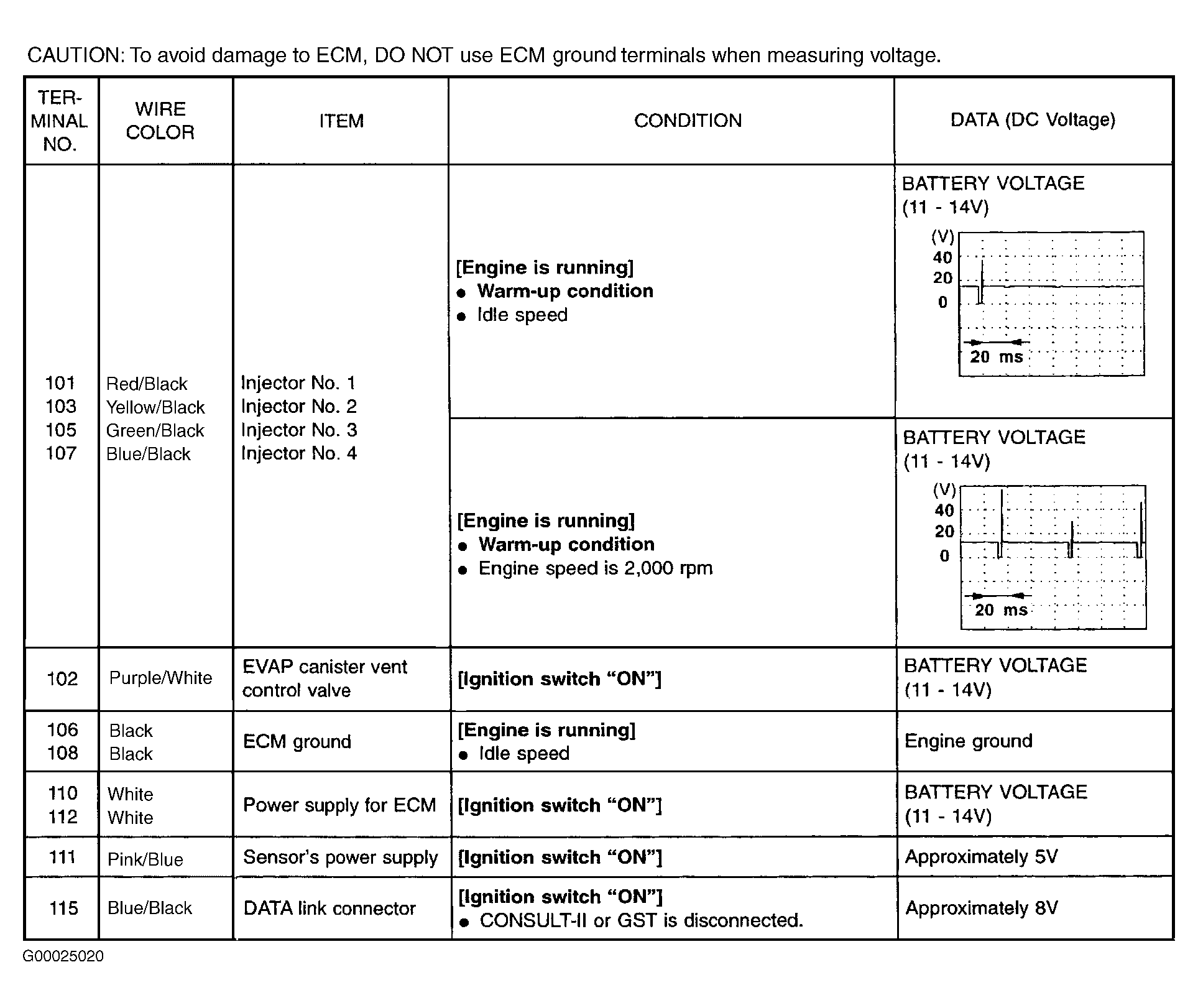

Fig 8: Pin Voltage Chart (G20 - 8 Of 8)

G00025020

Courtesy of NISSAN MOTOR CO., U.S.A.

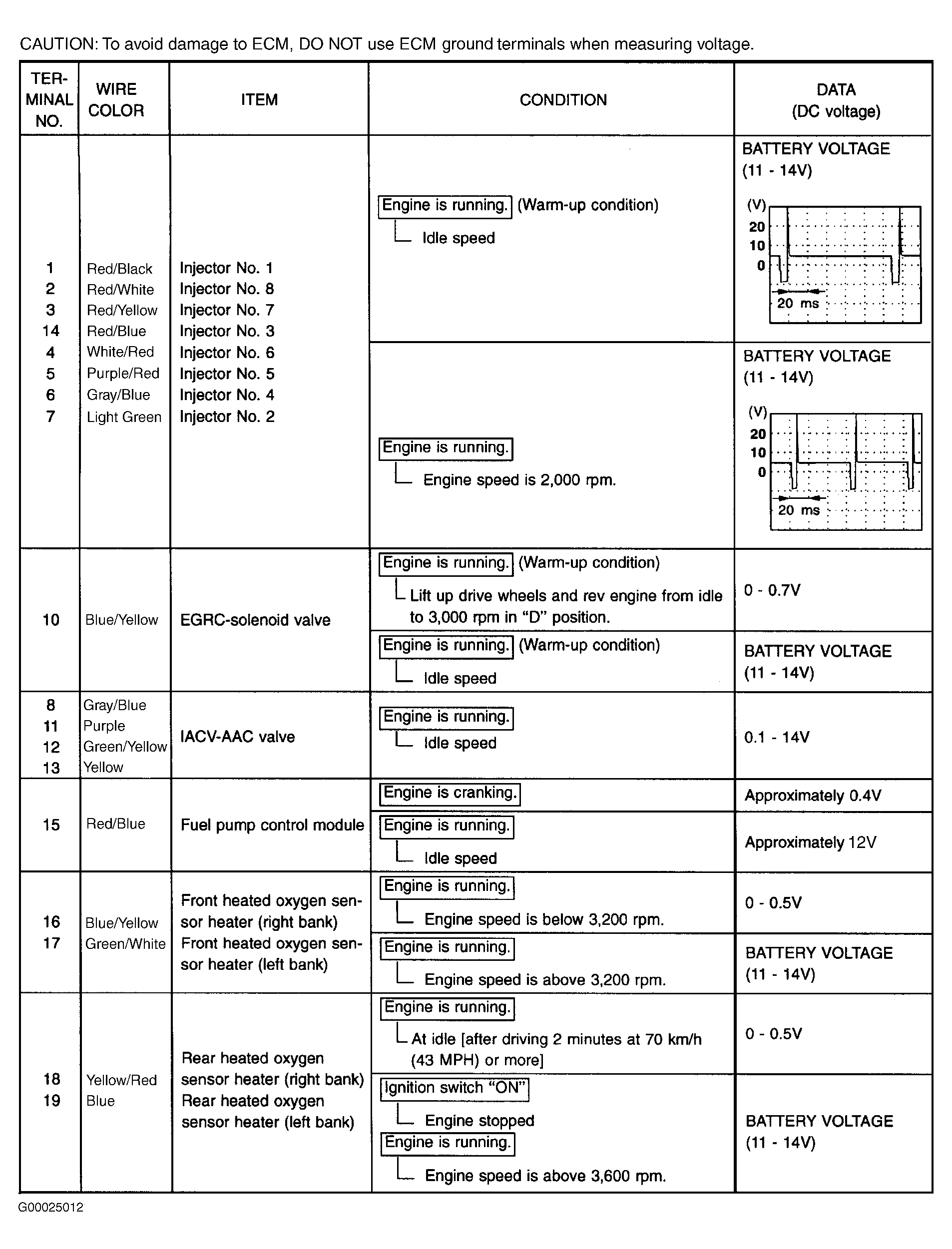

Fig 9: Pin Voltage Chart (Q45 - 1 Of 9)

G00025012

Courtesy of NISSAN MOTOR CO., U.S.A.

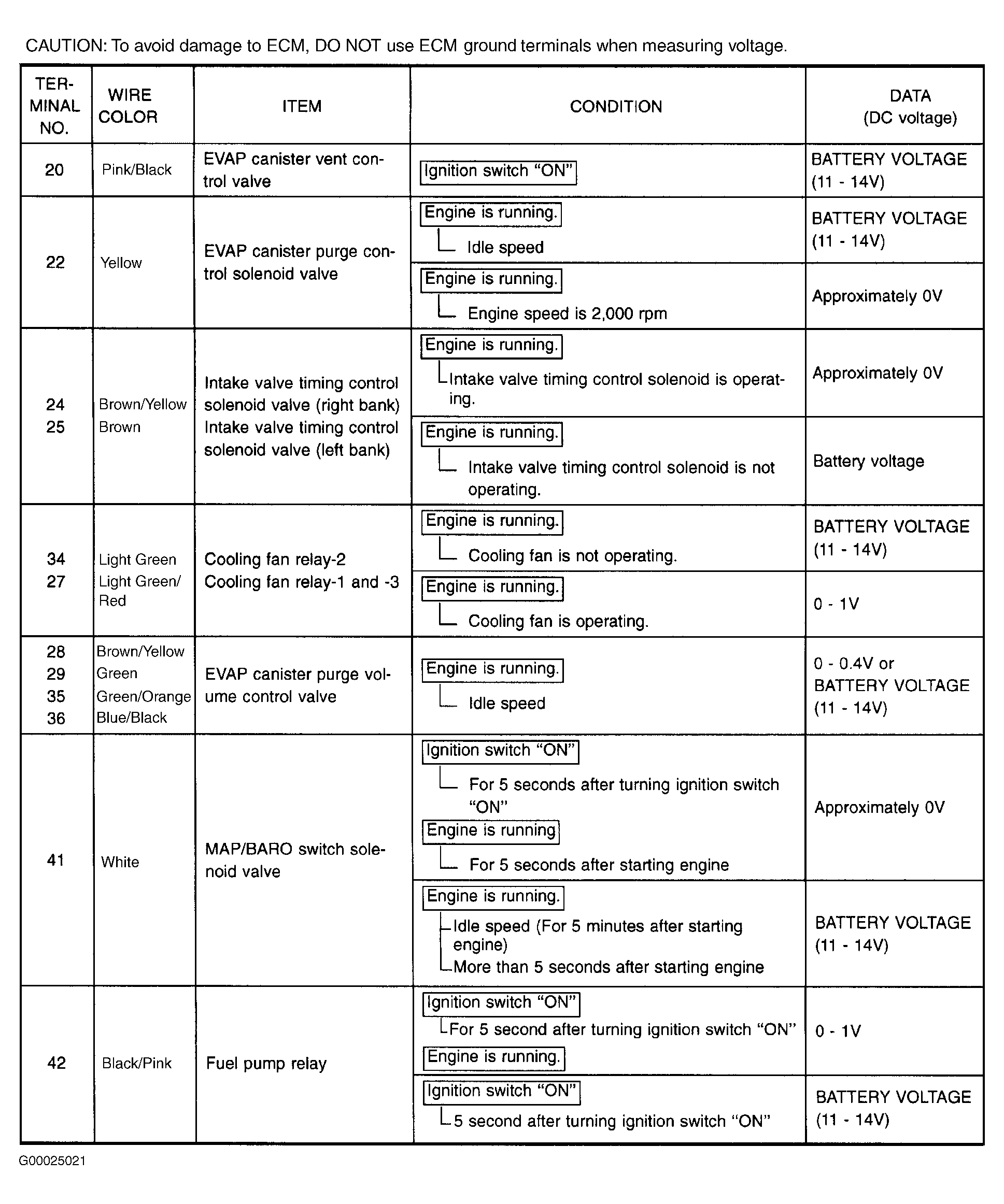

Fig 10: Pin Voltage Chart (Q45 - 2 Of 9)

G00025021

Courtesy of NISSAN MOTOR CO., U.S.A.

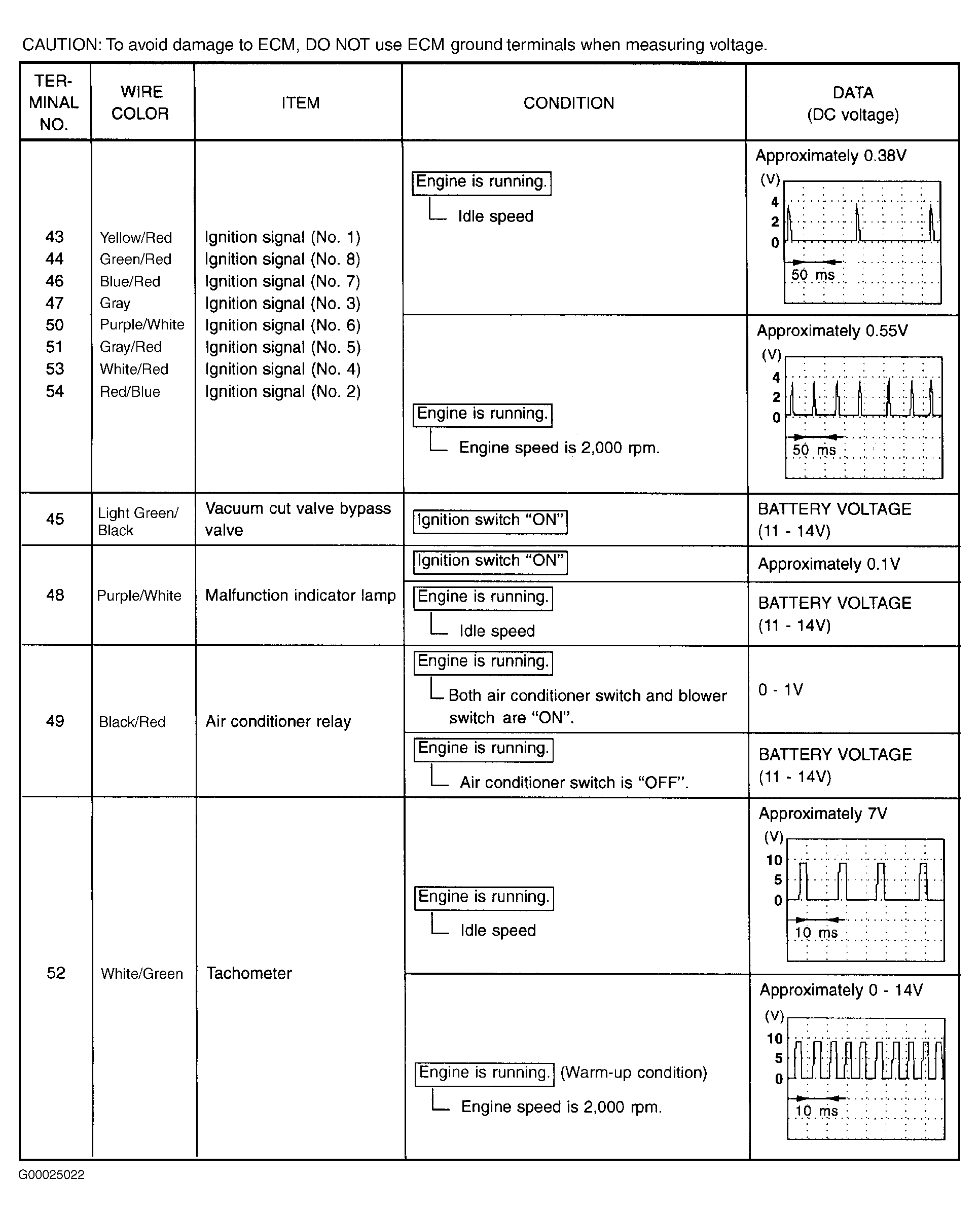

Fig 11: Pin Voltage Chart (Q45 - 3 Of 9)

G00025022

Courtesy of NISSAN MOTOR CO., U.S.A.

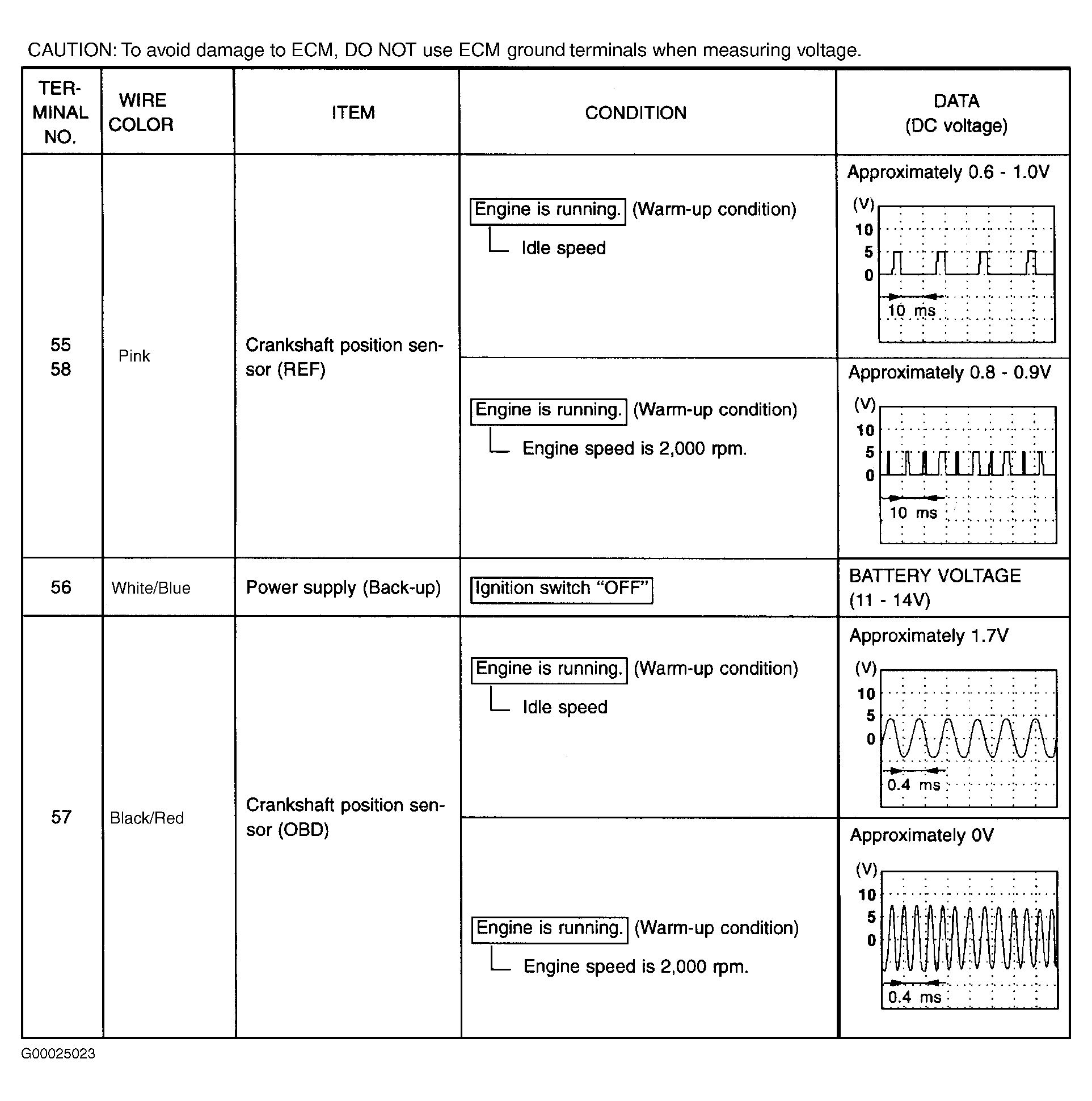

Fig 12: Pin Voltage Chart (Q45 - 4 Of 9)

G00025023

Courtesy of NISSAN MOTOR CO., U.S.A.

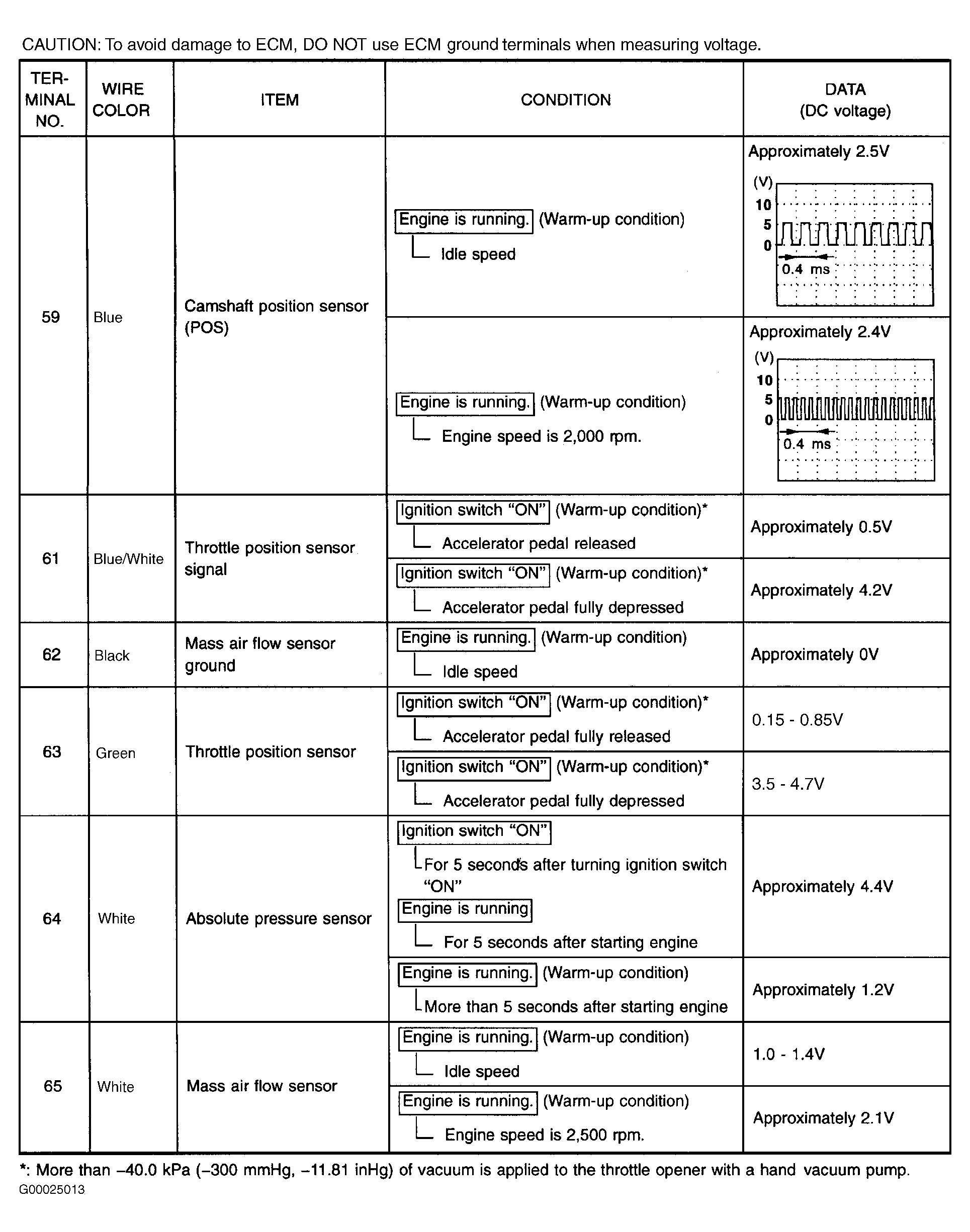

Fig 13: Pin Voltage Chart (Q45 - 5 Of 9)

G00025013

Courtesy of NISSAN MOTOR CO., U.S.A.

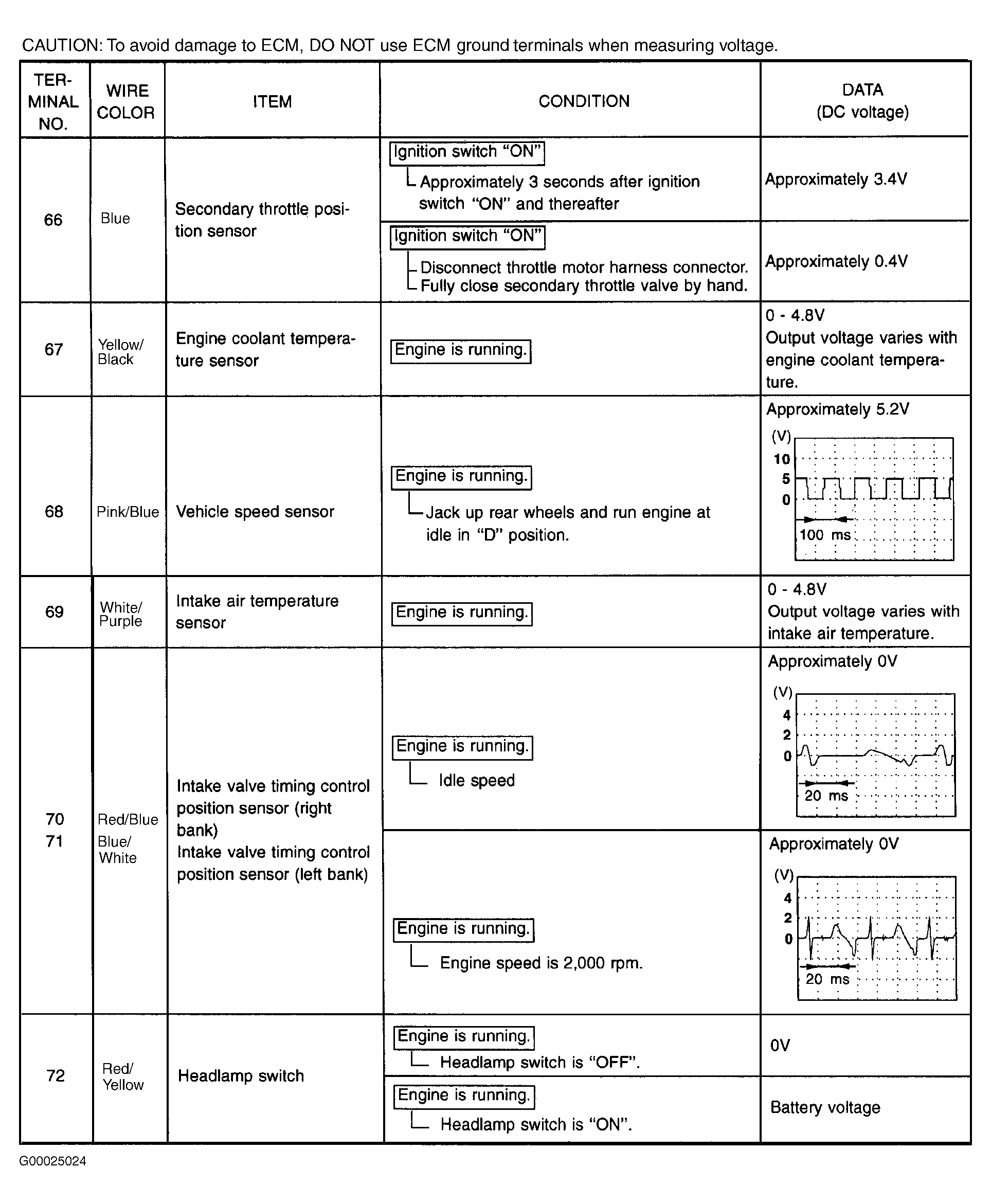

Fig 14: Pin Voltage Chart (Q45 - 6 Of 9)

G00025024

Courtesy of NISSAN MOTOR CO., U.S.A.

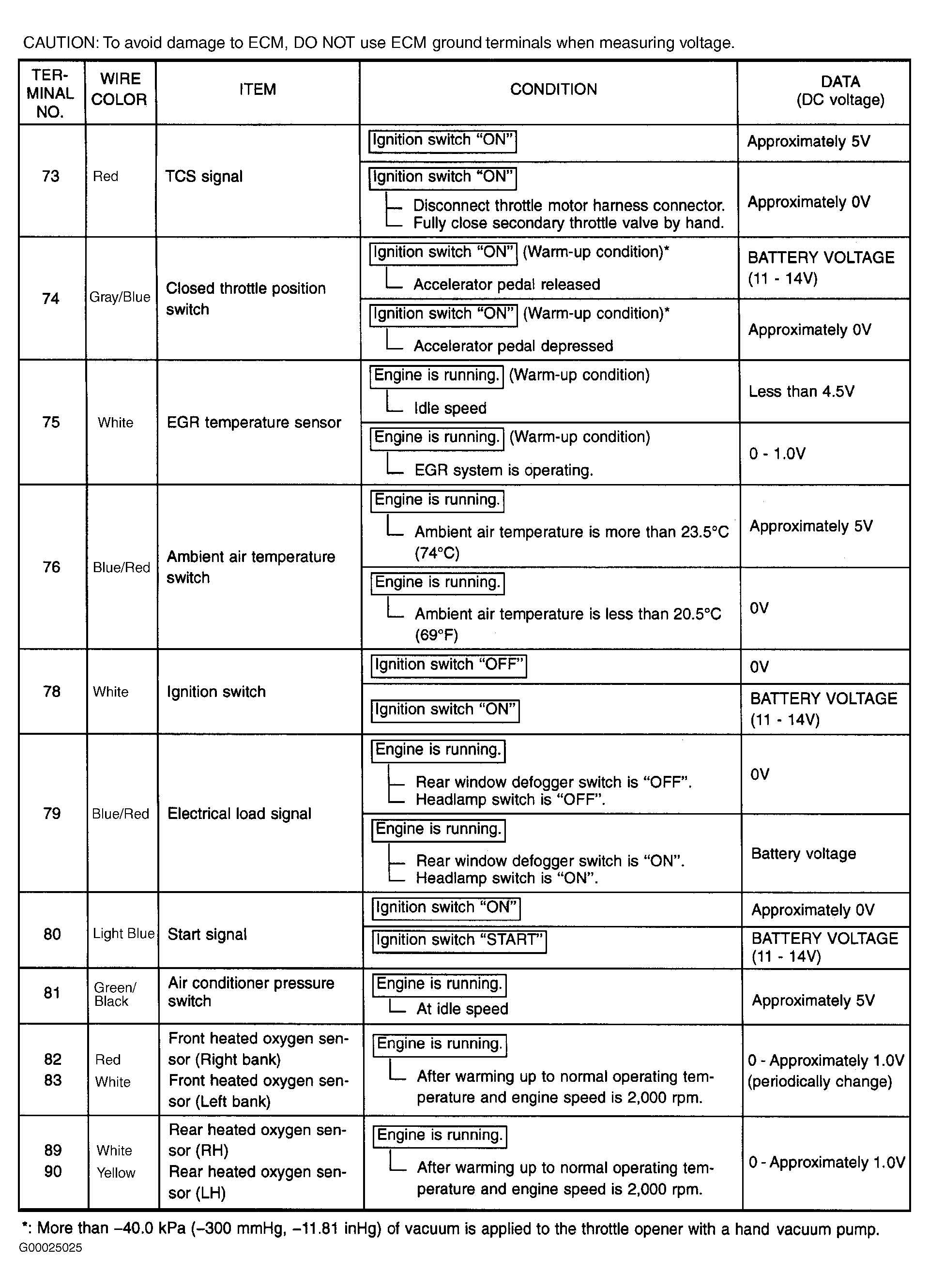

Fig 15: Pin Voltage Chart (Q45 - 7 Of 9)

G00025025

Courtesy of NISSAN MOTOR CO., U.S.A.

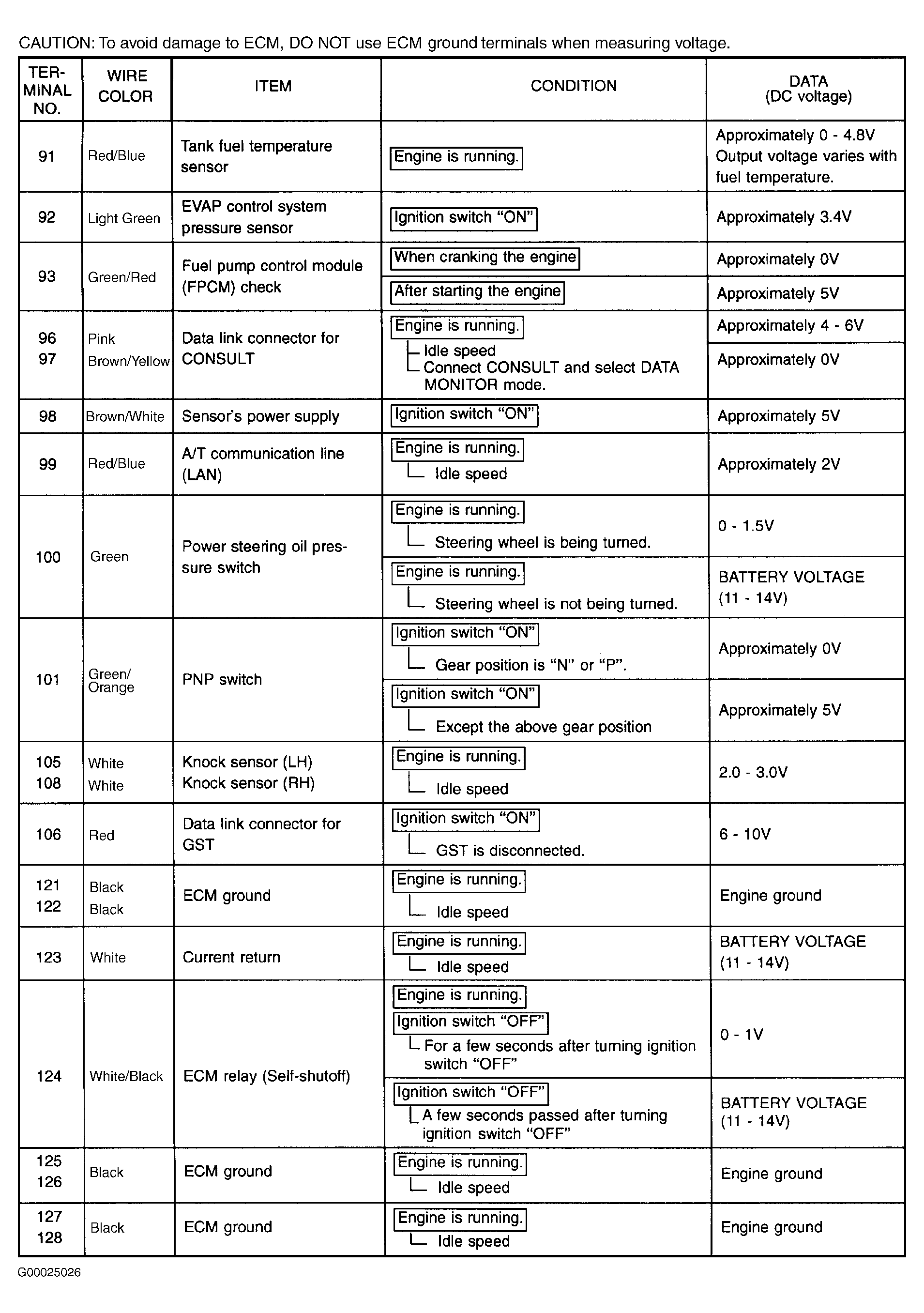

Fig 16: Pin Voltage Chart (Q45 - 8 Of 9)

G00025026

Courtesy of NISSAN MOTOR CO., U.S.A.

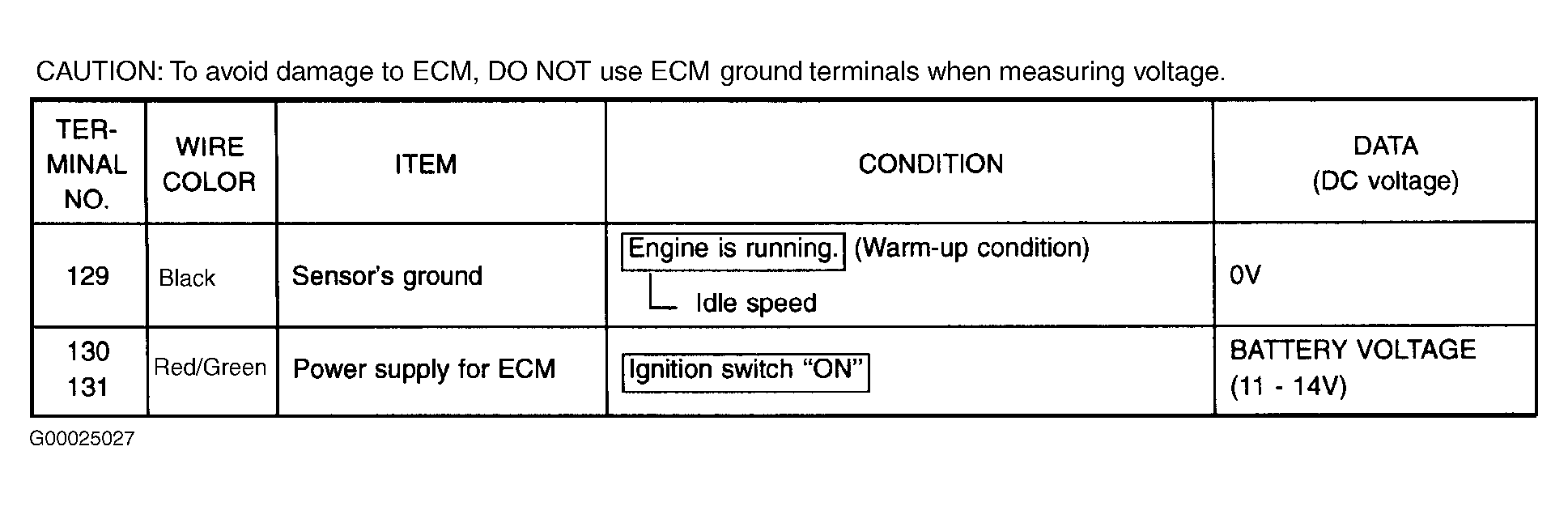

Fig 17: Pin Voltage Chart (Q45 - 9 Of 9)

G00025027

Courtesy of NISSAN MOTOR CO., U.S.A.
