Abs Warning Light

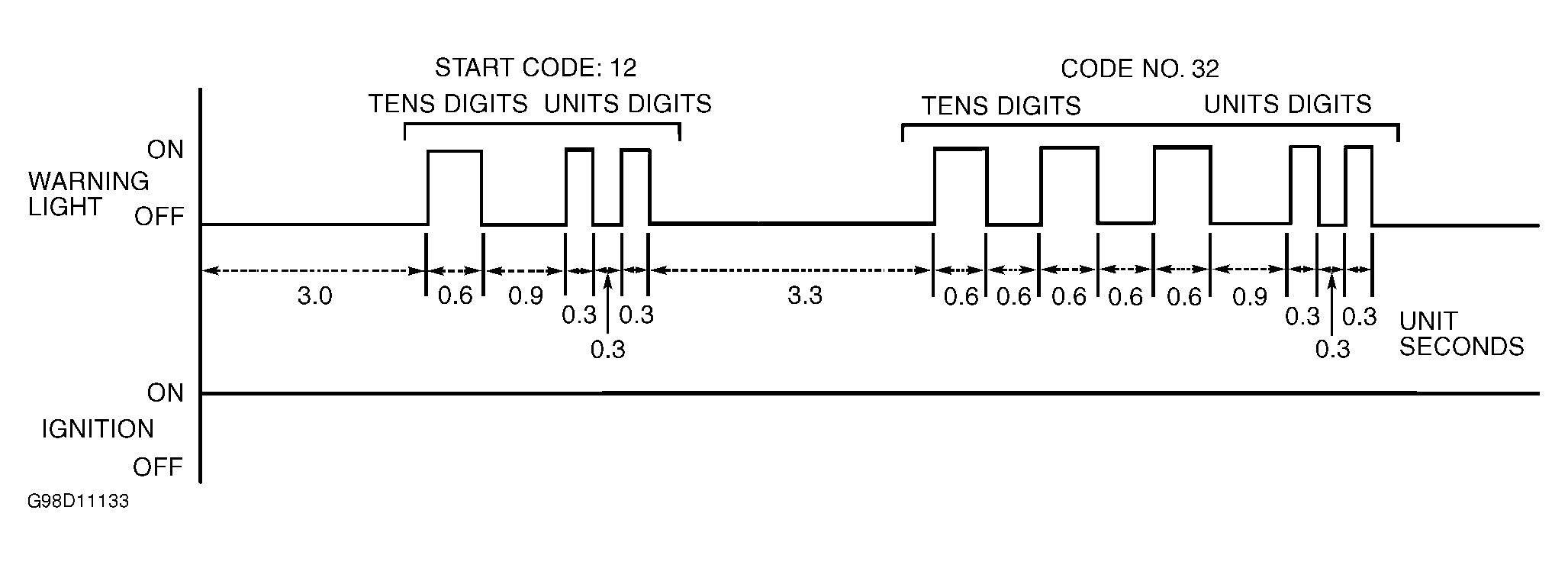

When a problem occurs in ABS, the ABS warning light on left side of instrument cluster comes on. ABS warning light flashes Diagnostic Trouble Codes (DTCs) when Data Link Connector (DLC) terminal is grounded. See Figure .
