Repair and Diagnosis
>>
Engine Performance
>>
Vacuum Diagrams
>>
Introduction
>>
Pathfinder & QX4
Pathfinder & QX4

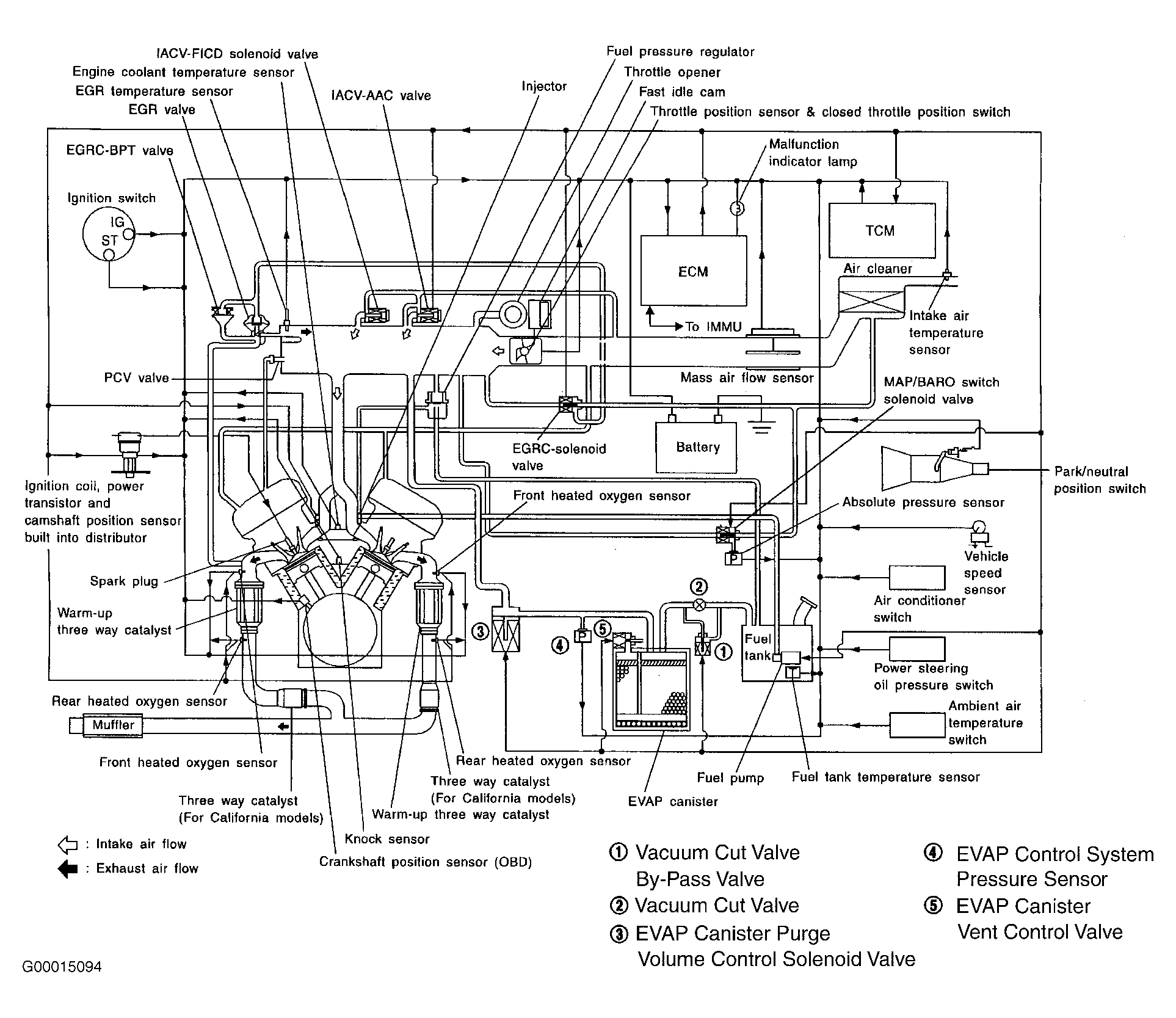

Fig 1: Engine Control System Vacuum Diagram (Pathfinder & QX4)
Courtesy of NISSAN MOTOR CO., U.S.A.

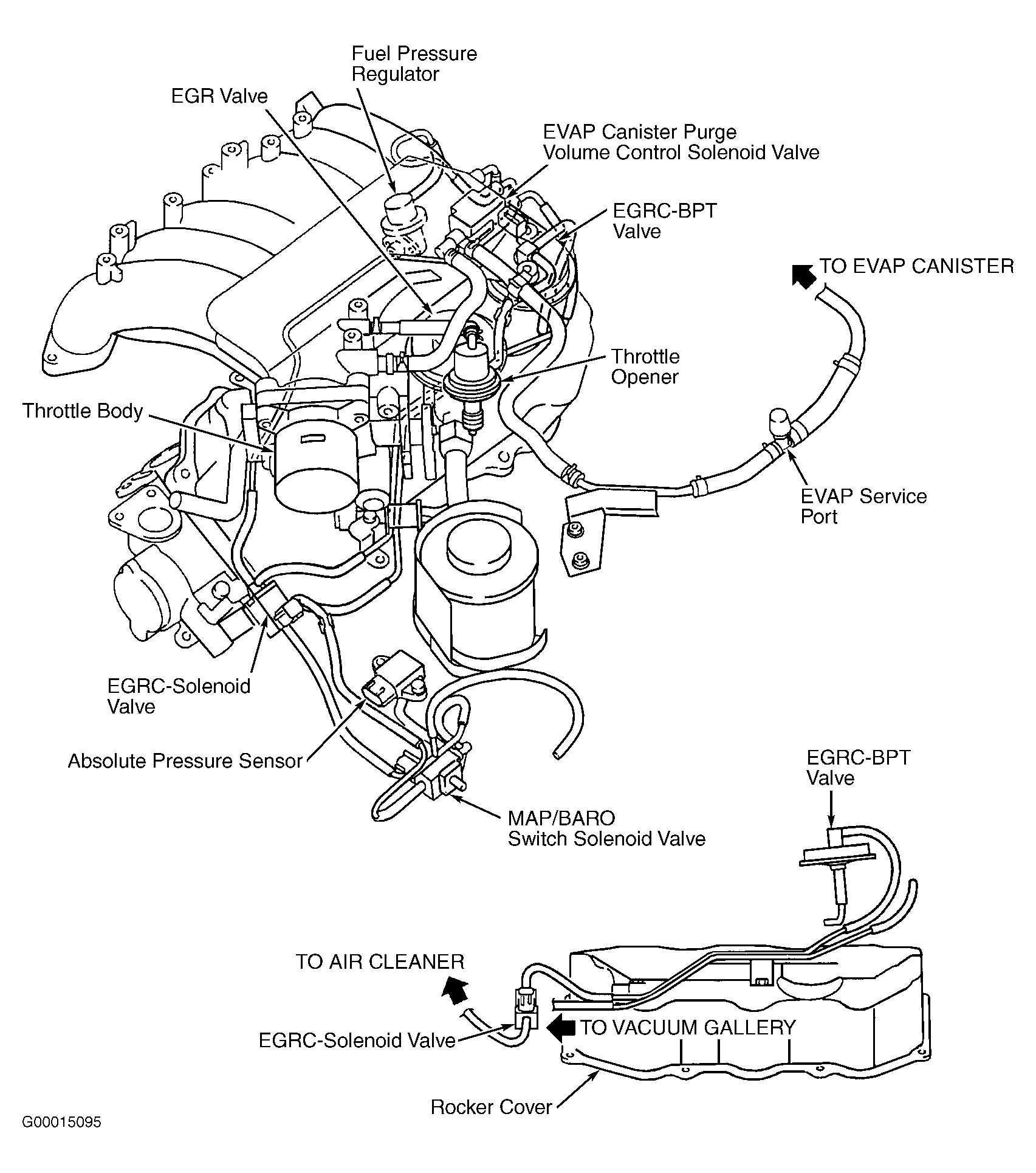

Fig 2: Identifying Engine Vacuum Hose Routing (Pathfinder & QX4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
