Repair and Diagnosis
>>
Engine Performance
>>
Vacuum Diagrams
>>
Introduction
>>
Maxima & Infiniti I30
Maxima & Infiniti I30

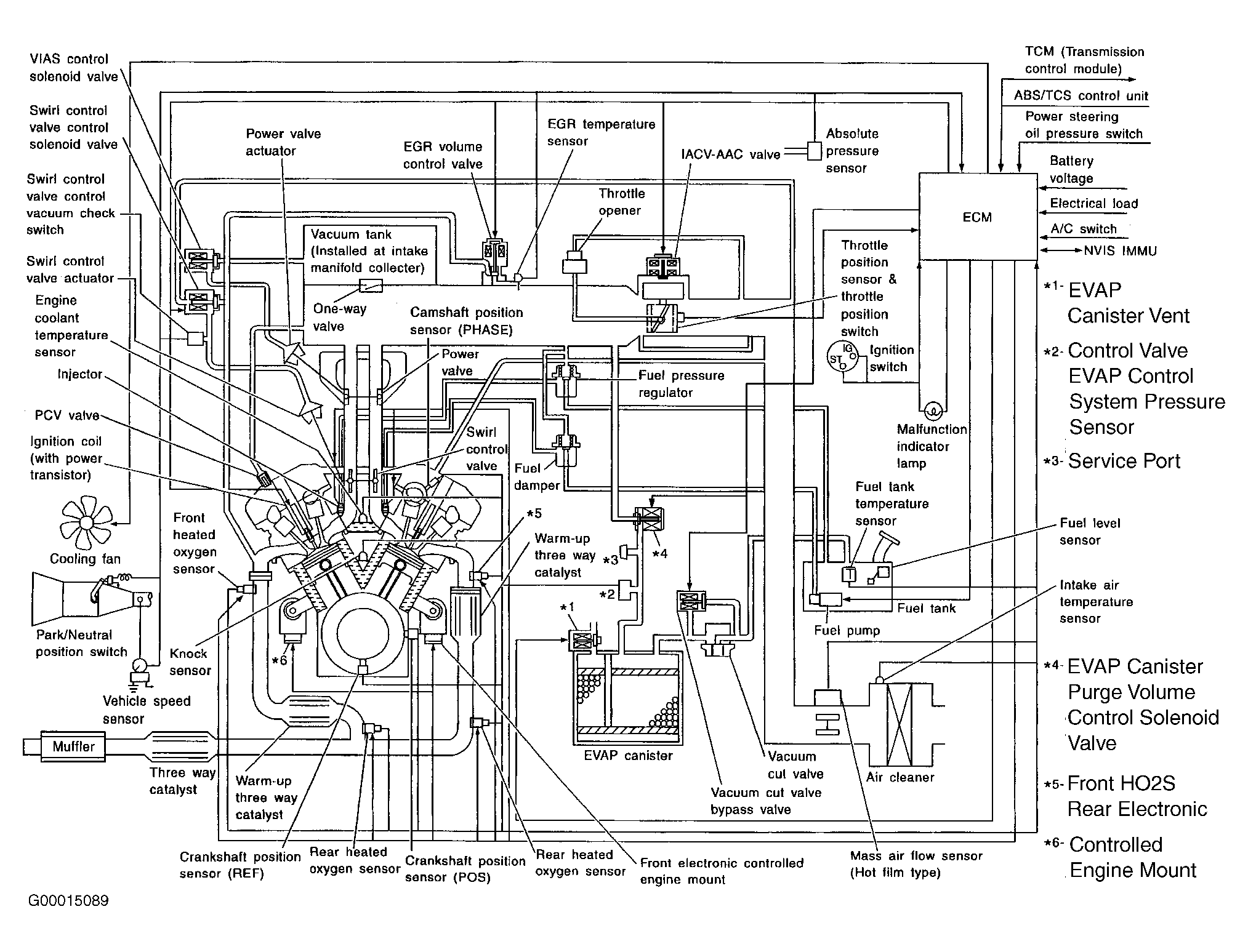

Fig 1: Engine Control System Vacuum Diagram (Maxima & Infiniti I30 - Except California)
Courtesy of NISSAN MOTOR CO., U.S.A.

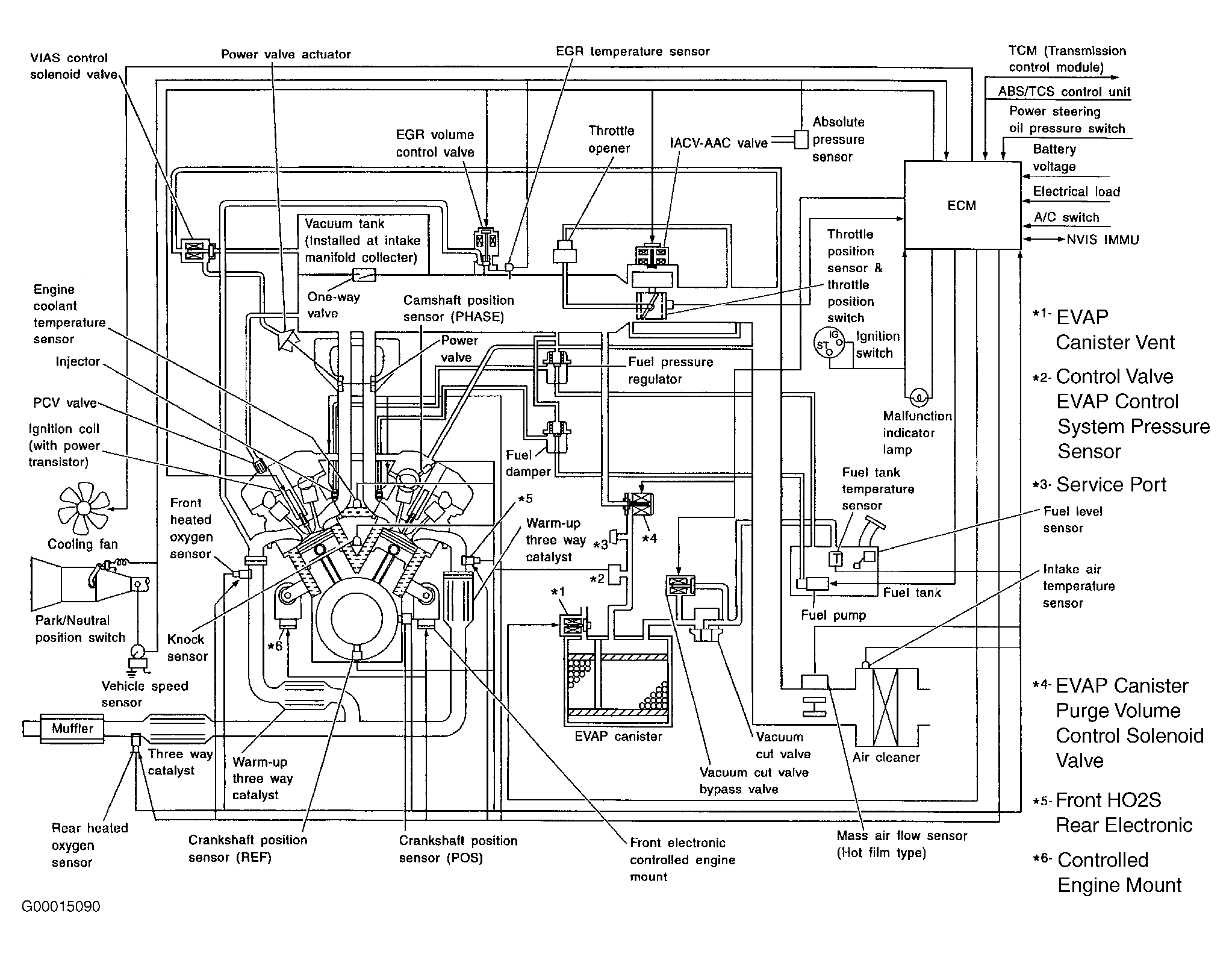

Fig 2: Engine Control System Vacuum Diagram (Maxima & Infiniti I30 - California)
Courtesy of NISSAN MOTOR CO., U.S.A.

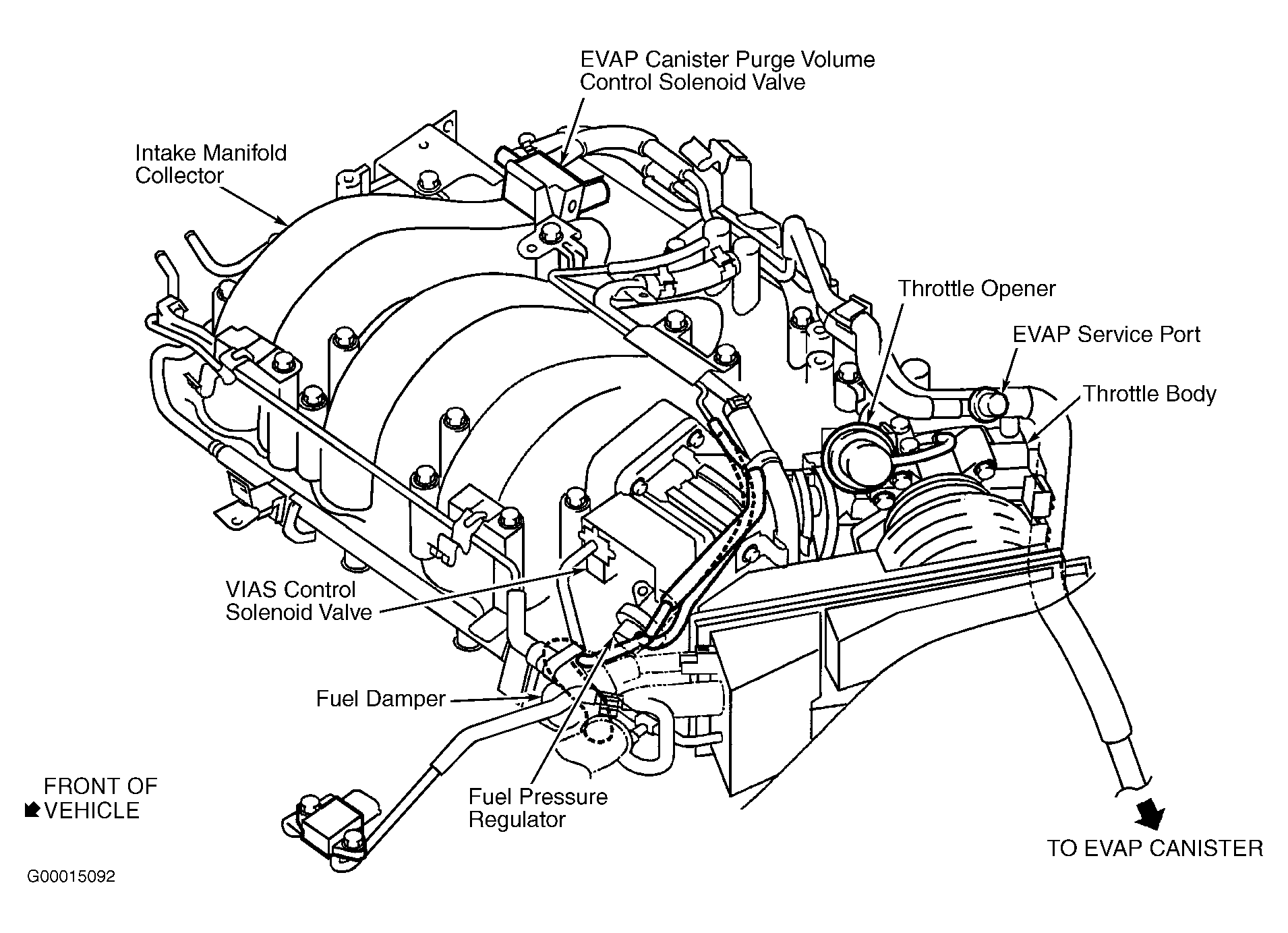

Fig 3: Identifying Engine Vacuum Hose Routing (Maxima & Infiniti I30 - Except California)
Courtesy of NISSAN MOTOR CO., U.S.A.

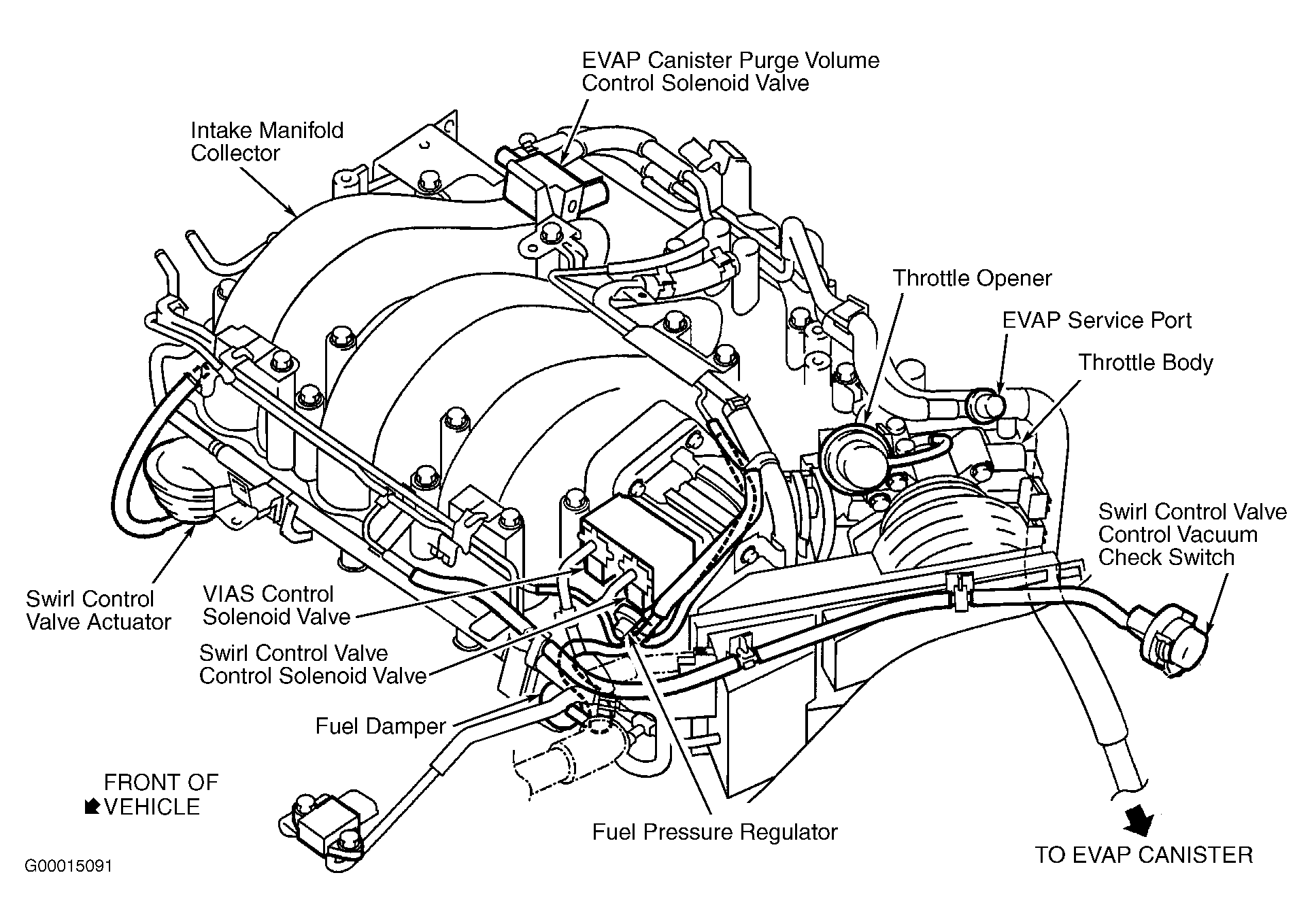

Fig 4: Identifying Engine Vacuum Hose Routing (Maxima & Infiniti I30 - California)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: On Board Refueling Vapor Recovery (ORVR) Vacuum Diagram (Maxima & Infiniti I30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
