Repair and Diagnosis
>>
Engine Performance
>>
Vacuum Diagrams
>>
Introduction
>>
Frontier & Xterra
Frontier & Xterra

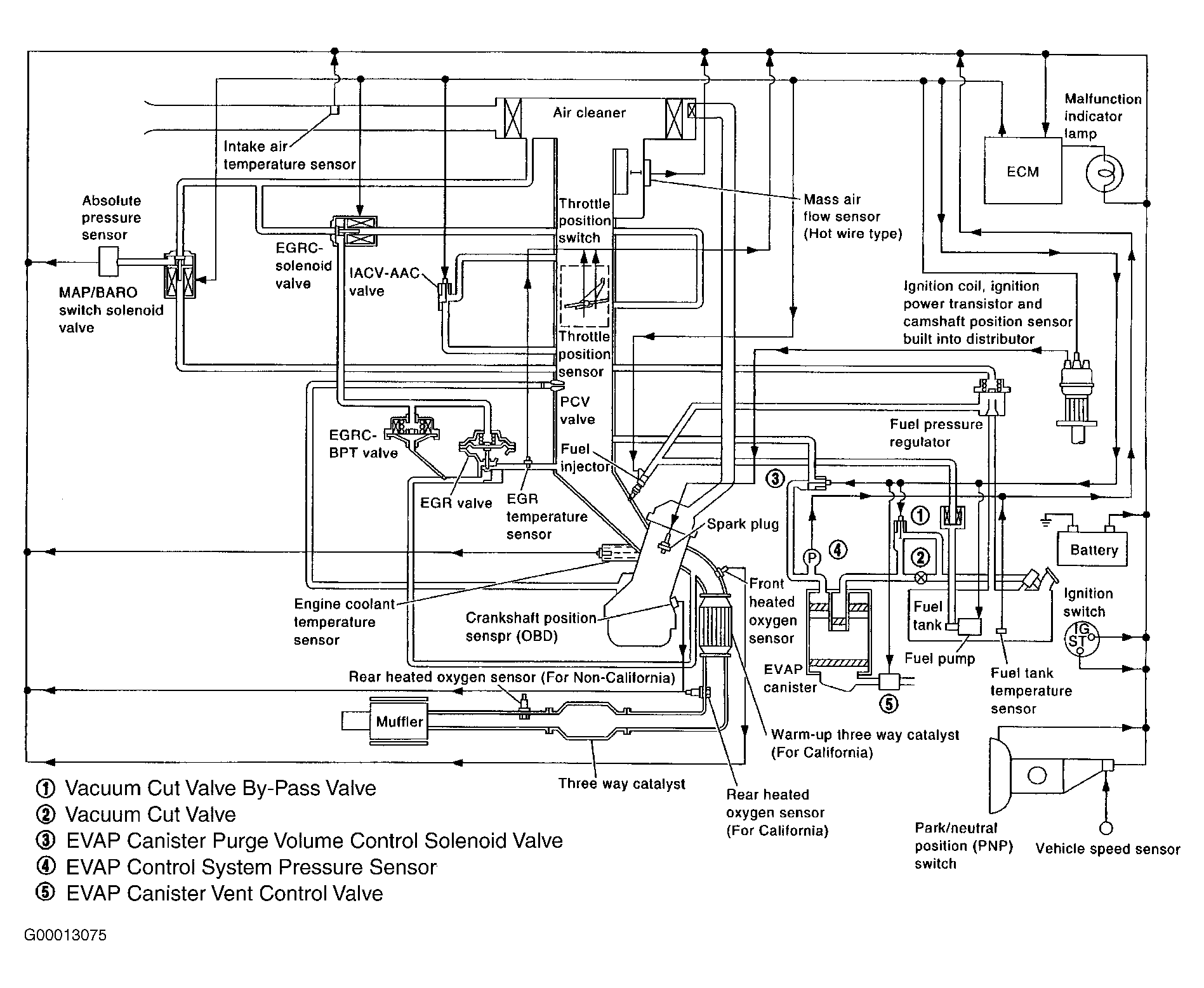

Fig 1: Engine Control System Vacuum Diagram (Frontier & Xterra 4-Cylinder)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Engine Vacuum Hose Routing (Frontier & Xterra 4-Cylinder)
Courtesy of NISSAN MOTOR CO., U.S.A.

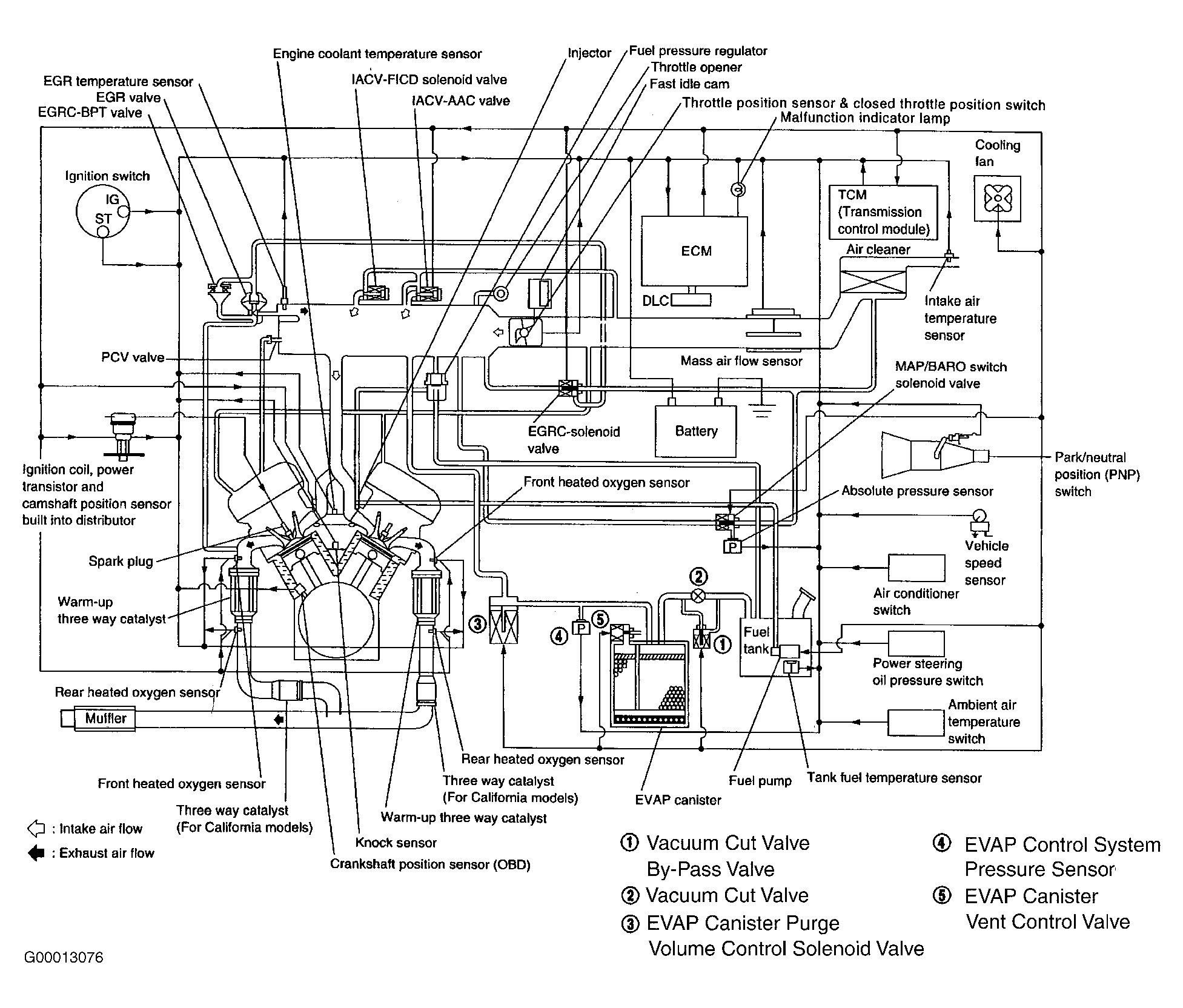

Fig 3: Engine Control System Vacuum Diagram (Frontier V6 - Except Crew Cab & 2WD King Cab)
Courtesy of NISSAN MOTOR CO., U.S.A.

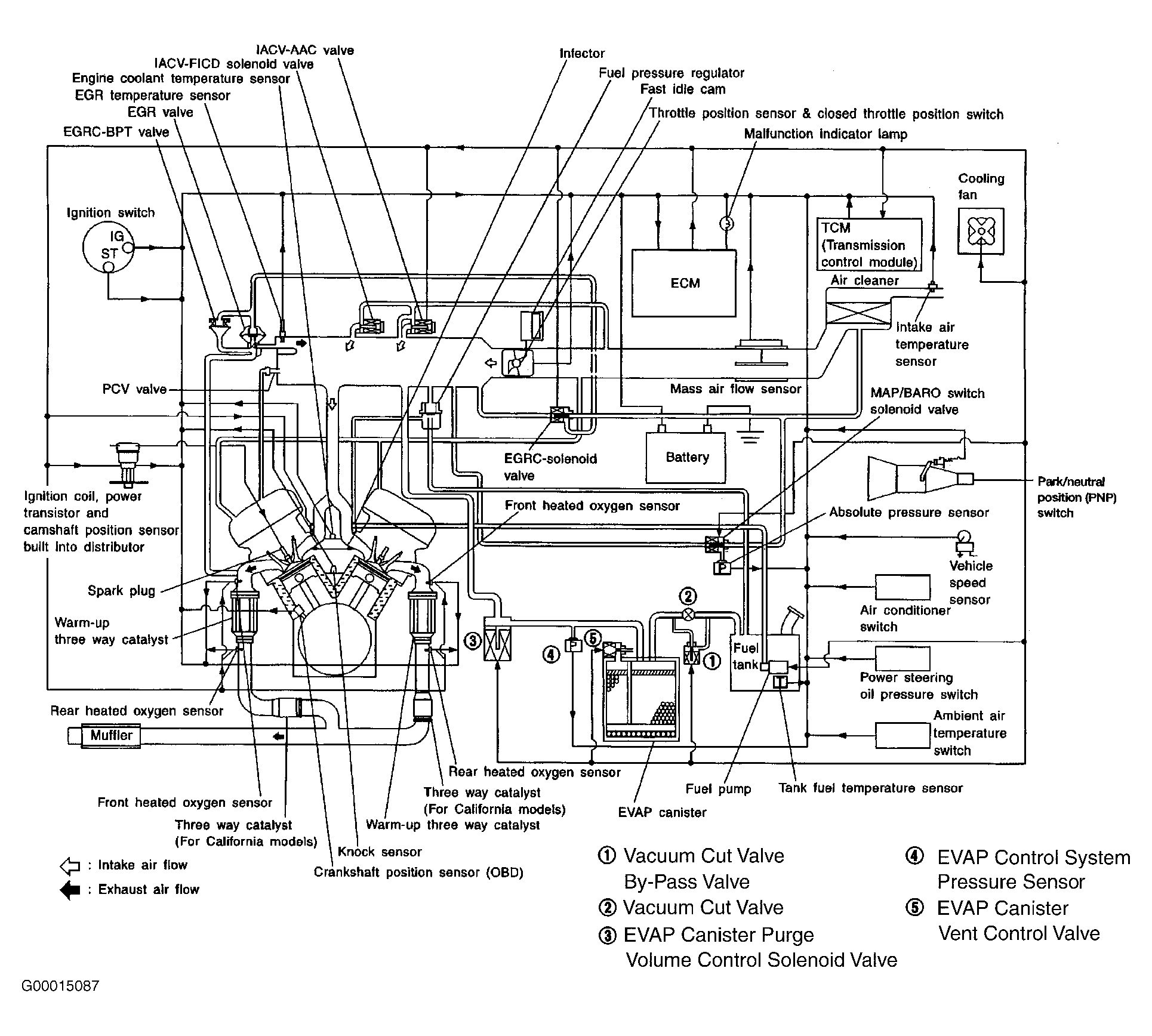

Fig 4: Engine Control System Vacuum Diagram (Frontier V6 Crew Cab & 2WD King Cab & Xterra V6)
Courtesy of NISSAN MOTOR CO., U.S.A.

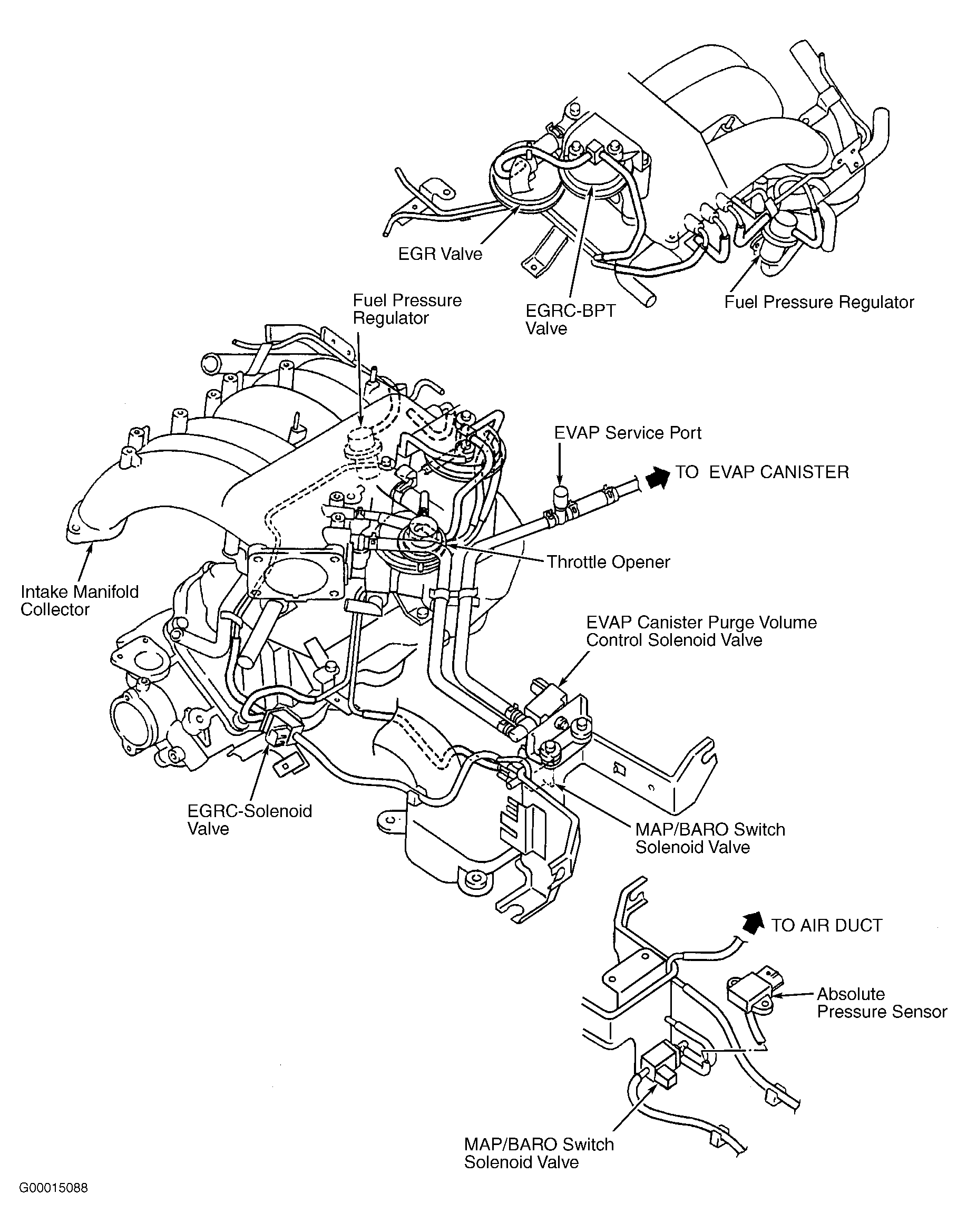

Fig 5: Identifying Engine Vacuum Hose Routing (Frontier V6 - Except Crew Cab & 2WD King Cab)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Engine Vacuum Hose Routing (Frontier V6 Crew Cab & 2WD King Cab & Xterra V6)
Courtesy of NISSAN MOTOR CO., U.S.A.
