Jacking & Hoisting: Hoisting

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2000 Nissan Sentra, 2000 Nissan Quest, 2000 Nissan Pathfinder, 2000 Nissan Maxima, and 2000 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Position lift blocks on reinforced support points of side body panels, between front and rear wheels. If necessary, use wooden or rubber block to ensure proper clearance.

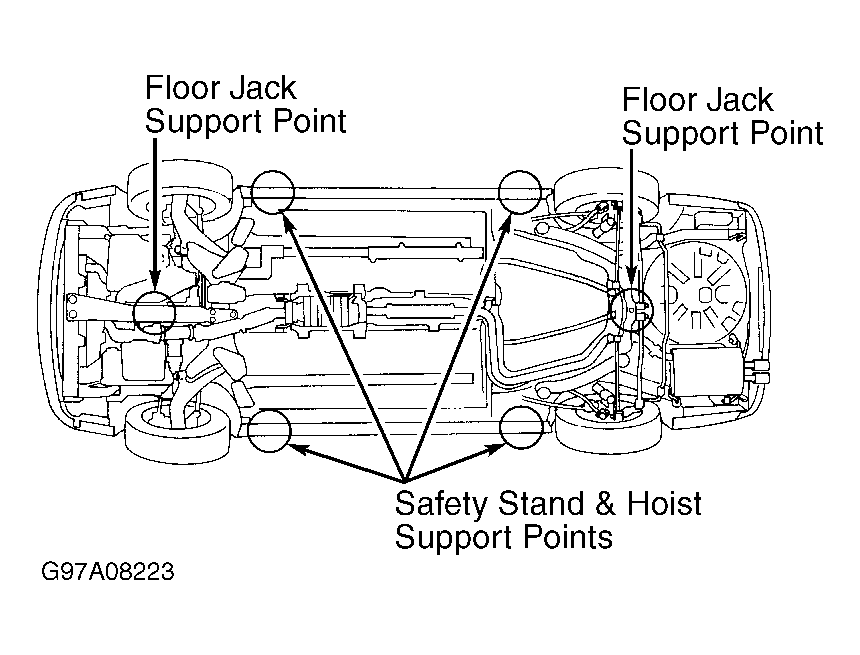

Fig 1: Vehicle Underbody Points For Jacking & Hoisting (Altima & Sentra)
G97A08223Courtesy of NISSAN MOTOR CO., U.S.A.

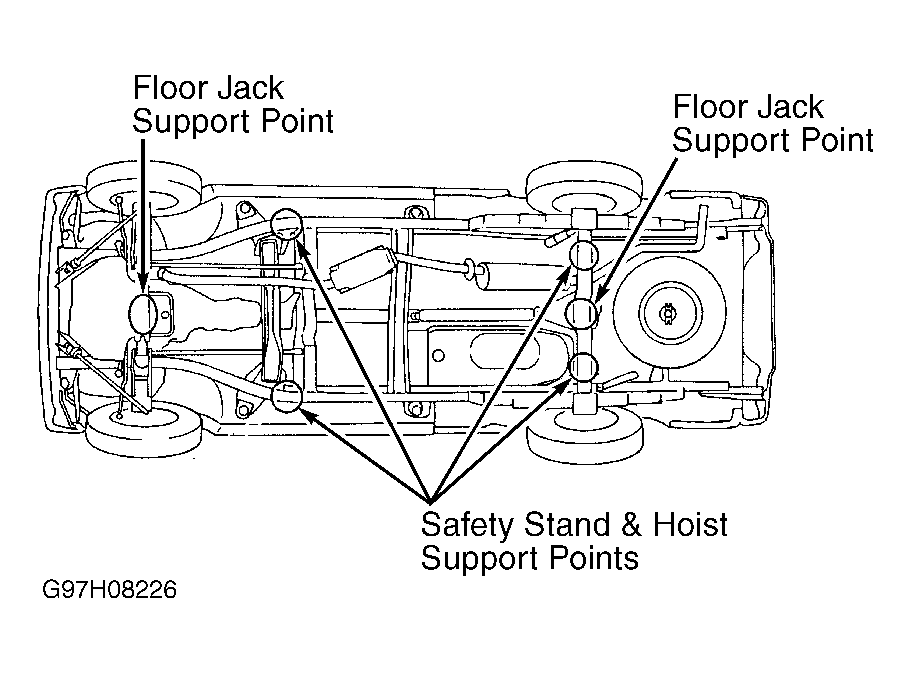

Fig 2: Vehicle Frame & Underbody Points For Jacking & Hoisting (Frontier & Xterra 2WD )
G97H08226Courtesy of NISSAN MOTOR CO., U.S.A.

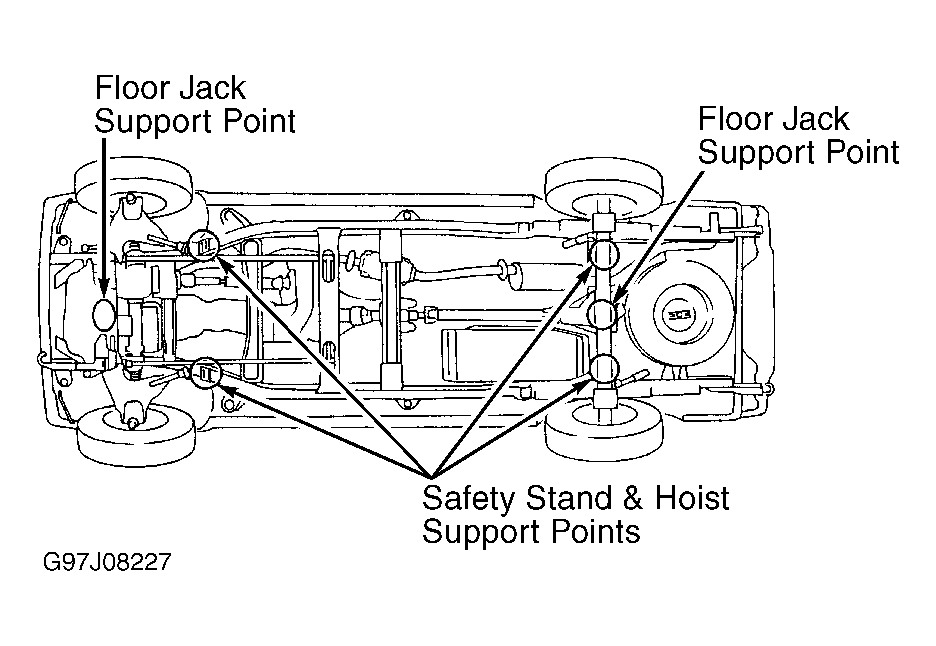

Fig 3: Vehicle Frame & Underbody Points For Jacking & Hoisting (Frontier & Xterra 4WD )
G97J08227Courtesy of NISSAN MOTOR CO., U.S.A.

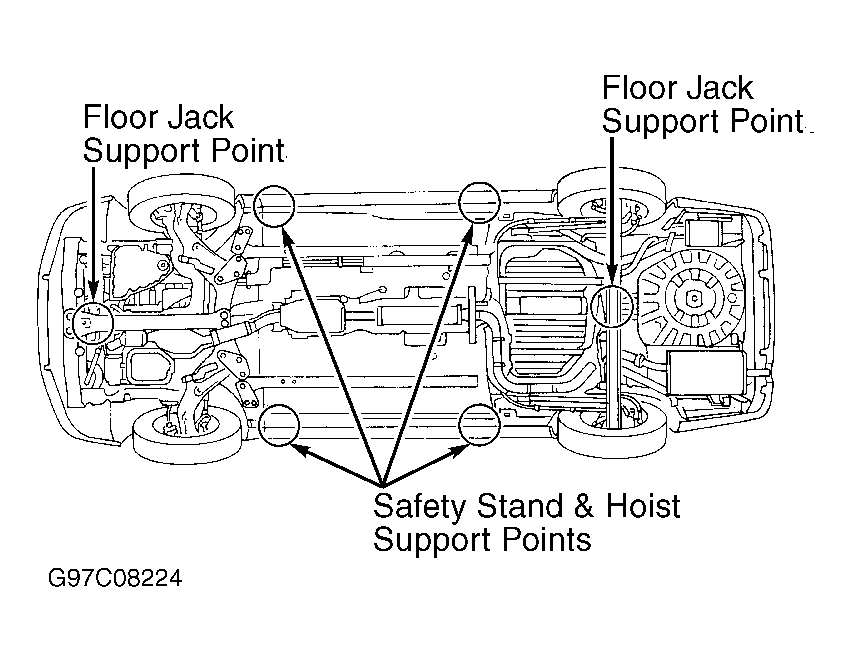

Fig 4: Vehicle Underbody Points For Jacking & Hoisting (Maxima)
G97C08224Courtesy of NISSAN MOTOR CO., U.S.A.

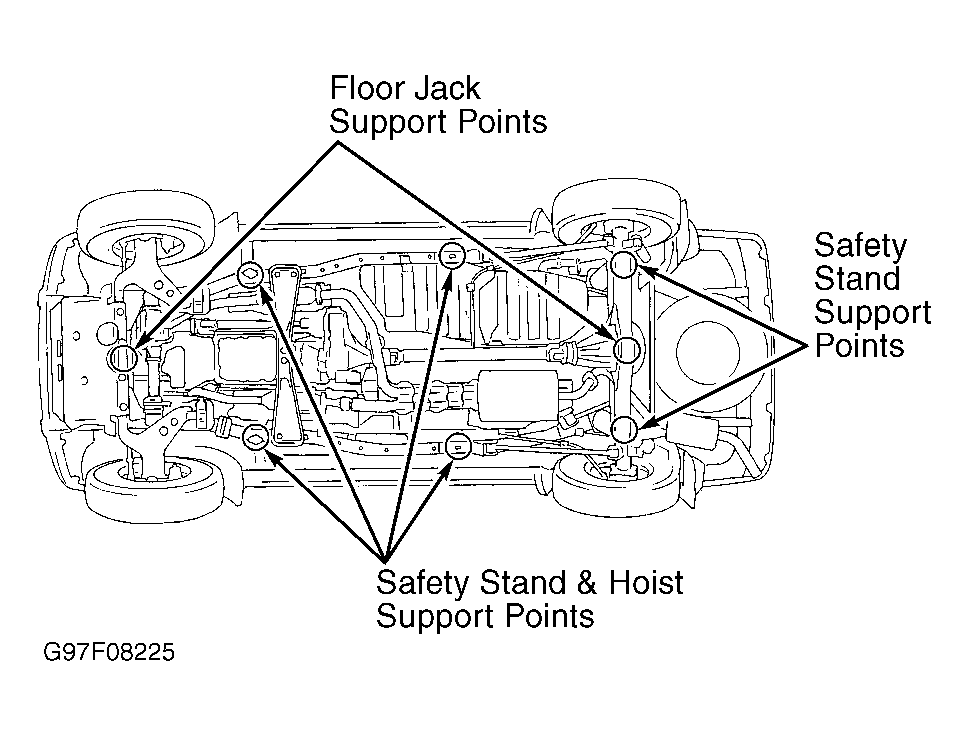

Fig 5: Vehicle Frame & Underbody Points For Jacking & Hoisting (Pathfinder)
G97F08225Courtesy of NISSAN MOTOR CO., U.S.A.

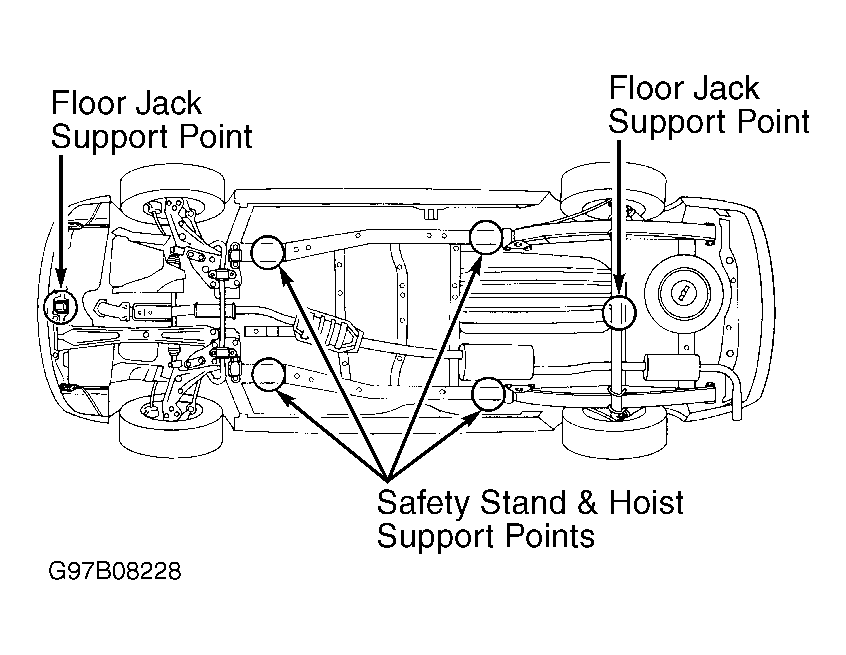

Fig 6: Vehicle Frame & Underbody Points For Jacking & Hoisting (Quest)
G97B08228Courtesy of NISSAN MOTOR CO., U.S.A.
