Accelerator Cable
CAUTION:
DO NOT twist or scratch cable wire during adjustment procedure.

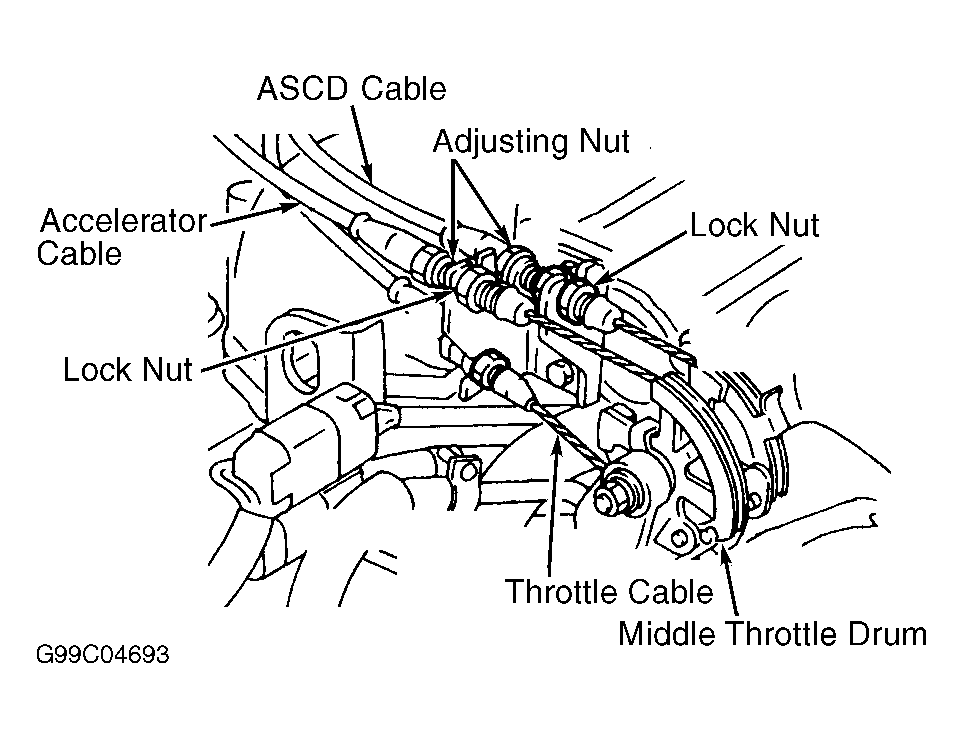

- Loosen accelerator cable lock nut. See Fig 1 . Ensure there is no tension on throttle drum from ASCD cable. Tighten accelerator cable adjusting nut until middle throttle drum starts to move. Tighten accelerator cable lock nut to 69-96 INCH lbs. (8-11 N.m).

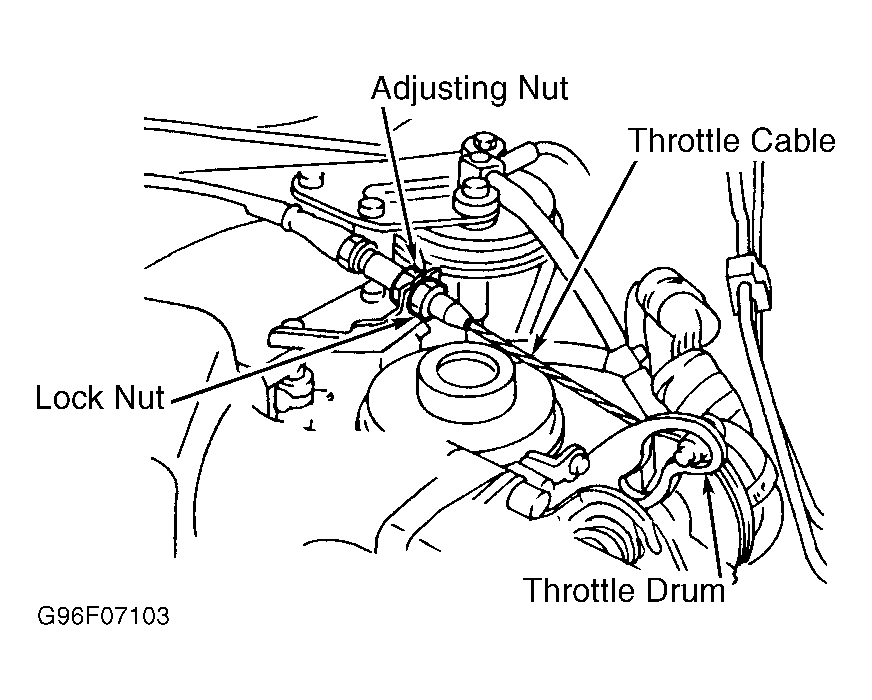

- Start engine and bring to normal operating temperature. Turn engine off. Loosen throttle cable lock nut. See Fig 2 . Tighten throttle cable adjusting nut until throttle drum starts to move. Back off throttle cable adjusting nut 1 1/2-2 turns, and tighten throttle cable lock nut to 69-96 INCH lbs. (8-11 N.m). Check ASCD cable adjustment. See ASCD CABLE .
