Seat Lifting (Front) Function Is Inoperative

If front lifting function is inoperative during both manual and automatic operations, perform the following procedures in order listed:

• Perform self-diagnostics. See SELF-DIAGNOSTIC SYSTEM  .

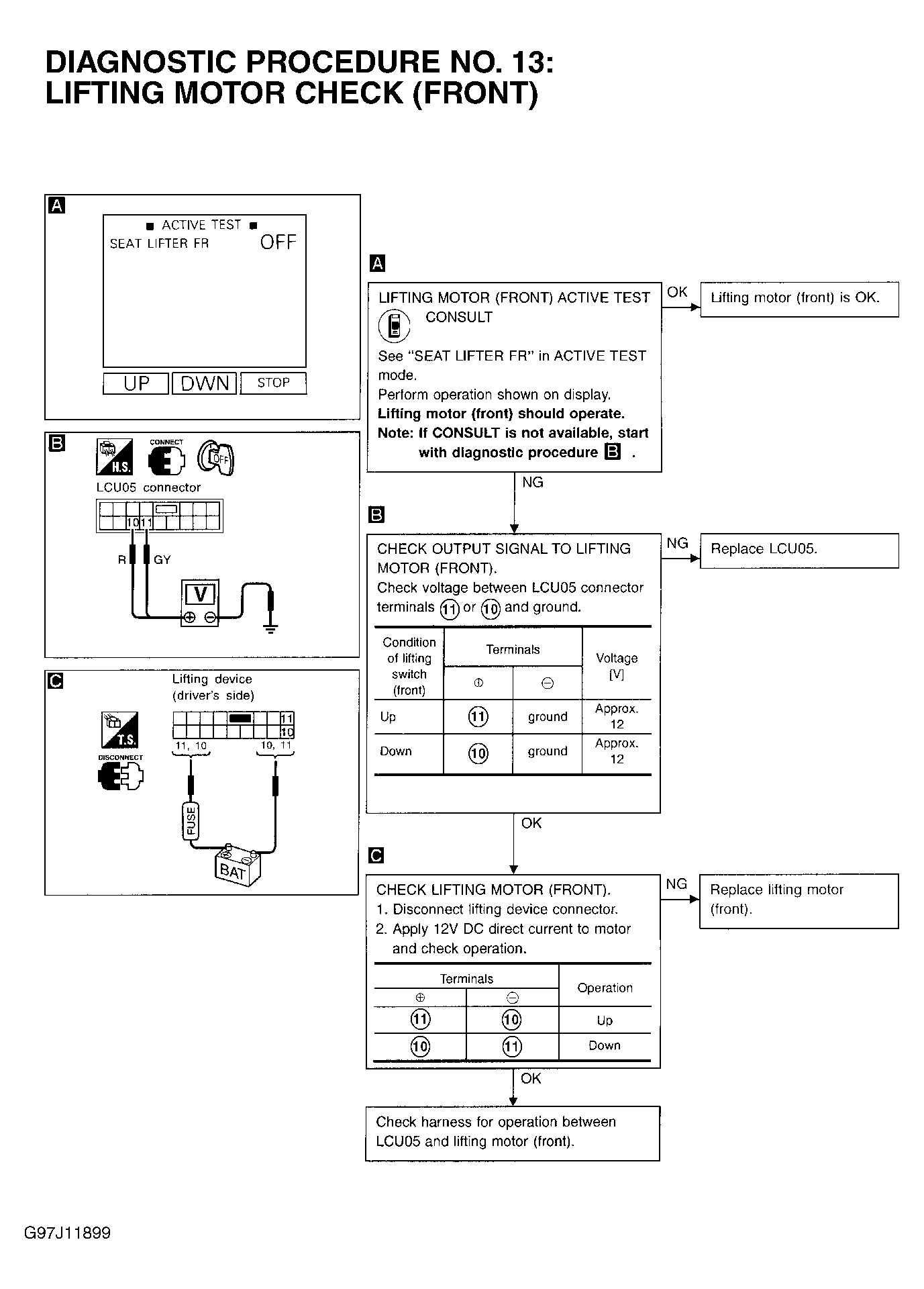

• Test front lifting motor. See Figure .

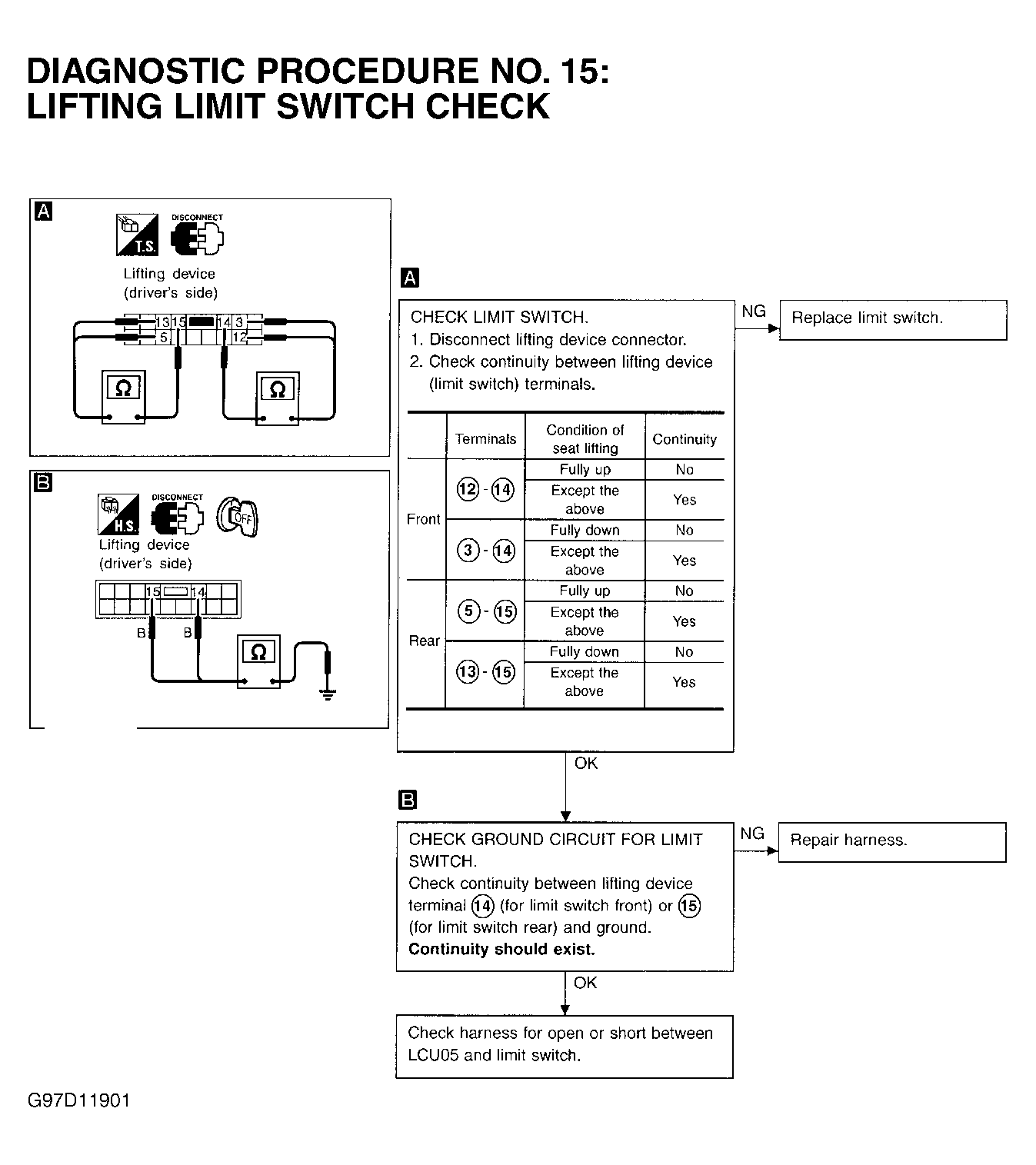

• Test limit switch. See Figure .
