Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G98F63920

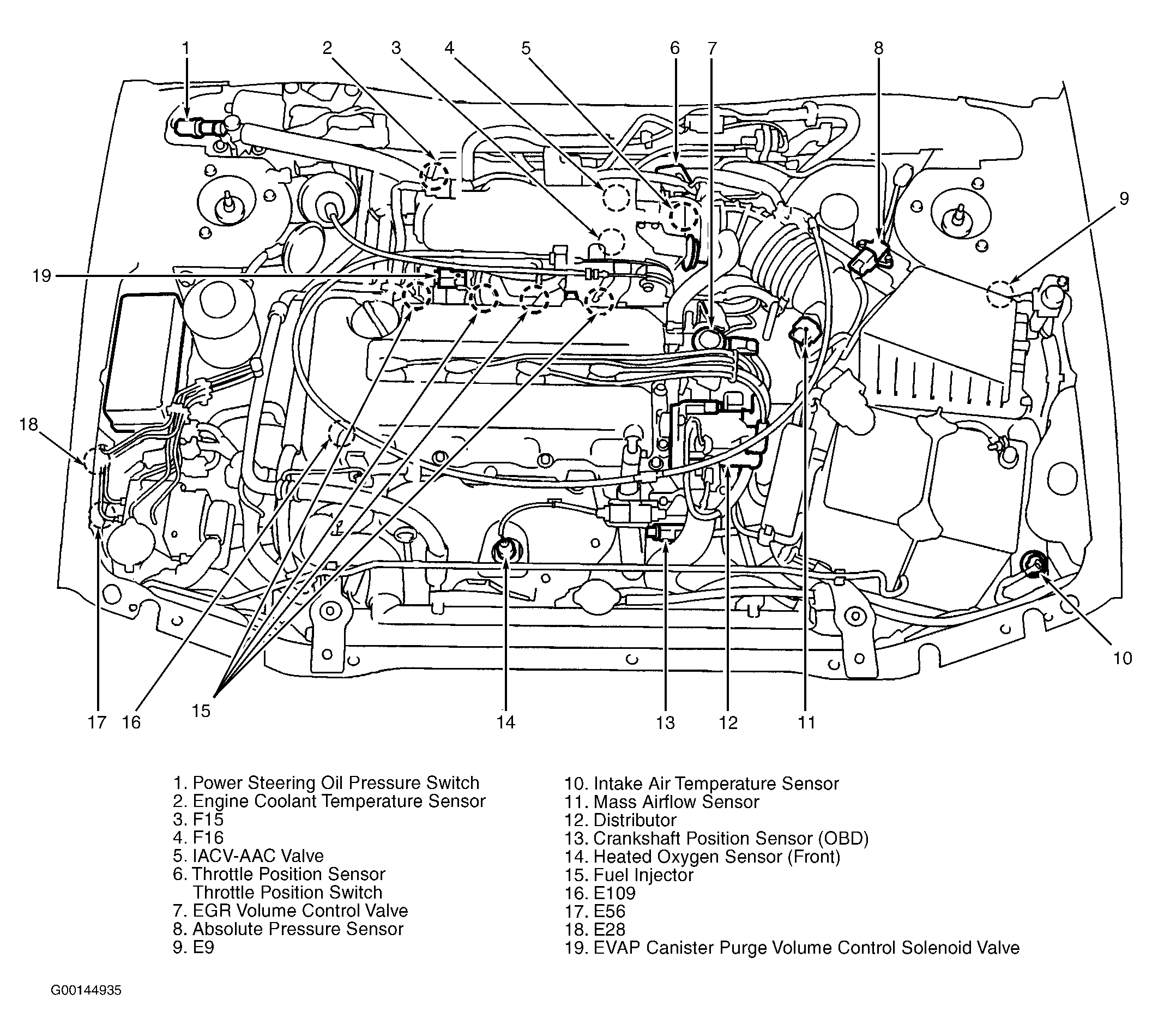

Fig 2: Engine Compartment
G00144935

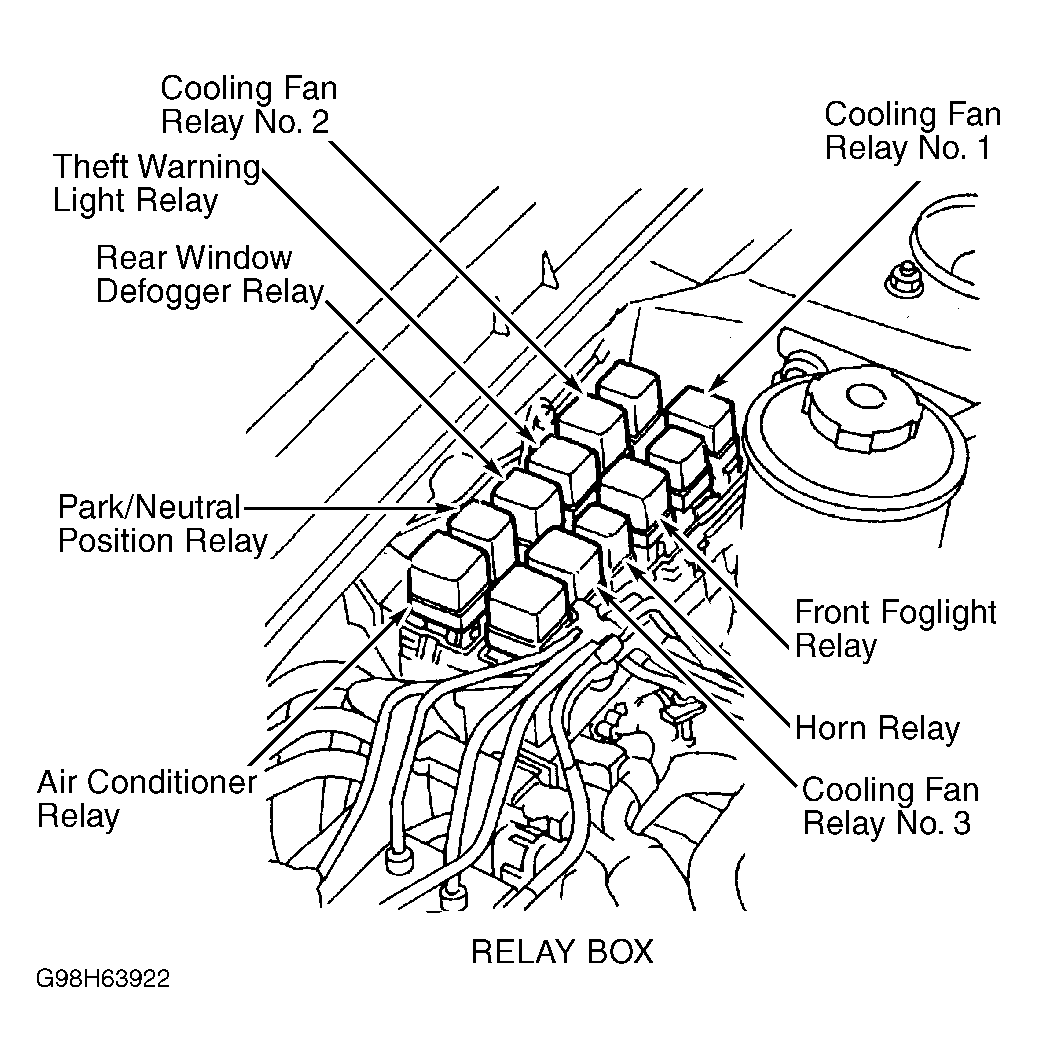

Fig 3: Relay Box
G98H63922
Fig 4: Dash
G00144936
