Valve Body Assembly: Reassembly

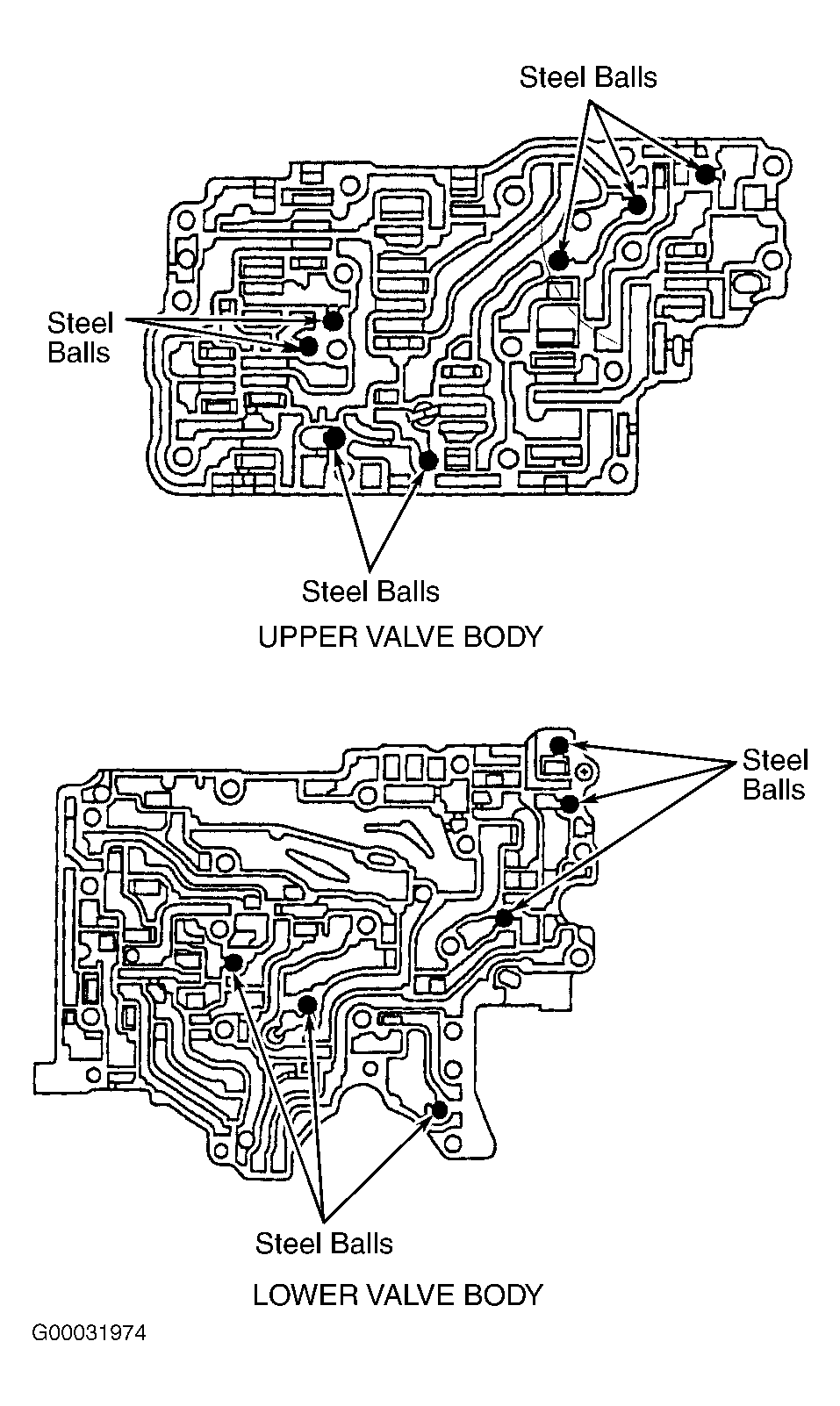

- Place oil circuit of upper valve body face up. Install steel balls in proper locations. See Fig 1
. Using NEW gaskets, install upper separating gasket, upper inter separating gasket and upper separating plate. Install reamer bolts "F" from bottom of upper valve body. See Figure
. Install separating gaskets and separating plates as a set on upper valve body, using reamer bolts as a guide.
- Install pilot filter. Place lower valve body side of inter valve body face up. Install steel balls in proper locations. Install inter valve body on upper valve body, using reamer bolts "F" as a guide. Install check balls and relief valve springs in proper locations in lower valve body. Install lower separating gasket, inter separating gasket and lower separating plate. See Figure
.
- Install support plate bolts "E" from bottom of lower valve body. Install separating gaskets and separating plate as a set on lower valve body using bolts "E" as a guide. Temporarily install support plates on lower valve body. Install lower valve body on inter valve body using reamer bolts "F" as a guide. See Figure
. Tighten bolts to specification. See TORQUE SPECIFICATIONS
.
- Install "O" rings to solenoids and harness terminal connector. Apply ATF to "O" rings prior to installation. Install and snug bolts "B". Install solenoid assembly and line pressure solenoid to lower valve body. Tighten bolts to specification. See TORQUE SPECIFICATIONS
.
