Low-Reverse Brake: Reassembly

Reassembly procedures for low-reverse brake are same as for reverse clutch. Drive plate thickness should be .079" (2.00 mm). Service limit is .070" (1.80 mm). Measure clearance between snap ring and drive plate. See Fig 3 . Specified clearance is .055-.071" (1.40-1.80 mm). Service limit is .110" (2.80 mm). Install correct retaining plate to achieve specified clearance. Retaining plate is available in increments of .008" (.20 mm). See LOW-REVERSE BRAKE RETAINING PLATE SPECIFICATIONS table.
Check low-reverse brake operation. Apply compressed air to oil hole in transaxle case. See Figure and Fig 4 . Ensure retaining plate moves toward snap ring. If retaining plate does not move, "D" ring or oil seal may be damaged.

LOW-REVERSE BRAKE RETAINING PLATE SPECIFICATIONS

Fig 1: Exploded View Of Low-Reverse Brake Clutch

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Removing Low-Reverse Brake Clutch Piston

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Measuring Low-Reverse Brake Clutch Clearance

Courtesy of NISSAN MOTOR CO., U.S.A.

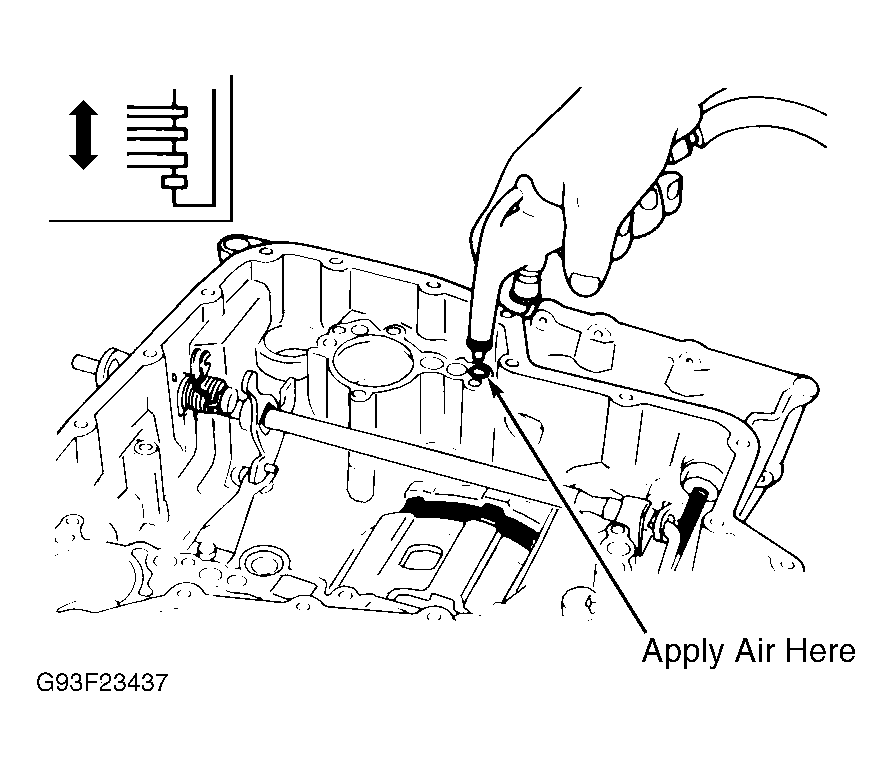

Fig 4: Checking Low-Reverse Clutch Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
