Low-Reverse Brake: Disassembly

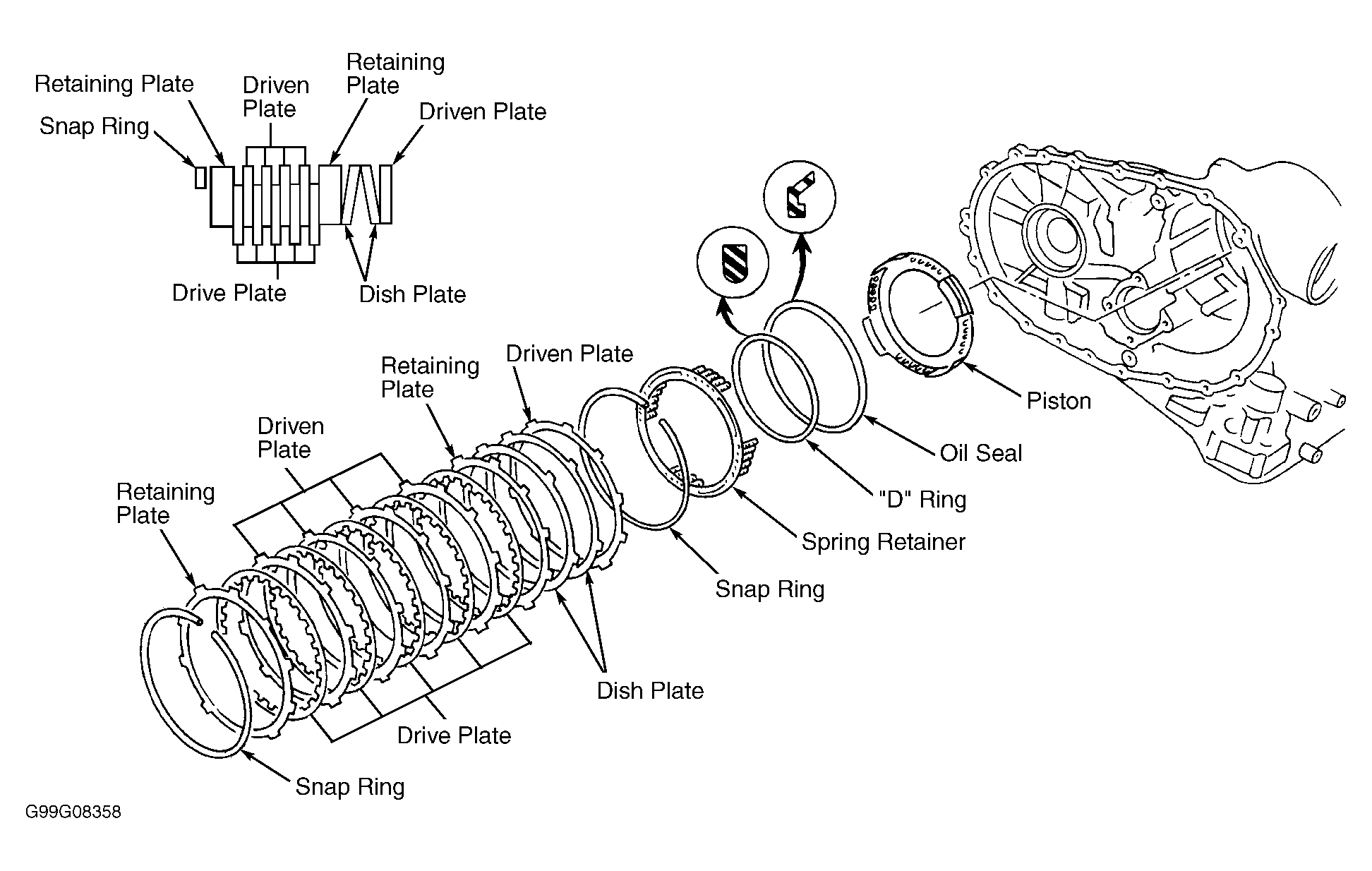

Position transaxle case to obtain access to low-reverse brake snap ring. Remove snap ring. Remove drive plates, driven plates and retaining plate from transaxle case. See Figure . Record number of plates for reassembly reference. Compress return springs and remove snap ring. Remove spring retainer and return springs from transaxle case. DO NOT remove return springs from spring retainer. Apply compressed air to oil hole in transaxle case and remove piston. See Figure . Remove "D" ring and oil seal from piston.
