Component Locations

Relay box is located at passenger's side of engine compartment. For relay locations, see Fig 2 . For circuit wiring diagram, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
Fuse and fusible link box is located at driver's side front of engine compartment. For component identification, see Fig 3 -Fig 5 . For circuit wiring diagram, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.

Fig 1: Locating Engine Compartment Fuse And Fusible Link Box & Relay Box

G98F63920

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Relay Box Components

G98H63922

Courtesy of NISSAN MOTOR CO., U.S.A.

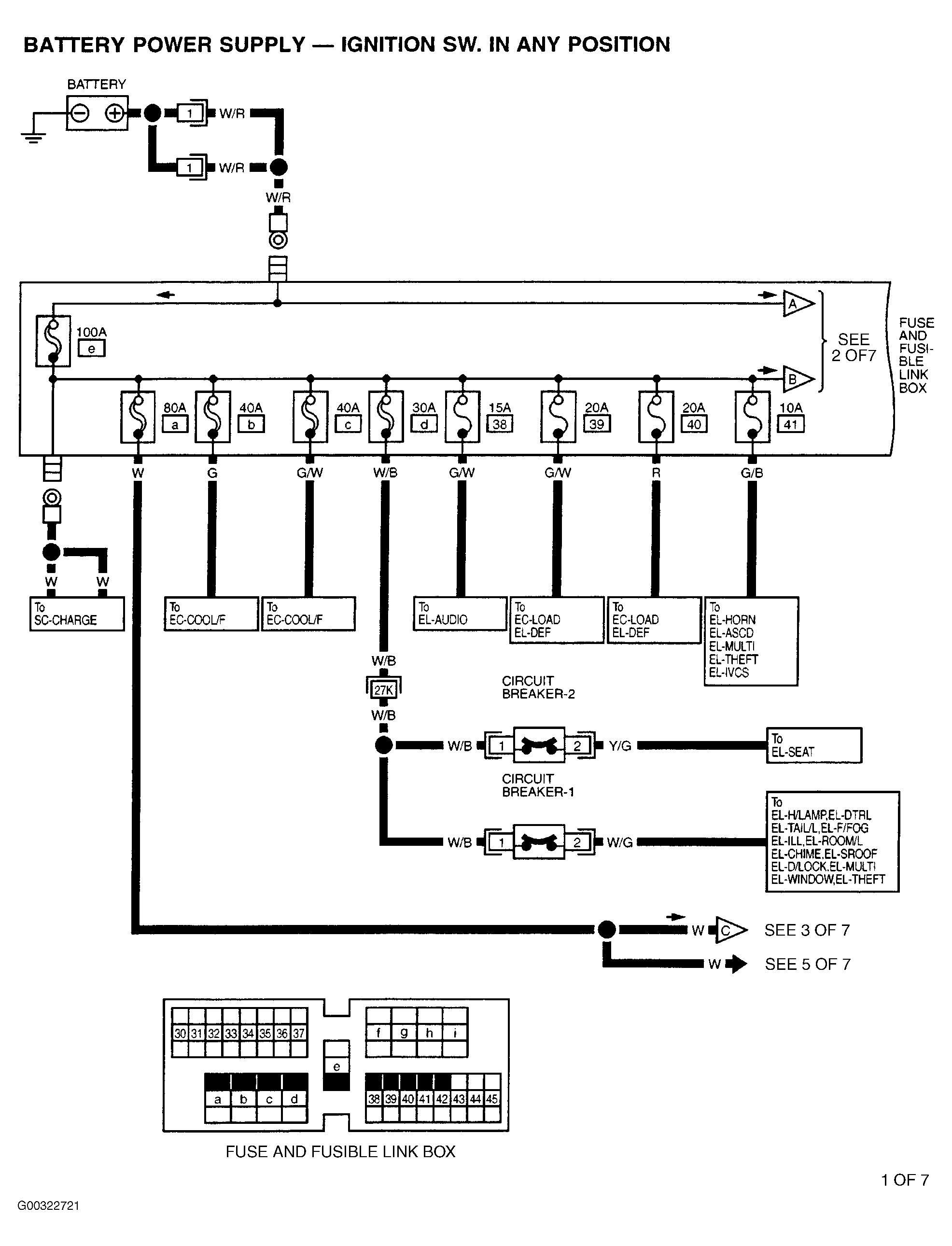

Fig 3: Identifying Circuit Protection Components (1 Of 7)

G00322721

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Circuit Protection Components (2 Of 7)

G00322722

Courtesy of NISSAN MOTOR CO., U.S.A.

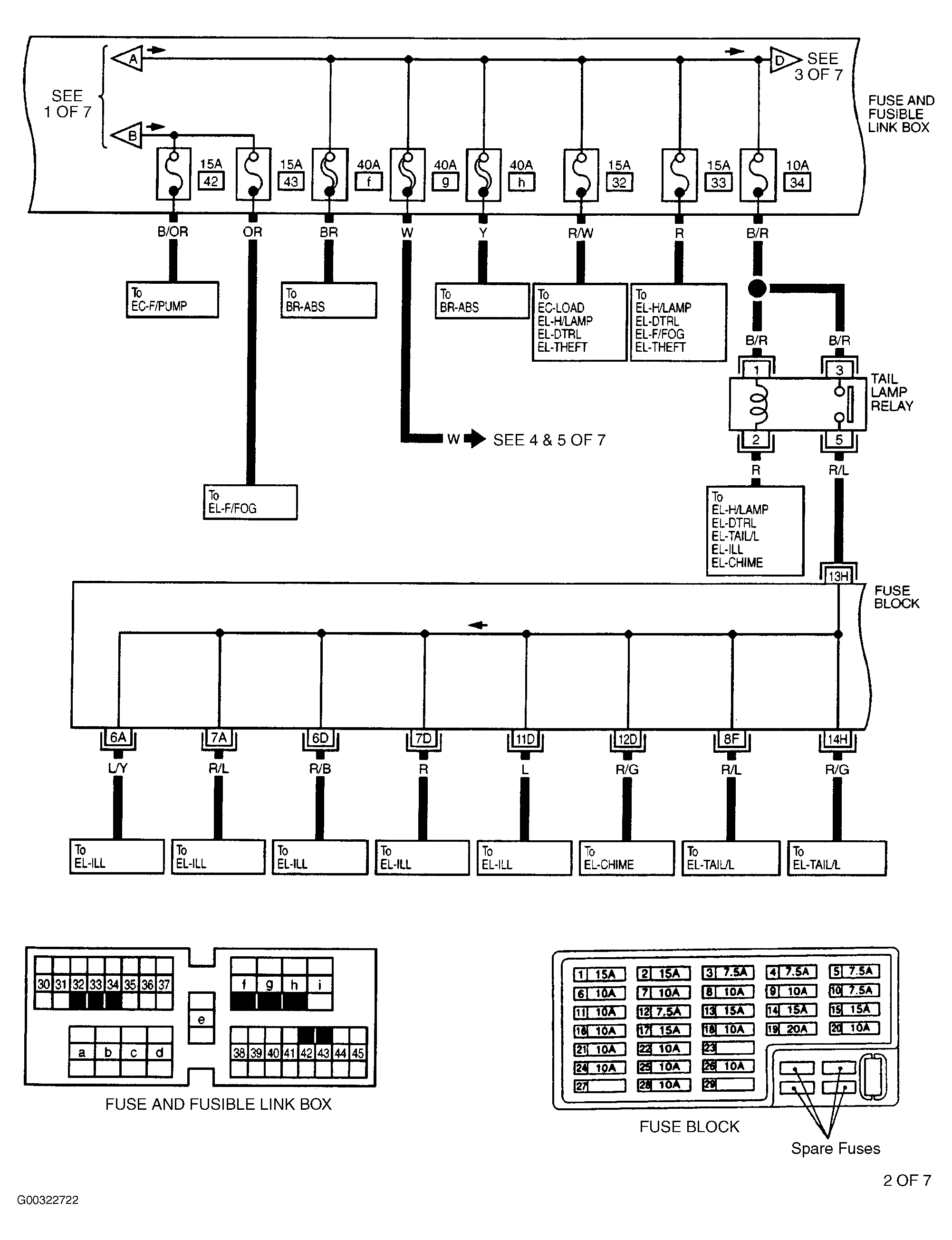

Fig 5: Identifying Circuit Protection Components (3 Of 7)

G00322723

Courtesy of NISSAN MOTOR CO., U.S.A.

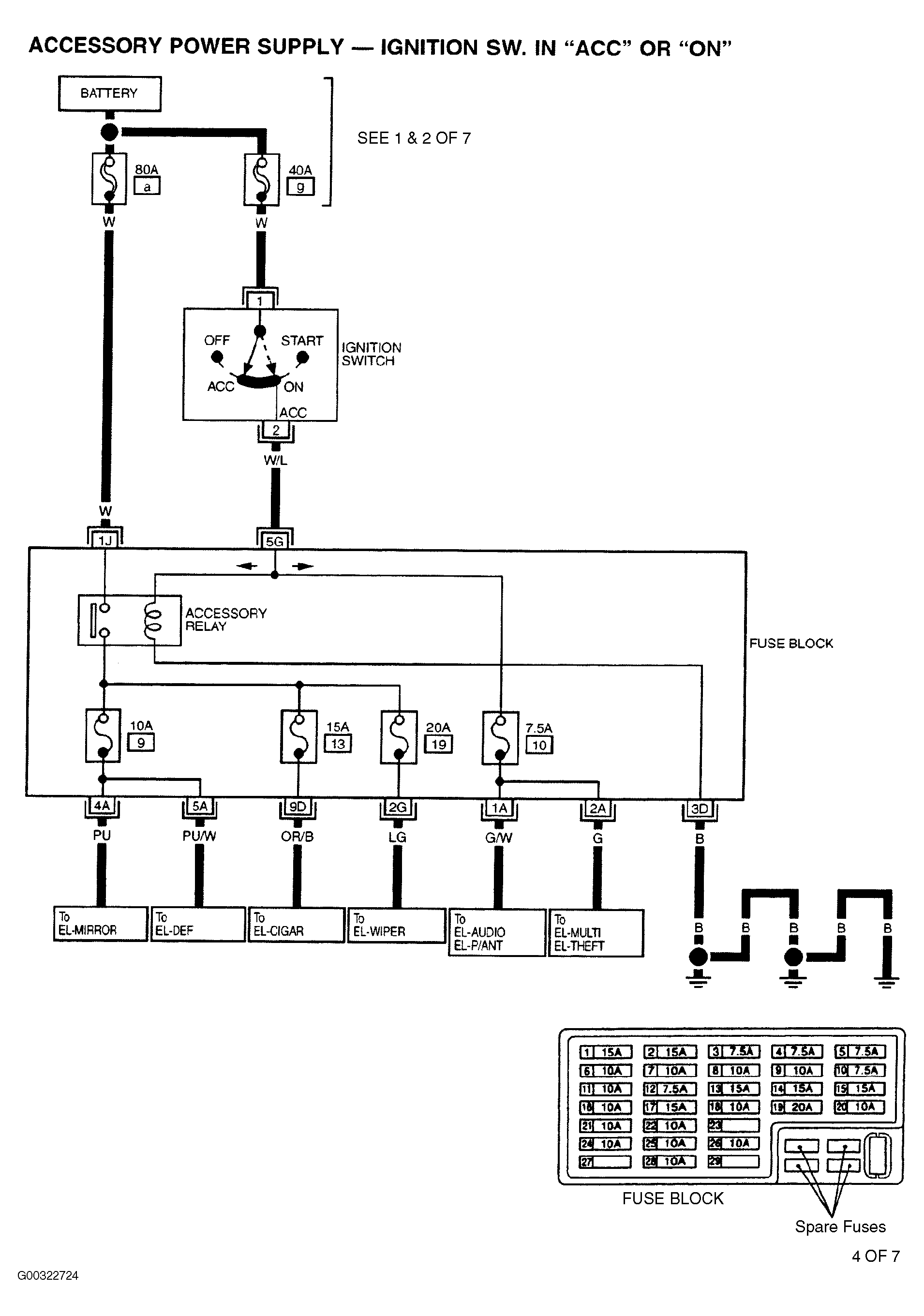

Fig 6: Identifying Circuit Protection Components (4 Of 7)

G00322724

Courtesy of NISSAN MOTOR CO., U.S.A.

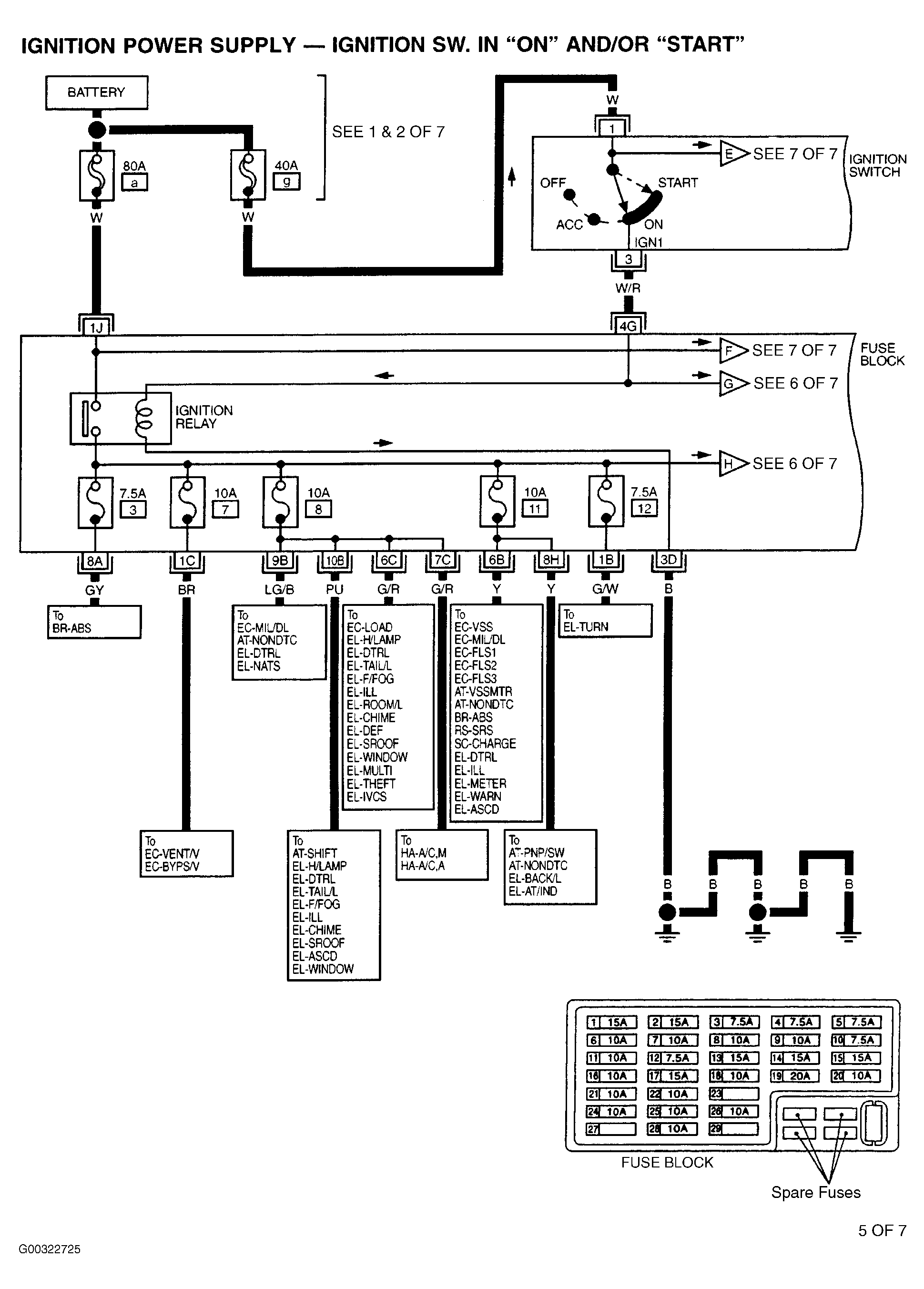

Fig 7: Identifying Circuit Protection Components (5 Of 7)

G00322725

Courtesy of NISSAN MOTOR CO., U.S.A.

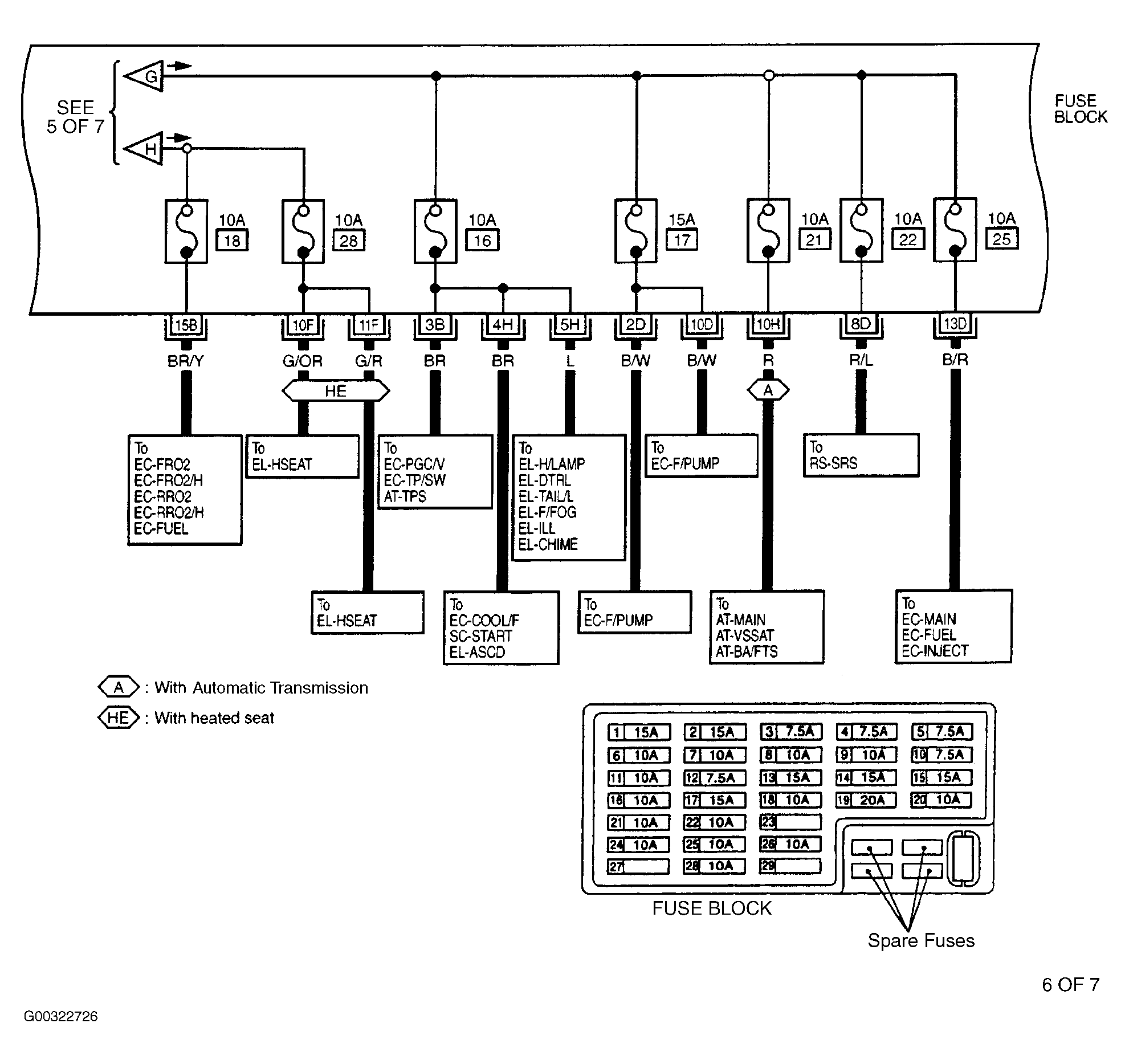

Fig 8: Identifying Circuit Protection Components (6 Of 7)

G00322726

Courtesy of NISSAN MOTOR CO., U.S.A.

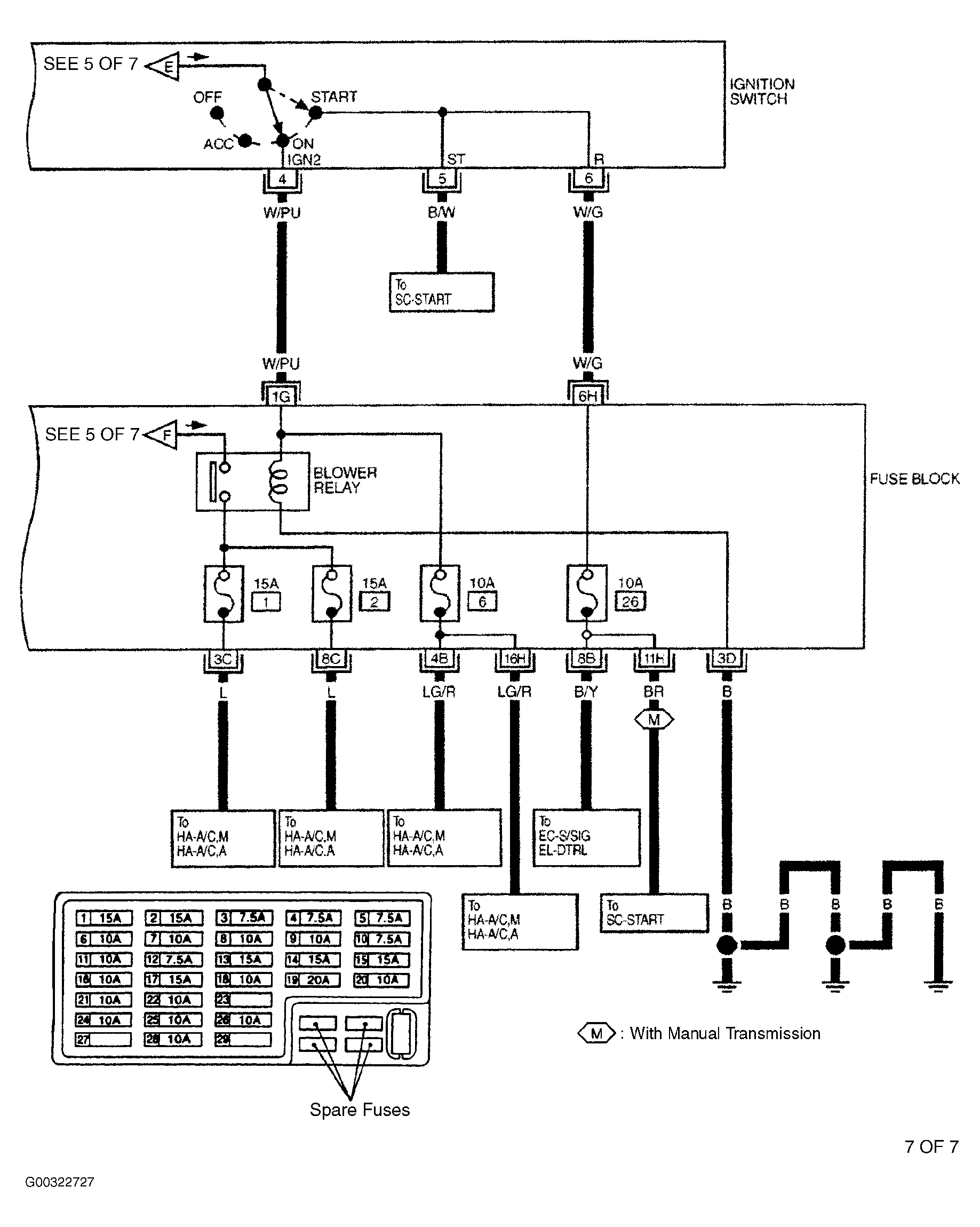

Fig 9: Identifying Circuit Protection Components (7 Of 7)

G00322727

Courtesy of NISSAN MOTOR CO., U.S.A.
