Description & Operation

Anti-theft system is controlled by a Smart Entrance Control Unit (SECU). SECU receives signals from hood switch, trunk switch and door switches. See Fig 1 -Fig 3 .

To set anti-theft system in pre-armed mode, remove ignition key and close trunk, hood and all doors. Lock doors using key or remote controller. The SECURITY light will illuminate for 30 seconds. Armed mode starts after 30 second interval, when SECURITY light flashes in 2.4-second intervals.

To cancel armed mode, unlock and open trunk lid or any door using key or remote controller. SECURITY light will flash every second, indicating system is disarmed.

Alarm will activate (horn sounds and headlights flash) if any of the following conditions occur while system is in armed mode:

• Engine hood or trunk lid is opened using the hood or trunk lid release.
• Any door is unlocked without key or remote controller.
• Tampering with trunk lid or any door key cylinders.

To deactivate anti-theft system, unlock door or trunk using key or remote controller.

Fig 1: Locating Anti-Theft System Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Smart Entrance Control Unit (SECU)

Courtesy of NISSAN MOTOR CO., U.S.A.

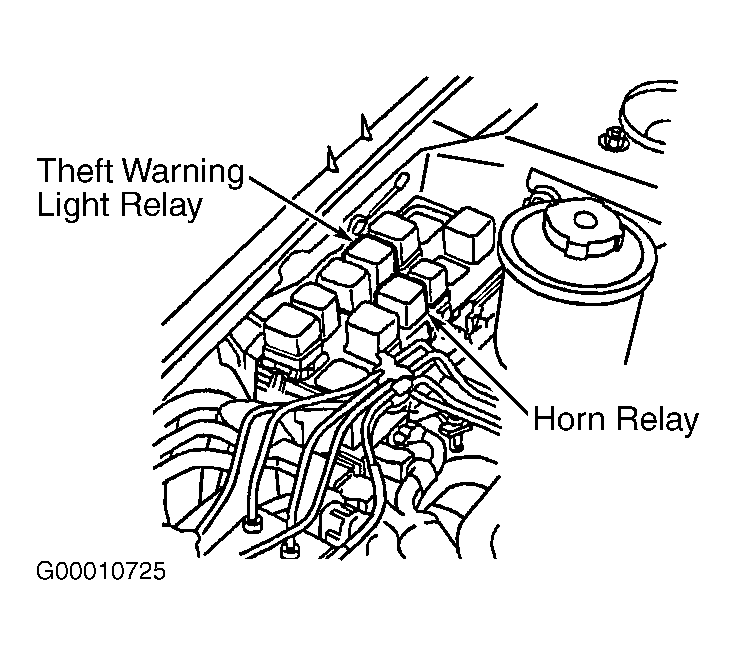

Fig 3: Identifying Anti-Theft System Relays

Courtesy of NISSAN MOTOR CO., U.S.A.
